Product Overview

EVAL-ISOMAX is an integrated dual isoSPI adapter and microcontroller board featuring the MAX32670 high-reliability, ultralow power microcontroller and the ADBMS6822 dual isoSPI transceiver. This board allows multiple ADBMS68xx battery monitors to be connected through daisy-chain configuration. The EVAL-ISOMAX also features reversible isoSPI, which enables a redundant path to the peripheral units. The PCB components and DuraClick connectors are optimized for low electromagnetic interference (EMI) susceptibility and emissions. Applications include IOT battery management, industrial machine vision, power tools, mobile robotics battery management, industrial equipment battery monitoring, adaptive battery type system monitoring, portable energy storage systems, electric 2-wheelers (E2Ws) such as E-scooter, E-bikes Light Electric Vehicles (LEV).

Low-cost integrated monitoring for BMS with on-board MCU and dual isoSPI chip
Demonstrates SPI to isoSPI 2-wire datalinks
Includes two isoSPI ports for reversible isoSPI support
Configurable powering options for LPCM support isoSPI connections through simple DuraClick connectors
Stackable and allows daisy chain of up to eight (8) ADBMS6830BMSW boards
With PC-based software for control and data analysis using Broad Market Browser BMS GUI

Contents

EVAL-ISOMAX board, USB 2.0 cable (A male to micro B male, 1m shielded), isoSPI twisted pair cable.

Product details

Technical Specifications

Kit Application Type

Power Management - Battery

Silicon Core Number

MAX32670, ADBMS6822

Kit Contents

Eval Board MAX32670, ADBMS6822, 1m Type A to Micro Type B Male USB2.0 Cable, 30cm Twisted Pair Cable

SVHC

No SVHC (21-Jan-2025)

Application Sub Type

BMS Battery Monitor

Silicon Manufacturer

Analog Devices

Product Range

-

Other details

Brand	ANALOG DEVICES
Part Number	EVAL-ISOMAX
Quantity	Each
Technical Data Sheet EN

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

Battery Management Development Kits

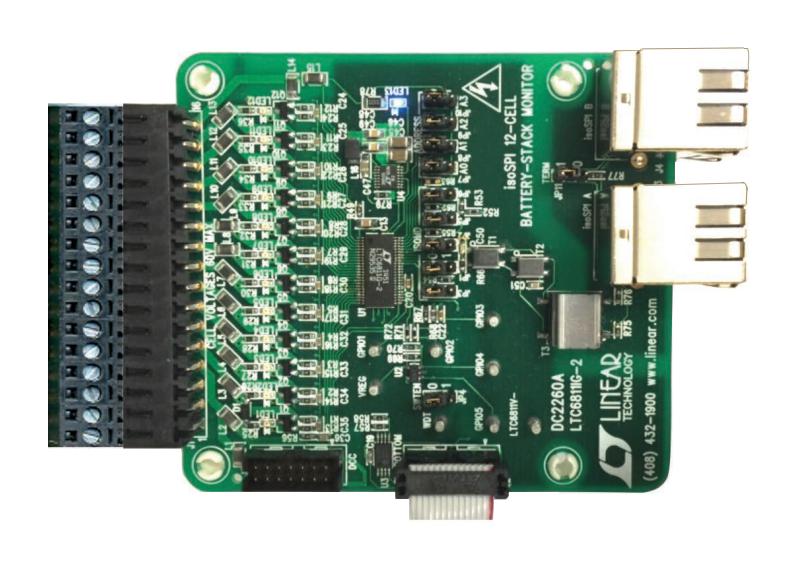

ANALOG DEVICES DC2260A Demonstration Board, LTC6811IG-2#PBF, isoSPI Battery Stack Monitor, Addressable
