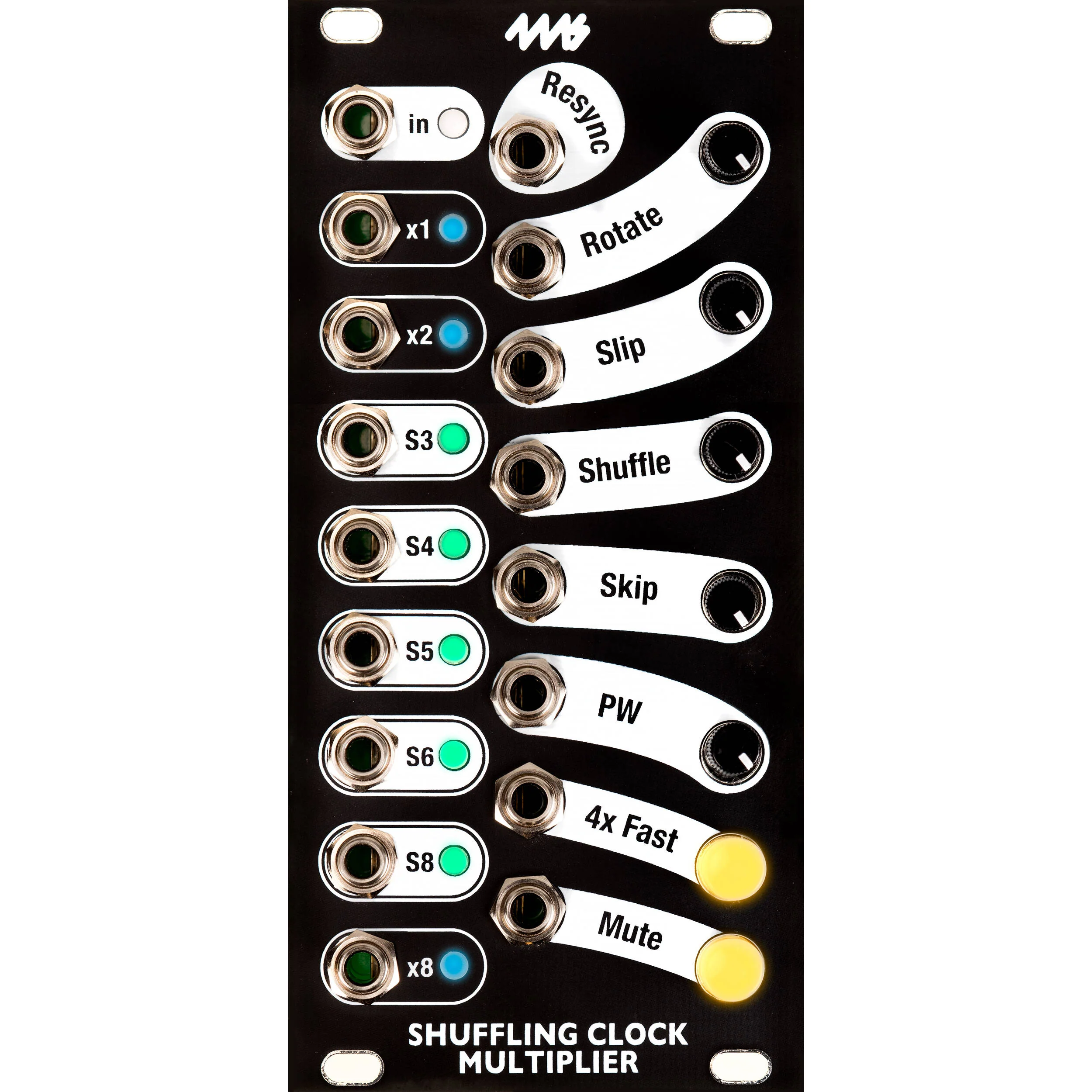

4ms SCM Plus Clock Multiplier Eurorack Module (12 HP)
4ms SCM+ Overview
Create dynamic clocking patterns that cycle through chaos with the 4ms SCM Plus, a clock multiplier with eight gate outputs and complex beat manipulation features in a 12HP Eurorack module. The SCM+ combines the functionality of the original Shuffling Clock Multiplier (SCM) with the SCM Breakout (SCMBO) with higher precision hardware.
The module features five slipped/shuffled/skipped clock outputs and three steady clock outputs (x1, x2, x8). The five knobs with CV control offer a variety of functions including rotate, slip, shuffle, skip, and PW. Additionally, a 4x Fast button with gate trigger multiplies all outputs by x4, while the Mute button and gate trigger stop all outputs. The SCM+ ships with a ribbon power cable and mounting screws.
- Eight gate outputs, each multiplying up to x32
- Five slipped/shuffled/skipped clock outputs and three steady clock outputs
- Five knobs with CV jacks:
- Rotate shifts multiply-by amount
- Slip causes particular beats to land ahead in time
- Shuffle selects which beats are affected by Slip
- Skip omits certain beats in a pattern
- Pulse Width controls width of output pulses
- Resync trigger input resets the slip/shuffle/skip counters
- 4x Fast button and gate jack increase multiply-by amount by a factor of four
- Mute button and gate jack stop all outputs
- Save Clock feature restores last saved tempo when powering up
- Clock Bus jumper allows module to receive tempo from other modules over the power bus
- Free Run jumper allows unit to operate without an external clock
- LED dimmer trimpot allows for custom LED brightness
- 12 HP Eurorack format module
- Maximum Depth: 0.95" (24mm)
- Includes power ribbon cable with 16-pin Eurorack power header
- Power consumption: +12V: 52mA, -12V: 15mA
In the Box
- 4ms SCM Plus Clock Multiplier Eurorack Module (12 HP)
- Eurorack Ribbon Power Cable
- Set of Mounting Screws
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Additional Resources
4ms SCM+Specs
| Sound Generation |
Digital
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm TS Gate Output
5x 1/8" / 3.5 mm TS CV Input 4x 1/8" / 3.5 mm TS Gate/Trigger Input |
| Patch Points |
No
|
| Eurorack Current Consumption |
52 mA on +12 V Rail
15 mA on -12 V Rail |
| Horizontal Pitch |
12 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Digital
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
Yes
|
| Built-In Speaker |
Yes
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
No
|
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm TS Gate Output
5x 1/8" / 3.5 mm TS CV Input 4x 1/8" / 3.5 mm TS Gate/Trigger Input |
| Control Voltage Level |
Trigger In: +2.5 V
Gate Out: 12 V CV In: 0 to +3.3 V CV In: -5 to +5 V |
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
52 mA on +12 V Rail
15 mA on -12 V Rail |
| Color |
Black
|
| Horizontal Pitch |
12 HP
|
| Included Accessories |
No
|
| Package Weight |
0.39 lb
|
| Box Dimensions (LxWxH) |
5.7 x 4.8 x 3.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
