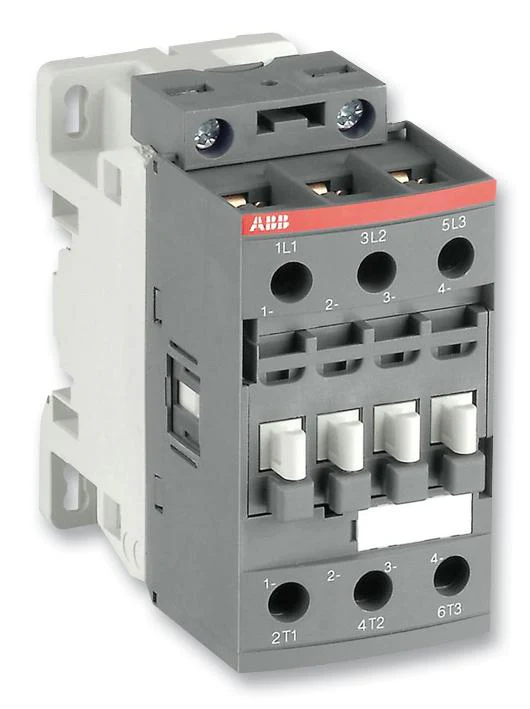

ABB AF16Z-30-01-21 Contactor 18 A DIN Rail 60 V 3NO / 1NC 3 Pole 7.5 kW

The AF16Z-30-01-21 is a 3-pole 7.5kW AC/DC operated Contactor with low consumption and screw terminals for controlling power circuits. It is mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. It includes an electronic coil interface providing reduced pull-in and holding consumption, particularly for AC control circuits. It offer extended operating limits and is suitable worldwide for different control voltages. It can withstand short voltage dips and voltage sags (SEMI F47-0706 compliance). It has built-in surge protection and do not require additional surge suppressors. The built-in NC auxiliary contact is a mirror contact in compliance with annex F of IEC 60947-4-1.

• Can manage large control voltage variations

Applications

Industrial, Motor Drive & Control

Other details

Brand	ABB
Part Number	AF16Z-30-01-21
Quantity	Each
Technical Data Sheet EN
