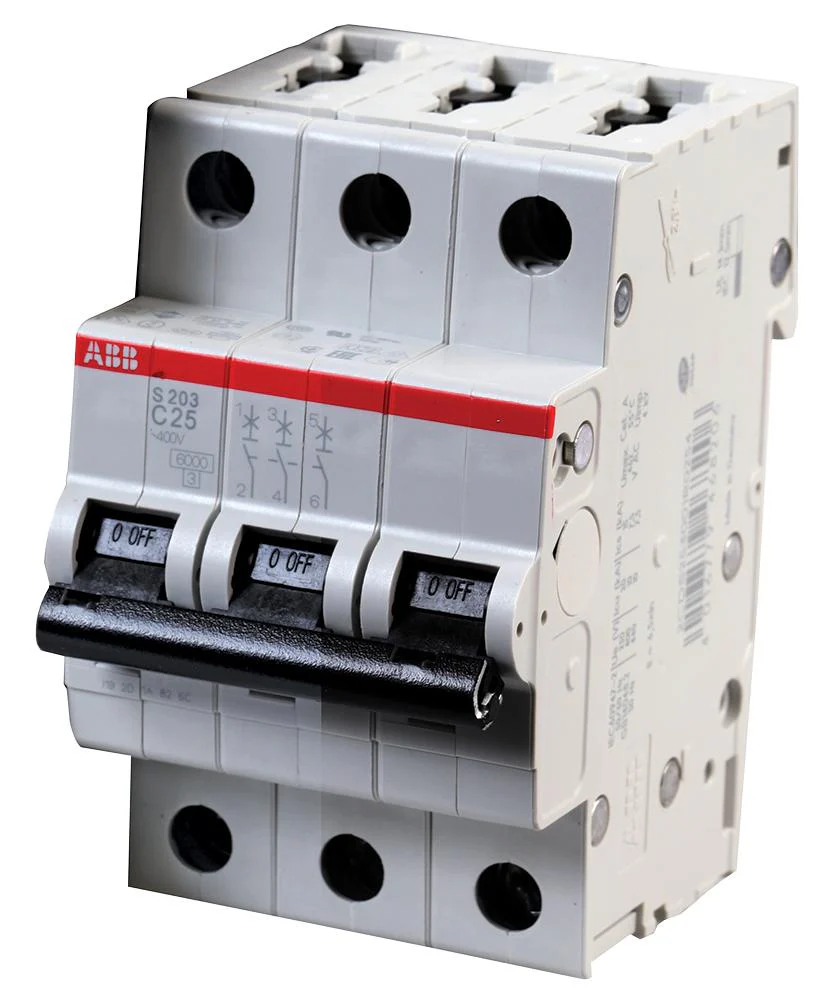

ABB S203-C25 Thermal Magnetic Circuit Breaker Miniature C Curve System Pro M Compact S200 Series 25 A

The System Pro M Compact S200 series miniature Circuit Breaker provides state-of-the-art safety and comfort. They stand out due to their high performance and the wide range of accessories and approvals. It has unique patented twin terminals with captive screws and an increased opening for cables up to maximum 35mm², finger-proof (IP20).

• Clear contact position indication in red/green (real CPI)
• Busbar slot in the back for best visibility during installation
• High performance at an increased rated voltage
• 1P, 2P, 3P, 4P, 1P+N, 3P+N poles Available

Applications

Industrial, Aerospace, Defence, Military, Safety

Other details

Brand	ABB
Part Number	S203-C25
Quantity	Each
Technical Data Sheet EN
Certificate of Conformity EN
