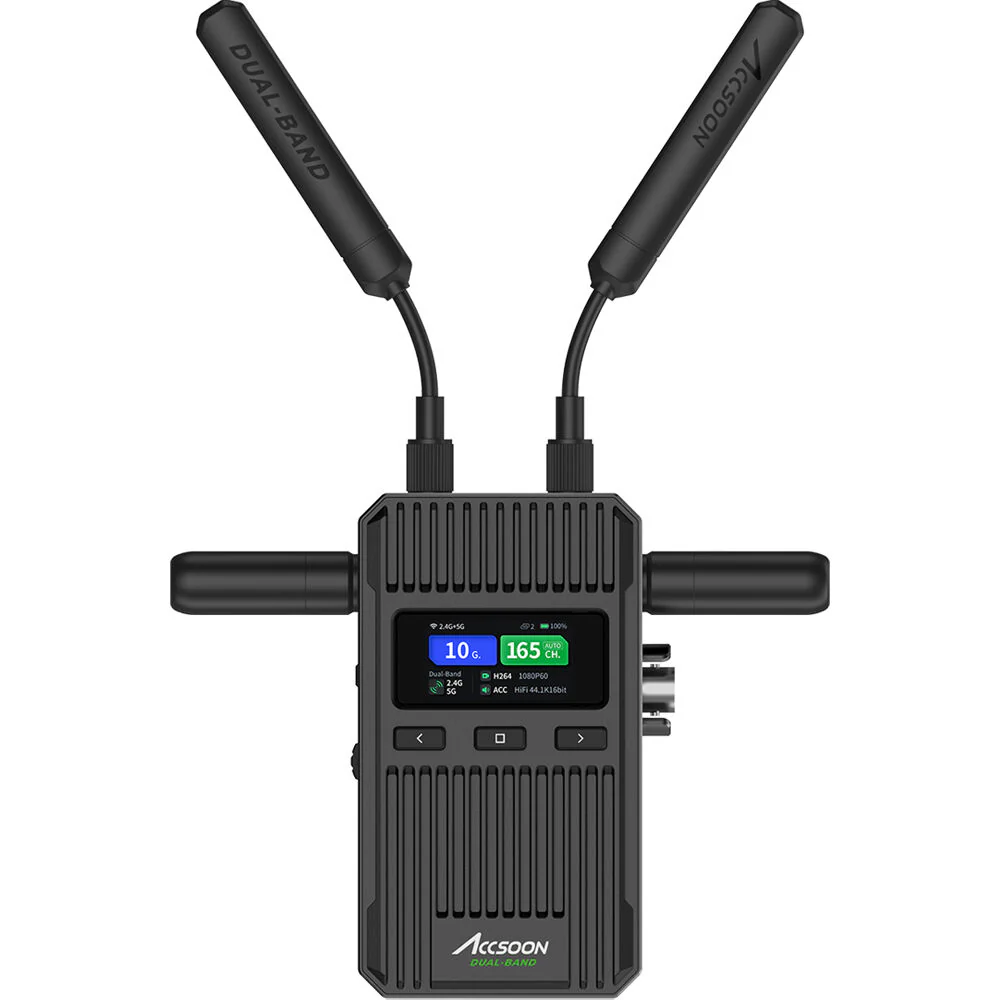

Accsoon CineView 2 SDI/HDMI Wireless Video Transmitter

Accsoon CineView 2 SDI/HDMI Wireless Video Transmitter

Accsoon CineView 2 Overview

CineView 2 SDI Installation (1/3) | Quick Walk Through [Guide & Tutorial]
CineView 2 SDI Settings (2/3) | Quick Walk Through [Guide & Tutorial]
CineView 2 SDI APP Connection (3/3) | Quick Walk Through [Guide & Tutorial]
By Photo's
Jennifer Hahn

Add a wireless transmitter to your CineView transmission system with this CineView 2 SDI/HDMI Wireless Video Transmitter from Accsoon. The transmitter has been updated from previous models with an even smaller and lighter form factor and a greater range. With the CineView 2, you can send the signal directly to iOS and Android devices simultaneously over distances up to 1500' with only a 50ms delay, and you can still transmit to any mix of four receivers and iOS/Android smartphones and tablets. It is also cross-compatible with all CineView models, so you can transmit to any CineView receiver you'd like.

Like previous models, the CineView 2 allows you to send a 1080p60 camera signal to an optional CineView 2 receiver plus mobile devices. It can input up to 1080p via SDI and up to UHD/DCI 4K60 video via HDMI, and it also features an HDMI loop output to send to a local monitor. Its dual-band technology allows you to transmit over 2.4 and 5 GHz signals for stable, high-quality video.

The transmitter is easy to set up and pair, making setup quick and easy. The free-to-download companion app installs on a tablet or smartphone. The transmitter features both DC and USB-C power input, and it also supports an L-series battery.

Stable, Long-Range Transmission
Expanding on Accsoon's 2.4 and 5 GHz dual-band technology and featuring an all-new antenna design, the CineView 2 can seamlessly transmit 1080p60 video and audio signals across a 1500' line-of-sight range, all while maintaining a low latency of under 50ms.
Versatile Input and Output
You can input up to UHD/DCI 4K60 video via the HDMI input and up to 1080p60 video via the SDI input. An HDMI loop output provides local monitoring.
Monitor with up to Four Devices
Each CineView 2 transmitter can wirelessly send the video to any combination of dedicated CineView receiver units and smart devices (both iOS and Android), totaling up to four.
Quiet Design
The classic CineView design ensures efficient heat dissipation and quiet shooting with no fan noise.
Cross-Compatible
CineView 2 units are compatible with all current CineView SE, HE, and Quad models, allowing users to mix and match as required.
Multiple Power Options
You can power the unit using the 2.1mm DC barrel input, 5V USB-C input, or L-series battery plate on the back.
Full-Color LCD
The bright 1.47" full-color LCD provides all the info you need about inputs, transmission bands, and battery life.
Accsoon SEE App
The Accsoon SEE app for Android and iOS provides numerous image tools, including grayscale, histogram, LUTs, mirror, zebra, false color, overlay, waveform, audio levels, focus peaking, vectorscope, grids, de-squeeze, and more.
UPC: 664918772390

Items Included

  • Accsoon CineView 2 SDI/HDMI Wireless Video Transmitter
  • Shoe Mount
  • Limited 1-Year Manufacturer Warranty

Additional Resources

    Accsoon CineView 2 Specs

    Key Specs
    Video I/O
    1x HDMI (Unspecified Signal) Input
    1x BNC (HD-SDI) Input
    1x HDMI (Unspecified Signal) Output
    Embedded Audio
    HDMI/SDI
    Latency
    < 50 ms
    Video Format
    SDI/Wireless
    1080p: 60/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    HDMI
    DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    Battery Type
    1x L-Series
    Power Consumption
    6 W
    Mounting
    1x 1/4"-20 Female (Bottom)
    1x Cold Shoe (Bottom)
    Inputs/Outputs
    Antenna I/O
    4x RP-SMA Female
    Video I/O
    1x HDMI (Unspecified Signal) Input
    1x BNC (HD-SDI) Input
    1x HDMI (Unspecified Signal) Output
    Embedded Audio
    HDMI/SDI
    Audio I/O
    No
    Power I/O
    1x Barrel (16.8 VDC) Input
    1x USB-C (3 A / 5 VDC) Input
    Wireless
    Wireless Range
    1500' / 457.2 m
    Frequency Range
    2412 to 2472 MHz
    5180 to 5580 MHz
    5660 to 5825 MHz
    Latency
    < 50 ms
    RF Power
    20 dBm
    Wi-Fi
    Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support
    Bluetooth
    No
    Mobile App Compatible
    Yes: Android & iOS
    App Name: Accsoon SEE
    Cellular Support
    No
    Format Support
    Video Format
    SDI/Wireless
    1080p: 60/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    HDMI
    DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    Audio Format
    2-Channel 24-Bit 48 kHz PCM Audio
    Timecode Support
    No
    Power
    Input Power
    7.4 to 16.8 VDC
    Battery Type
    1x L-Series
    Power Consumption
    6 W
    Mounting
    Mounting
    1x 1/4"-20 Female (Bottom)
    1x Cold Shoe (Bottom)
    General
    Environmental Resistance
    No
    Operating Conditions
    14 to 104°F / -10 to 40°C
    Material of Construction
    Aluminum
    Dimensions
    4.2 x 2.4 x 1.1" / 106.5 x 60 x 27.5 mm
    Weight
    7.41 oz / 210.00 g
    Packaging Info
    Package Weight
    1 lb
    Box Dimensions (LxWxH)
    6.5 x 3.9 x 2.3"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $465.75
    Accsoon CineView 2 SDI/HDMI Wireless Video Transmitter—
    $465.75

    More Images

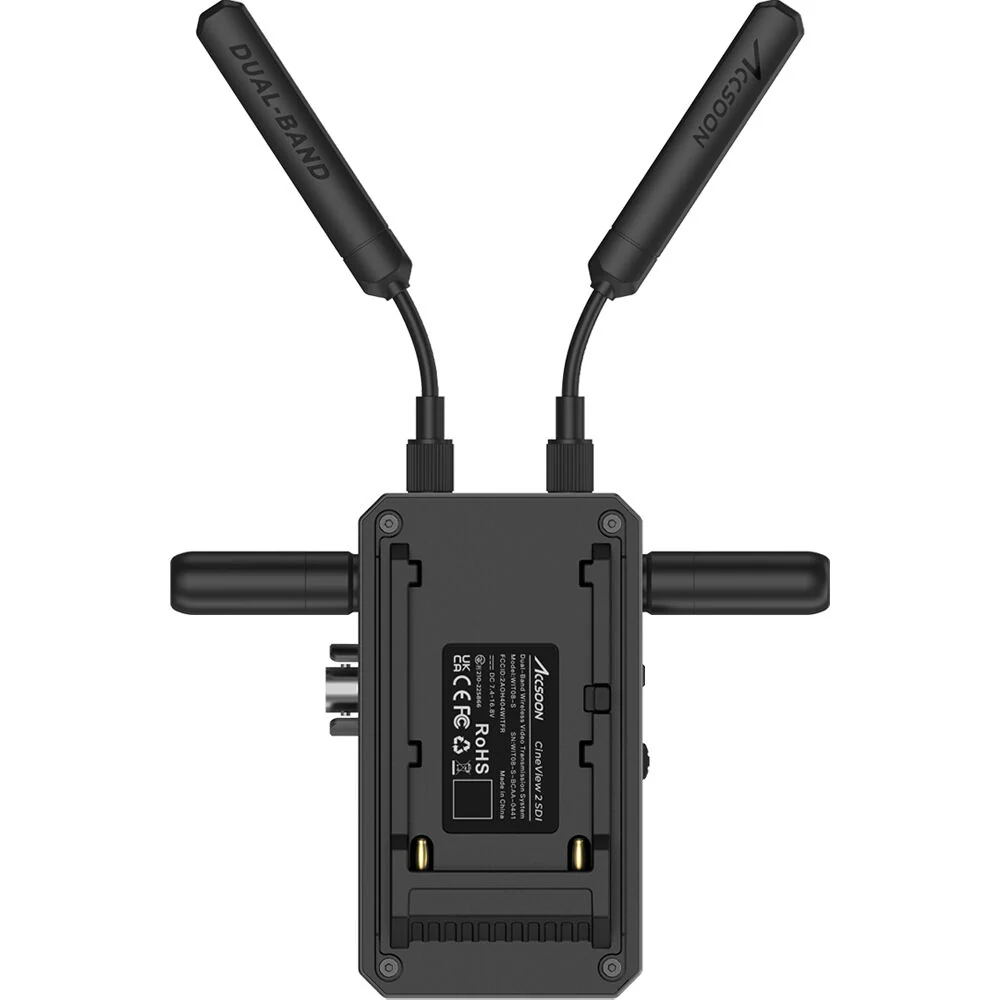

    Accsoon CineView 2 SDI/HDMI Wireless Video Transmitter - Image 2
