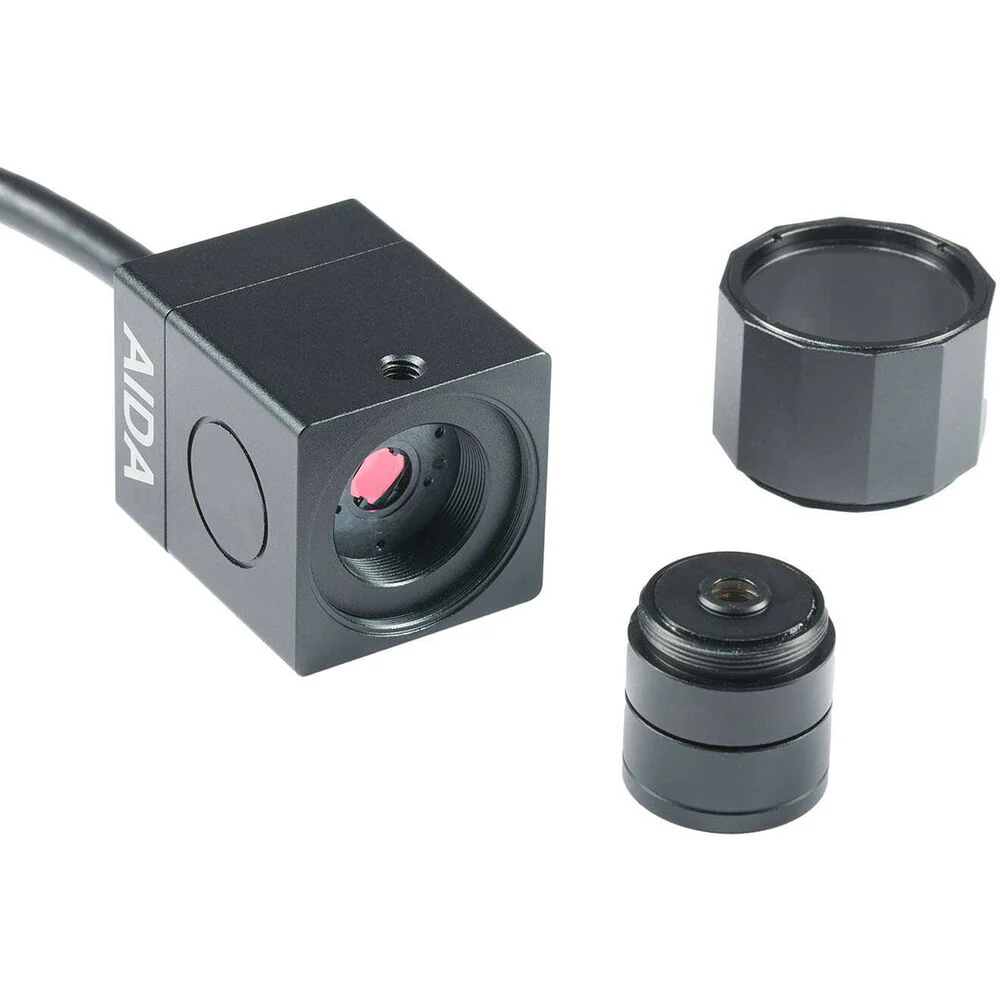

AIDA Imaging Full HD HDMI IP67 Weatherproof Camera with TRS Stereo Audio Input
AIDA Imaging HD-100A-IP67 Overview
Capture 1080p60 video in surveillance, broadcasting, and other applications where a small form factor is ideal using this Full HD HDMI IP67 Weatherproof Camera with TRS Stereo Audio Input from AIDA Imaging. The camera features a 1/3" CMOS image sensor and a C/CS mount with an included 4mm lens. An integrated 6' breakout cable facilitates the camera's HDMI 1.3 output connection and 3.5mm TRS stereo input for embedded audio. Control over the camera can be achieved via RS-485 VISCA and OSD. The camera itself is IP67 rated and includes a weatherproof cap to protect the sensor when not in use. Power is delivered via an included 12 VDC power supply.
- Advanced digital image processor utilizes WDR, white balance, and noise reduction
- Motion-compensated temporal noise reduction filter prevents blur
- Black level setup provides better color transition from digital to analog
- Auto white balance and shutter speed for optimized performance
- C/CS lens mount compatible with auto-iris lenses
- Built-in OSD controls for customizable image settings
- 3.5mm TRS stereo audio input for embedded audio over HDMI
- Weatherproof cap and cabling with IP67 rating
- 6' long breakout cable
In the Box
- AIDA Imaging Full HD HDMI IP67 Weatherproof Camera with TRS Stereo Audio Input
- 4mm Lens
- Sensor Cap
- 12 VDC Power Supply and Socket Adapters
- Limited 2-Year Manufacturer Warranty
AIDA Imaging HD-100A-IP67 Specs
| Video I/O |
1 x HDMI 1.3 Output
|
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Line/Mic Input
|
| Power Source |
AC Adapter with Power Brick
|
| DC Input Power |
9 to 15 VDC
|
| Power Consumption |
6 W
|
| Environmental Protection |
Advertised as Weather Resistant to 3' / 0.9 m with Included Housing
*Manufacturer Testing: IP67 |
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Mounting |
2 x 1/4"-20 Thread
|
| Color |
Black
|
| Cable Length |
6' / 1.8 m
|
| Dimensions |
2 x 1.5 x 1.5" / 50.5 x 39 x 39 mm (With Lens)
|
| Weight |
6.3 oz / 180 g
|
| Package Weight |
1.94 lb
|
| Box Dimensions (LxWxH) |
11 x 6.4 x 4.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
