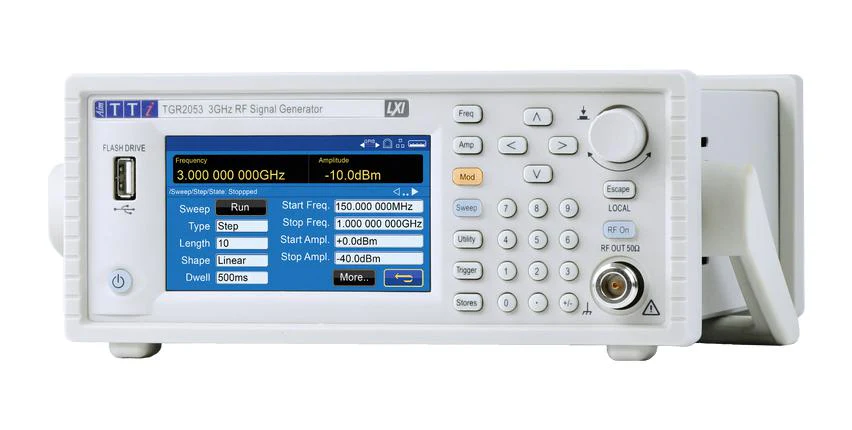

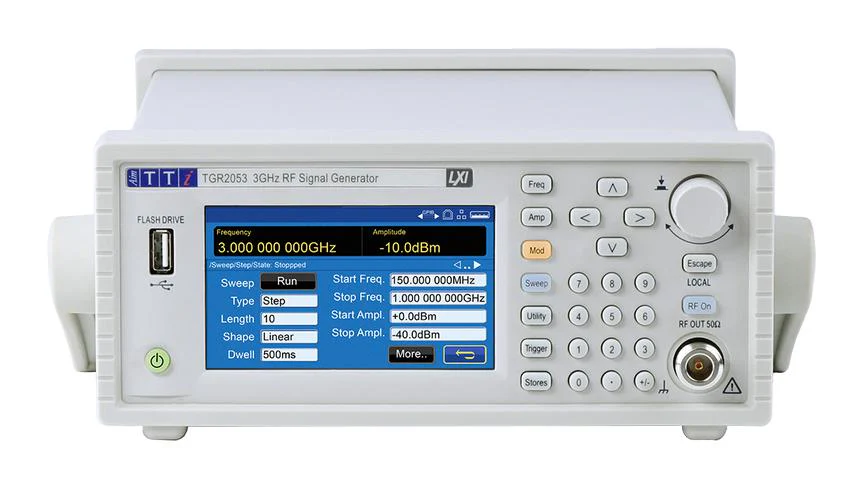

AIM-TTI Instruments TGR2053 TGR2053 TGR Series
- High signal purity, phase noise <-117dBc/Hz (typical) at 1GHz output and 10kHz offset
- Amplitude range of -127dBm to +13dBm
- 0.1dBm amplitude setting resolution
- Internal or external analogue modulations (AM, FM, PM)
- Amplitude can be set in dBm, dBµV or in linear Volts.
- Internal or external digital modulations - ASK, OOK, FSK, 3FSK, 4FSK, GFSK, MSK, GMSK, HMSK and PSK with U01 option
- Modulation synchronisation
- Fast amplitude and/or frequency sweeps with comprehensive triggering
- 5ms sweep settling time
- 1ppm frequency accuracy, <1ppm drift in first year
- Modulation waveform output on the rear panel
- Internal waveforms include: Sine, Square, Ramp, Triangle, PRBS (various lengths) and user-defined pattern
- Simple operation with the colour touch screen
- Programmable via USB, LAN (LXI) and GPIB (optional), SCPI compatible
Other details
| Brand | AIM-TTI INSTRUMENTS |
| Part Number | TGR2053 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
