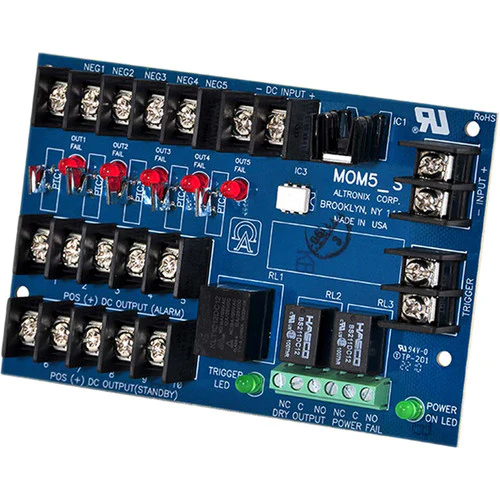

ALTRONIX 5-Output Power Distribution Module
ALTRONIX MOM5 Overview
The MOM5 multi output power distribution module converts one (1) non-power limited DC voltage input to five (5) power limited outputs. Each output will route power to a variety of access control hardware and devices which includes Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both fail-safe and fail-secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay will enable HVAC Shutdown, Elevator Recall or trigger auxiliary devices.
- 12VDC or 24VDC selectable output
- Current limit is 2 amp
- Five (5) PTC protected outputs
- Class 2 Rated power limited outputs
- Provides power for fail safe and/or fail secure locking devices
- Fire Alarm Panel or Access Control System trigger inputs
- NO or NC supervised trigger input and polarity reversal trigger input (.4 amp draw from FACP)
- Red LED's indicate condition of each power output
- Power & input trigger LED's
In the Box
- ALTRONIX 5-Output Power Distribution Module
- Limited Lifetime Manufacturer Warranty
ALTRONIX MOM5 Specs
| Height |
5.3"
|
| Width |
3.5"
|
| Depth |
1"
|
| Compatibility |
|
| Environmentally Friendly |
Yes
|
| Environmental Certification |
RoHS
|
| Country of Origin |
United States
|
| Box Dimensions (LxWxH) |
5.25 x 3.5 x 1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
