American DJ Encore FR20 DTW Dimmable Warm White LED Fresnel (4-Pack)
American DJ FR20 DTW Overview

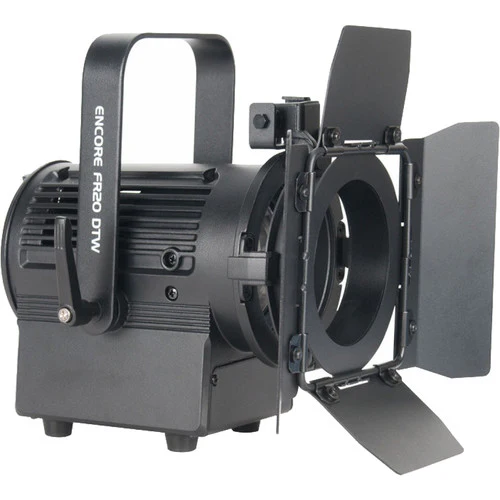

Well suited for stage, theater, and commercial use, the American DJ Encore FR20 DTW is a 17W warm white LED 2" Fresnel fixture offering a soft-edged 3000K beam with a CRI of 92. The instrument features a 19? beam angle but may be expanded to 45? with the included frost filter. The removable barndoors allow you to further adjust the beam dispersion.
The fixture offers a manual knob to change the dimming from 100 to 0% with a dim-to-warm feature. The FR20 is also Triac dimmable, making it compatible with ADJ dimmer packs or Lutron and Leviton wall dimmers. The American DJ FR20 DTW is equipped for multi-voltage operation and includes a hanging bracket, a safety cable, a gel frame, a frost filter, two retainer rings, a gold snoot, and a metal spacer.
- 17W warm white LED engine
- 2" Fresnel lens
- Dimming potentiometer: 0-100%
- Dim-to-warm feature
- Triac dimmable, compatible with Lutron and Leviton wall dimmers or ADJ Dimmer Packs (DP-415R, DP-DMX20L, Uni Pak II)
- Color temperature of 3000K
- 19? beam angle, switchable to 45? with the included frost filter
- Includes hanging bracket, removable barndoors, safety cable, gel frame, and additional hardware
Items Included
- 4 x American DJ Encore FR20 DTW Dimmable Warm White LED Fresnel
- Hanging Bracket
- Removable Barndoors
- Safety Cable
- Gel Frame
- Frost Filter
- 2 x Retainer Ring
- Gold Snoot
- Metal Spacer
- Limited 2-Year Manufacturer Warranty
Additional Resources
American DJ FR20 DTW Specs
| Light Source |
17 W warm white LED engine
LED Life: 50,000 hours |
| Lens |
2.0" / 50.8 mm Fresnel
|
| Color Temperature |
3000K
|
| CRI |
92
|
| Dimmer |
Dimming Potentiometer: 0 to 100%
Dim-to-warm feature Triac dimmable, compatible with Lutron & Leviton wall dimmers or ADJ dimmer packs (DP-415R, DP-DMX20L, Uni Pak II) |
| Lux |
600 at 9.8' / 3.0 m
|
| Beam Angle |
19 or 45?
|
| Operating Voltage |
Multi-Voltage: 100-240 VAC, 50/60 Hz
|
| Dimensions |
10.3 x 5.3 x 8.3" / 25.9 x 13.3 x 21.0 cm
|
| Weight |
5.0 lb / 2.3 kg
|
| Package Weight |
6.56 lb
|
| Box Dimensions (LxWxH) |
12.75 x 10.4 x 7.85"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
