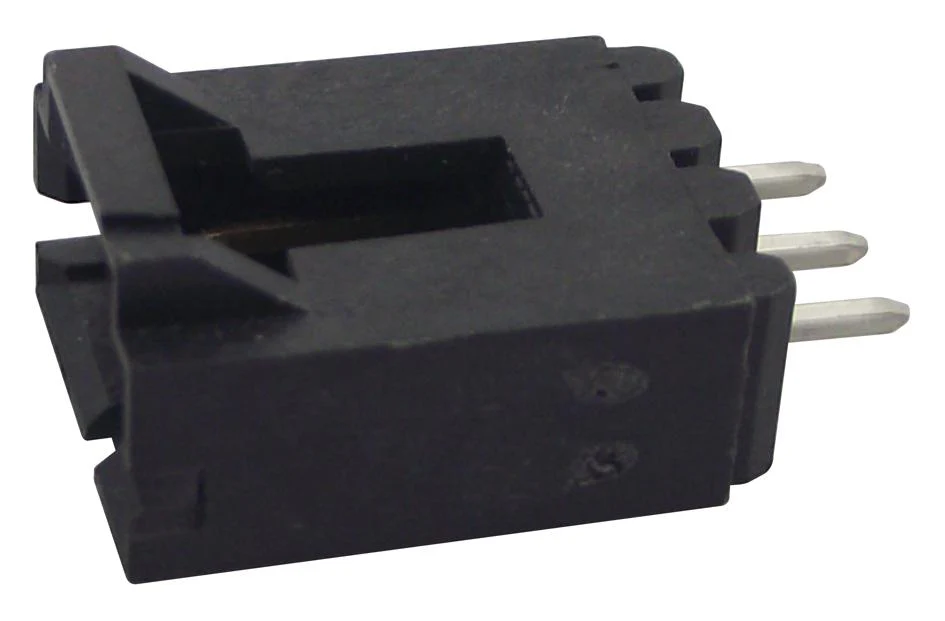

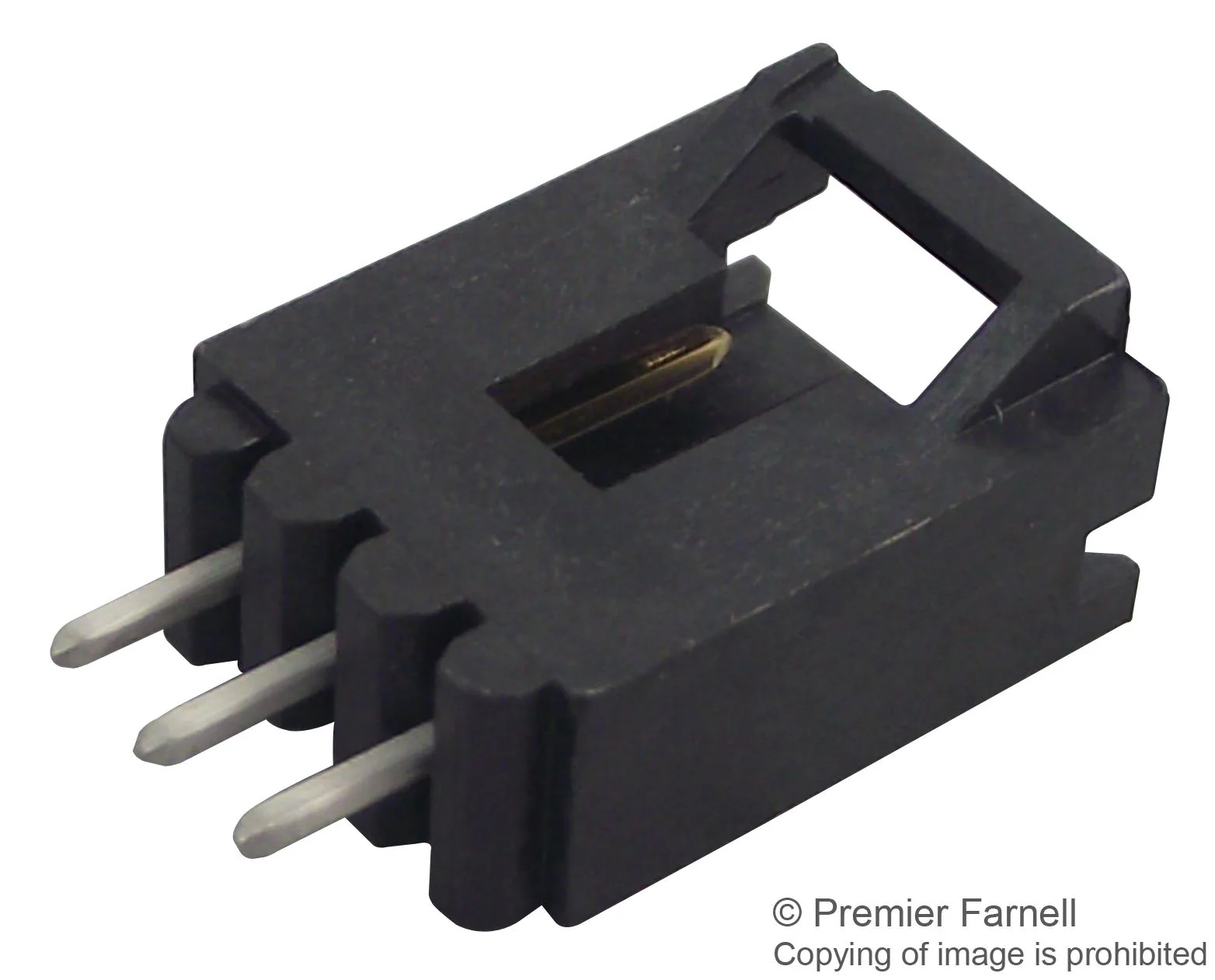

AMP - TE Connectivity 5-104363-2 5-104363-2 Pin Header Wire-to-Board 2.54 mm 1 Rows 3 Contacts Through Hole Straight MTE

The 5-104363-2 is a 3-position 1-row Shrouded Header with pin type gold-plated brass contacts and black thermoplastic housing. The AMPMODU MTE series connector has polarized lock mating retention, locking lance contact retention and latched mating alignment. It is suitable for use with receptacle housing assembly and printed circuit board.

• 600V Dielectric withstanding voltage
• 5000MR Insulation resistance
• 15mR Termination resistance
• 3A Contact current rating
• UL94V-0 Flammability rating

Applications

Industrial

Other details

Brand	AMP - TE CONNECTIVITY
Part Number	5-104363-2
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN
Application Note EN
Product Change Notice EN
3D Product Image EN
Drawing EN
