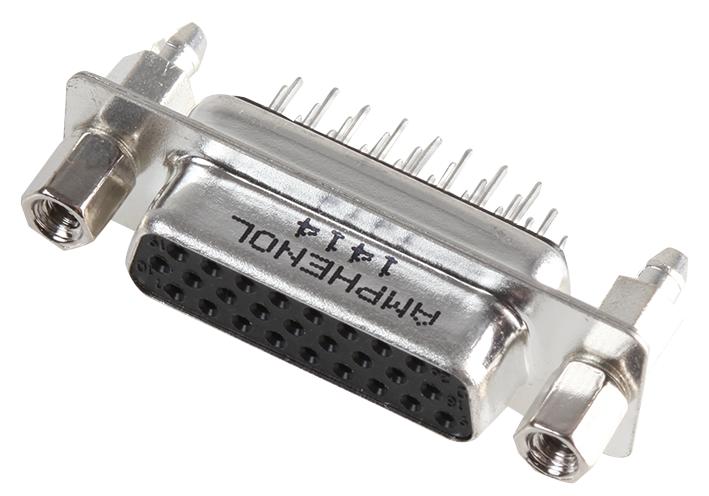

Amphenol ICC L77HDAH26SOL2RM8 D Sub Connector High Density Receptacle HD Series 26 Contacts DA Solder
HomeStore

Amphenol ICC L77HDAH26SOL2RM8 D Sub Connector High Density Receptacle HD Series 26 Contacts DA Solder

Amphenol ICC L77HDAH26SOL2RM8 D Sub Connector High Density Receptacle HD Series 26 Contacts DA Solder

Amphenol's high density D-Sub connectors complement Amphenol's extensive D-Sub connector line. The decreased contact spacing accommodates greater signal density in comparison to conventional D-Sub connectors.
  • Industrial, Telecom, Any industry standard I/O connections
  • Shells: Steel with Nickel plating
  • Insulator: Glass filled thermoplastic, UL 94V-0
  • Contacts: Copper alloy, selective Gold plating
  • Current Rating: 3A
  • Voltage Rating: 600V AC/rms 50Hz
  • Withstanding Voltage: 1000V AC/rms 50HZ for one minute
  • Insulation Resistance: 5000MR
  • Contact Resistance: 10mR Max.
  • Operating temperature range -55°C to +125°C

Other details

Brand AMPHENOL ICC
Part Number L77HDAH26SOL2RM8
Quantity Each
Technical Data Sheet EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

$1.72

Original: $5.73
