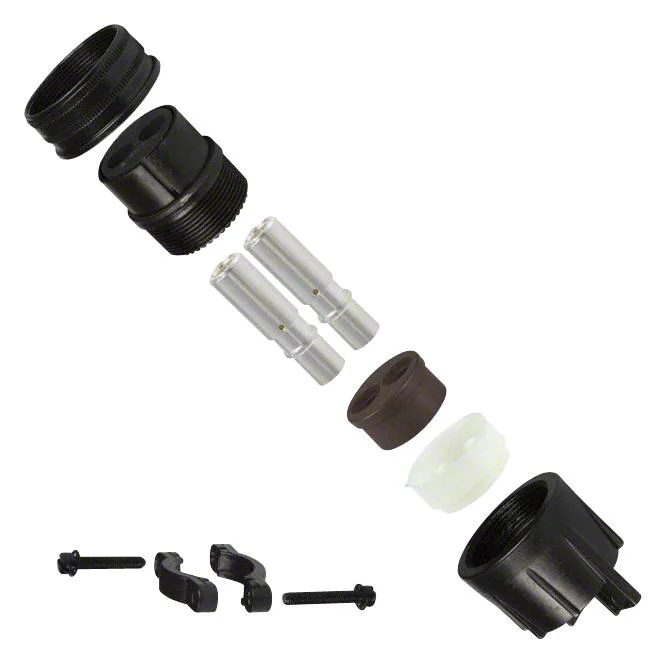

Amphenol Industrial ACS05E16-10P-025 ACS05E16-10P-025 Circular Connector AC Straight Plug 3 Contacts Solder Pin Threaded 16-10

The ACS05E16-10P-025 from Amphenol is AC series, MIL-DTL-5015 series equivalent straight plug with 3 contacts. The AC series threaded cylindrical connectors are designed for use in benign and harsh environments. These low cost rugged connectors with fine threaded coupling have resilient inserts with outstanding moisture barrier, high dielectric strength and high resistance to vibration. AC series connectors are sealed to withstand moisture, condensation, vibration and flash-over. These connectors are perfect for widely diverse applications.

• High reliability
• Alternate insert positioning
• Single key/keyway shell polarization
• Operating temperature range from -55°C to +125°C
• Minimum mating life of 100 cycles and salt spray of 48hour
• Insulation resistance is 5000Mohm at 25°C
• Resilient neoprene insulator, rear seal grommet provide a liquid tight assembly
• Aluminium alloy body material with black zinc cobalt plating
• Copper alloy solder pin contacts with silver plating

Applications

Commercial, Industrial

Other details

Brand	AMPHENOL INDUSTRIAL
Part Number	ACS05E16-10P-025
Quantity	Each
