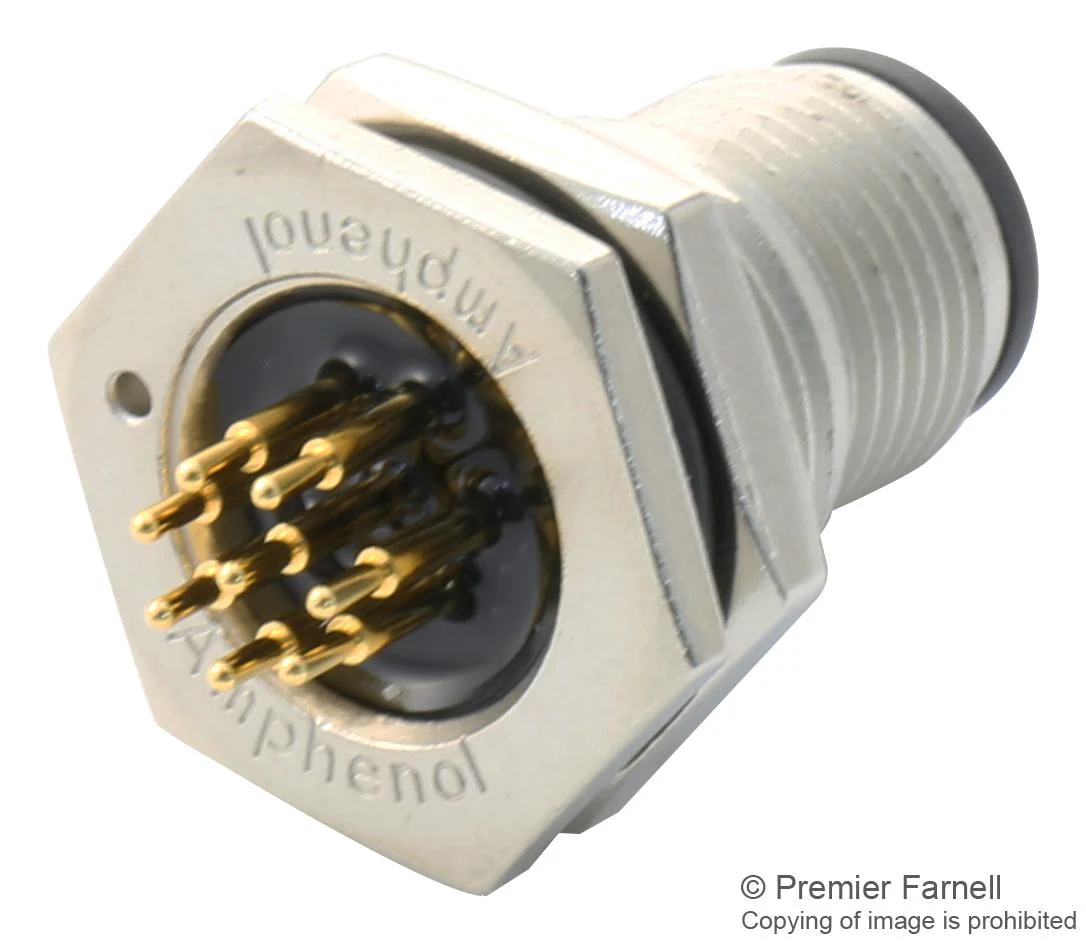

Amphenol LTW M12A-08PMMP-SF8001 Sensor Connector 8 Pole M12 Plug M Series Male Positions PCB Pin

The M12A-08PMMP-SF8001 from Amphenol LTW is M series sensor connector. This M12 A-coded (metal nut) size connector for panel mount meets the most demanding needs in factory automation applications. M-series is perfectly suitable for industrial equipment, machinery and automation that offer safety in harsh environmental conditions including corrosion, shock vibration, dust, moisture build-up and extremely adverse installation situations.

• Number of contacts is 8
• Connector body (style) is panel for receptacle
• Male connector housing
• Male contact gender
• 180? PCB assemble type and screw thread mating
• Hexagonal, front fastened backshell
• IP68 waterproof rating
• PG-9 cable
• Operating voltage is 30V
• Mating cycle is 100 minimum, operating temperature range from -40?C to 105?C

Applications

Sensing & Instrumentation, Automation & Process Control, Industrial

Other details

Brand	AMPHENOL LTW
Part Number	M12A-08PMMP-SF8001
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN
