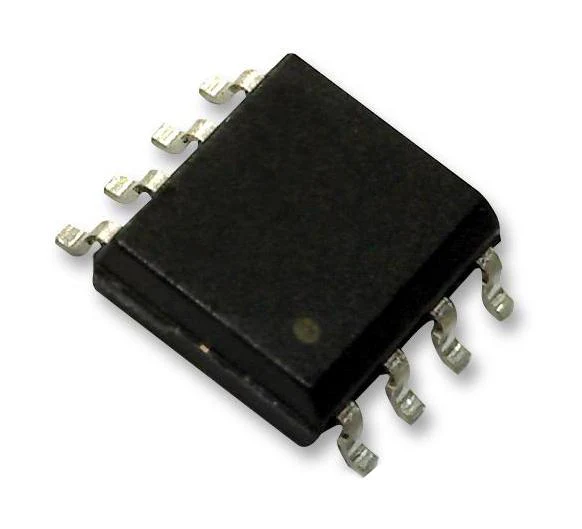

ANALOG DEVICES LT1719CS8#PBF Analogue Comparator, High Speed, Low Power, 1 Channels, 4.5 ns, 2.7V to 10.5V, SOIC, 8 Pins
ANALOG DEVICES LT1719CS8#PBF Analogue Comparator, High Speed, Low Power, 1 Channels, 4.5 ns, 2.7V to 10.5V, SOIC, 8 Pins
Product Overview
LT®1719 is an UltraFast� comparator optimized for low voltage operation. The input voltage range extends from 100mV below VEE to 1.2V below VCC. Internal hysteresis makes this easy to use even with slow moving input signals. The rail-to-rail outputs directly interface to TTL and CMOS. Alternatively the symmetric output drive can be harnessed for analogue applications or for easy translation to other single supply logic levels. A shutdown control allows for reduced power consumption and extended battery life in portable applications. Typical applications are high speed differential line receiver, crystal oscillator circuits, level translators, threshold detectors/discriminators, zero-crossing detectors, high speed sampling circuits, delay lines.
- TTL/CMOS compatible rail-to-rail output
- Input supply voltage is 2.7 to 10.5V at VCC = +VS = 5V and VEE = �5V
- Input offset voltage is 0.4mV typical
- Input bias current is �2.5?A typical at TA = 25°C
- UltraFast: 4.5ns at 20mV overdrive, 7ns at 5mV overdrive
- Shutdown pin current is �110?A typical at +VS or V+ = 5V, TA = 25°C. VCM = 1V, VSHDN = 0.5V
- 8-lead plastic SO package
- Temperature rating is 0°C to 70°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | LT1719CS8#PBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Original: $15.58
-70%$15.58
$4.67ANALOG DEVICES LT1719CS8#PBF Analogue Comparator, High Speed, Low Power, 1 Channels, 4.5 ns, 2.7V to 10.5V, SOIC, 8 Pins
Product Overview
LT®1719 is an UltraFast� comparator optimized for low voltage operation. The input voltage range extends from 100mV below VEE to 1.2V below VCC. Internal hysteresis makes this easy to use even with slow moving input signals. The rail-to-rail outputs directly interface to TTL and CMOS. Alternatively the symmetric output drive can be harnessed for analogue applications or for easy translation to other single supply logic levels. A shutdown control allows for reduced power consumption and extended battery life in portable applications. Typical applications are high speed differential line receiver, crystal oscillator circuits, level translators, threshold detectors/discriminators, zero-crossing detectors, high speed sampling circuits, delay lines.
- TTL/CMOS compatible rail-to-rail output
- Input supply voltage is 2.7 to 10.5V at VCC = +VS = 5V and VEE = �5V
- Input offset voltage is 0.4mV typical
- Input bias current is �2.5?A typical at TA = 25°C
- UltraFast: 4.5ns at 20mV overdrive, 7ns at 5mV overdrive
- Shutdown pin current is �110?A typical at +VS or V+ = 5V, TA = 25°C. VCM = 1V, VSHDN = 0.5V
- 8-lead plastic SO package
- Temperature rating is 0°C to 70°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | LT1719CS8#PBF |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
