AtlasIED HT327 - 32W, 70.7V Transformer
AtlasIED HT327 Overview

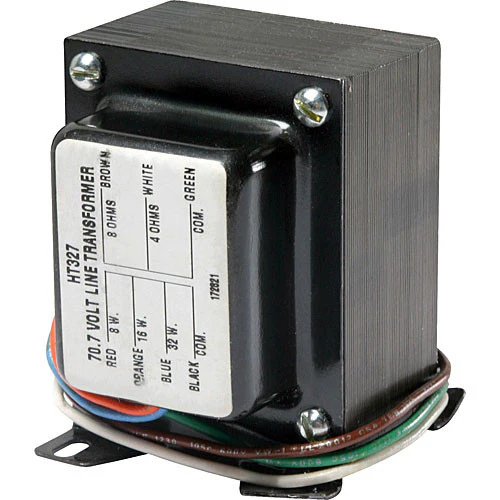

The HT327 from Atlas is a high-quality line matching transformer for use in distributed 70.7V loudspeaker systems. It features a 0.6dB or less insertion loss, and has primary taps at eight, 16 and 32 Watts. The secondary impedance is four and eight Ohms. Constructed from audio-grade laminations, the HT327 is designed for a long life of outstanding audio quality.
In the Box
- AtlasIED HT327 - 32W, 70.7V Transformer
- Limited 1-Year Manufacturer Warranty
AtlasIED HT327 Specs
| Power Rating |
32W
|
| Voltage |
70.7V
|
| Power Taps |
8, 16, and 32W
|
| Frequency Response |
30Hz - 15kHz ±1dB
|
| Dimensions |
3.25 x 2.5 x 3.25" (83 x 64 x 83mm)
|
| Weight |
3.5 lbs (1.6kg) (Shipping Weight)
|
| Package Weight |
3 lb
|
| Box Dimensions (LxWxH) |
3.7 x 3.5 x 3.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
