Atomos AtomX/Core Power Box with 6.6' XLR Cable for NEON Monitor (Gold Mount)
Atomos CSX-NB19 Overview

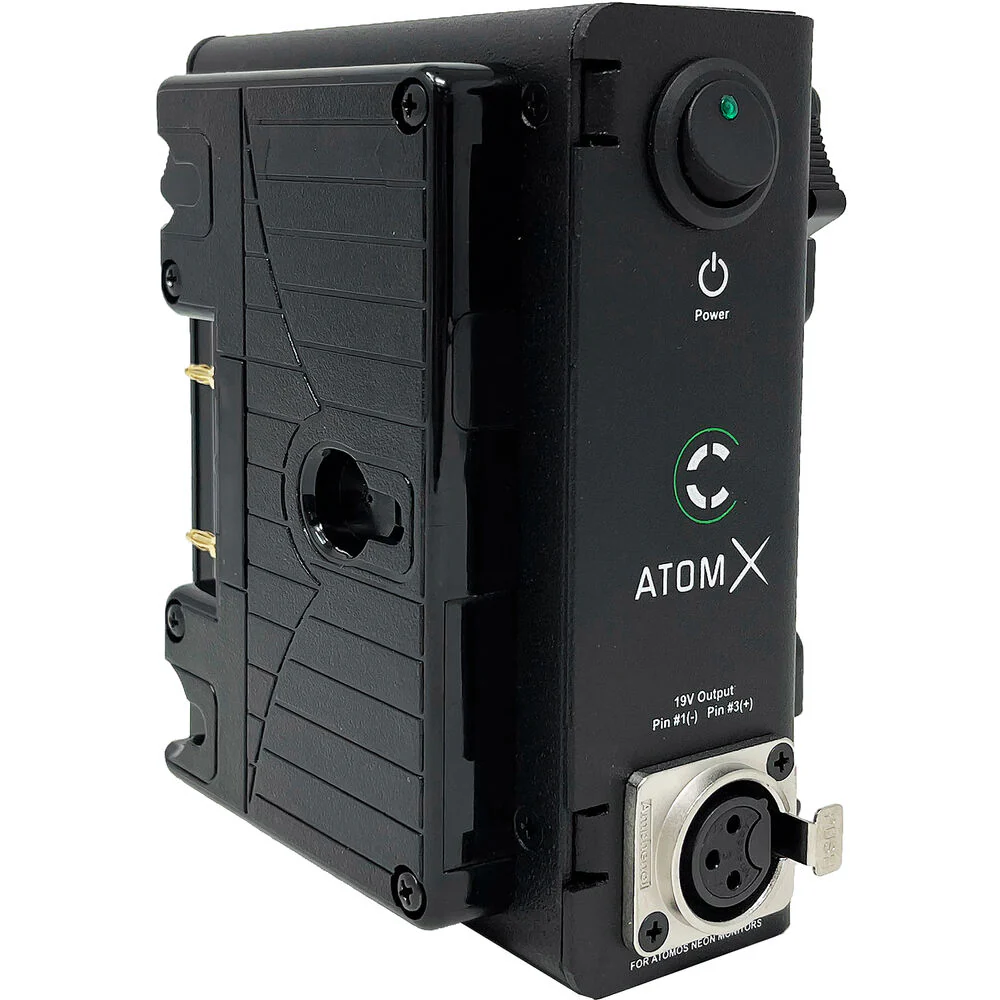

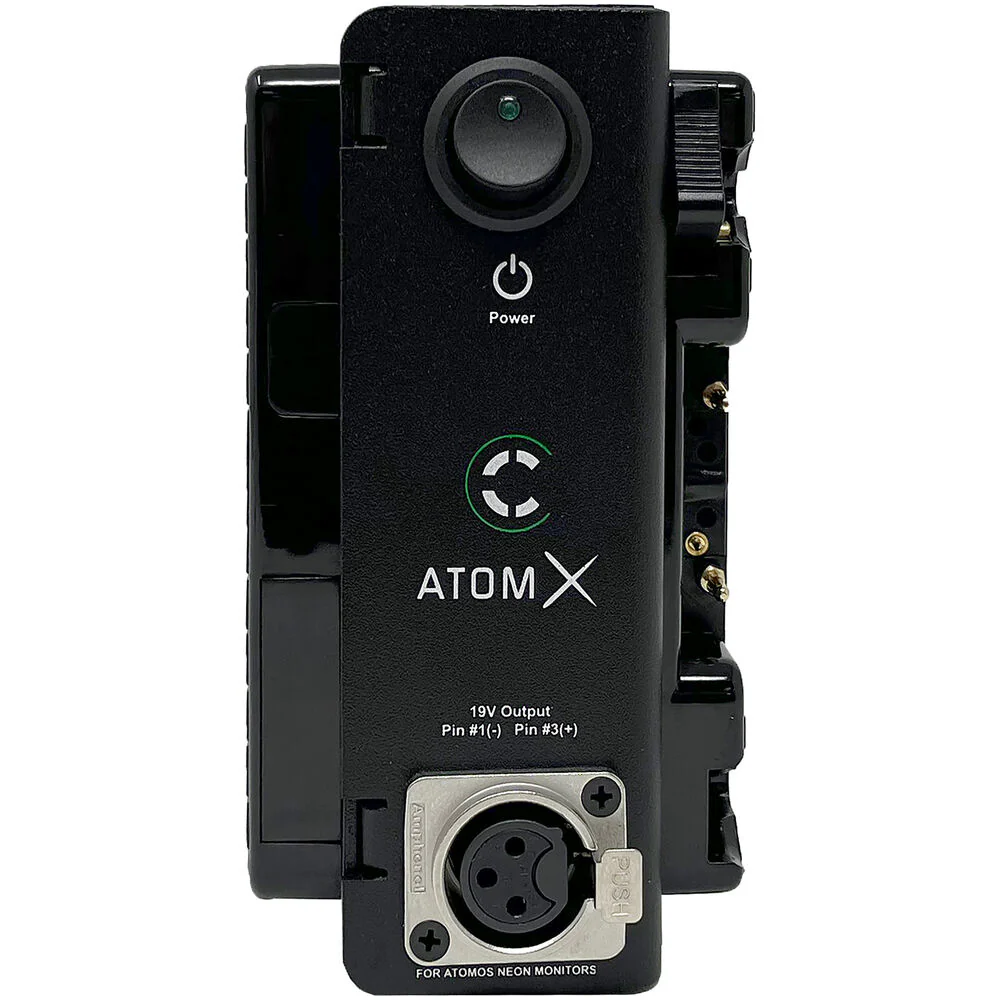

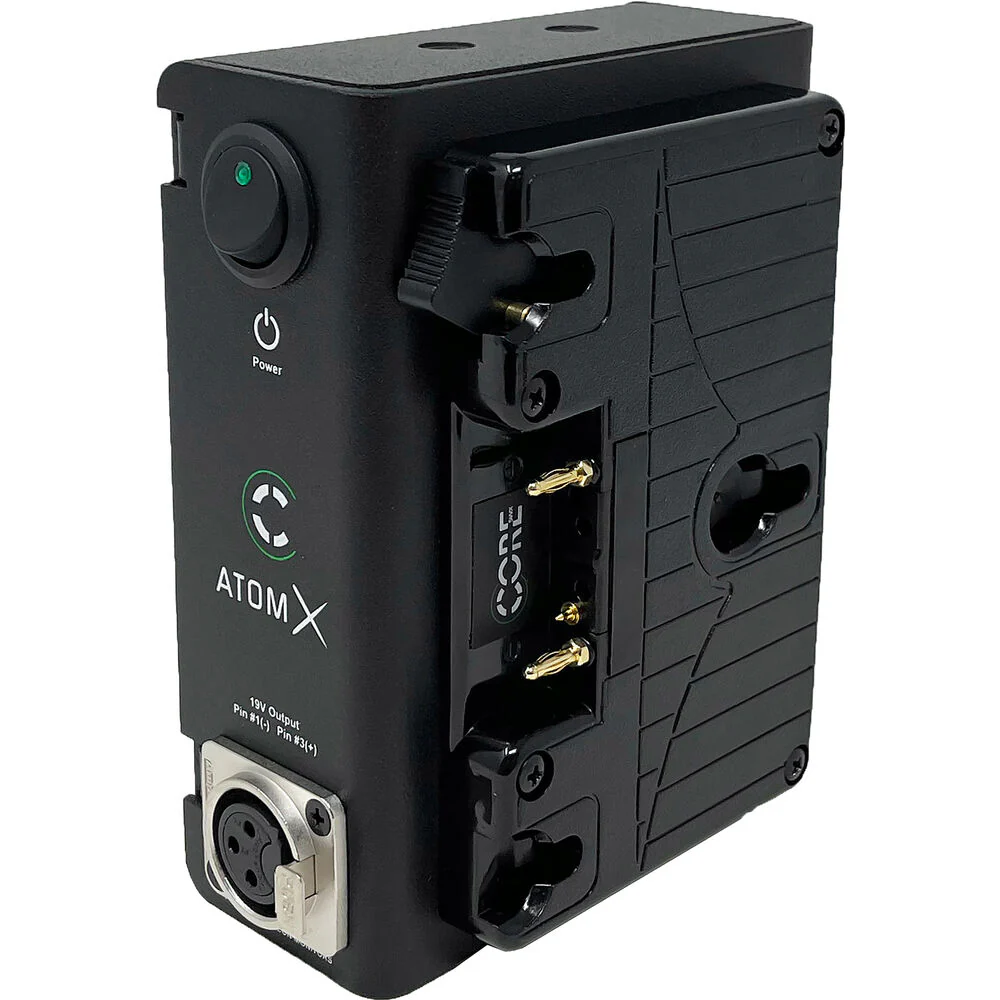

To power your NEON monitor on location from a battery rather than from mains power, use this AtomX Core Power Box with 6.6' XLR Cable from Atomos. Developed with Core SWX, this durable aluminum power box provides stable operation for the power-hungry NEON monitors that have a 380W output. A power on/off switch on the side allows you to cut the power to preserve the batteries when not in use.

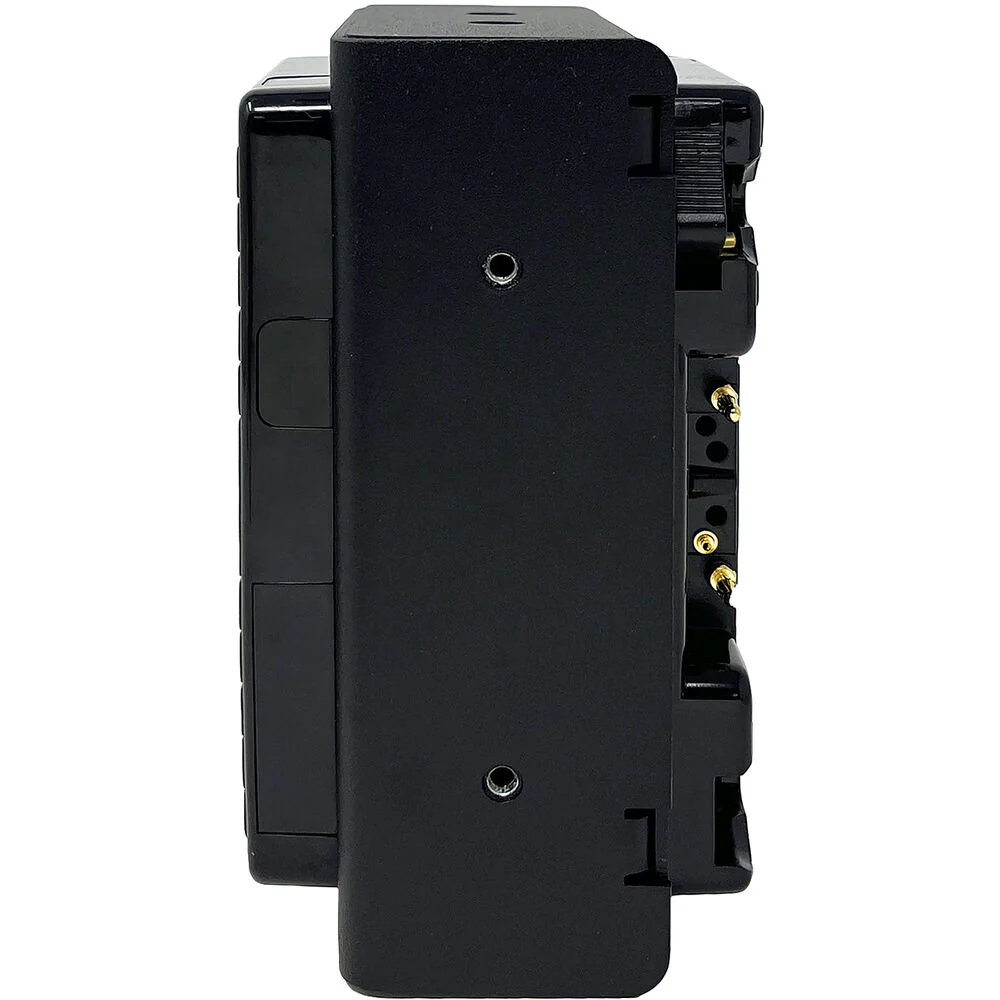

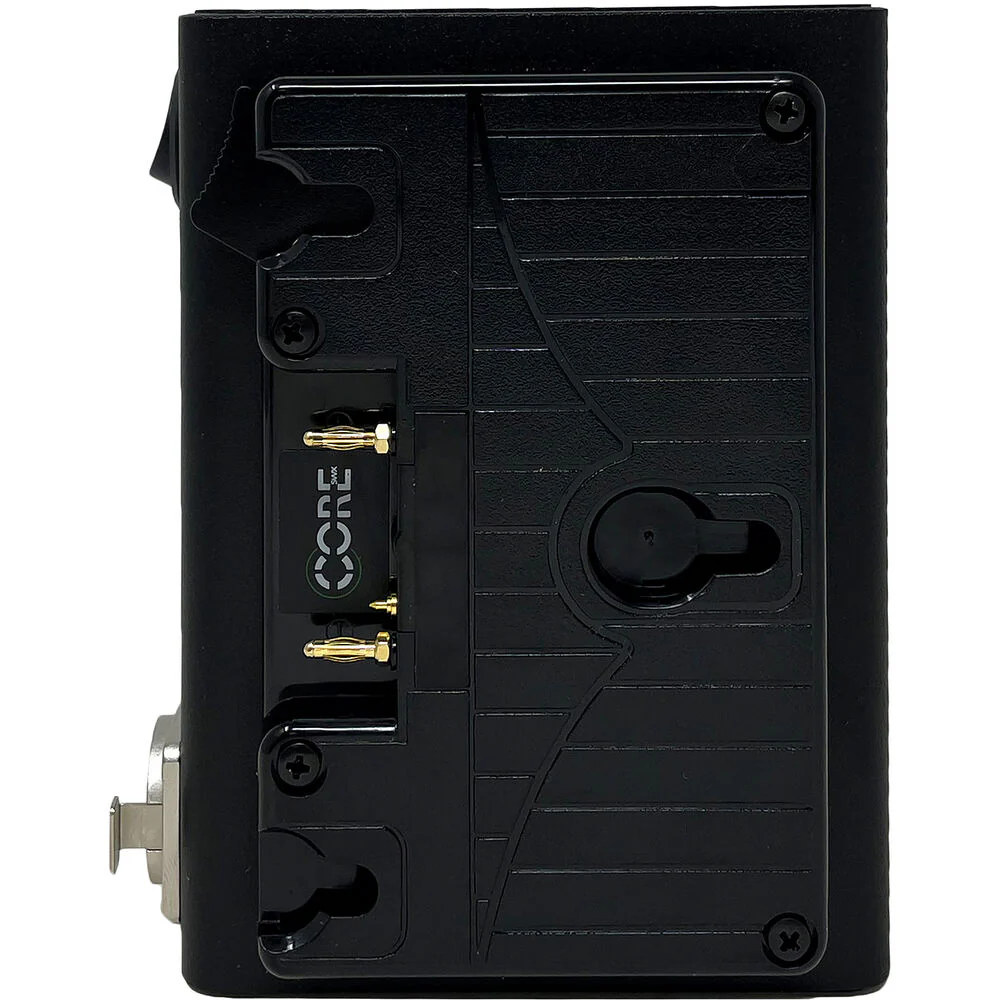

Two Gold mount battery plates on either side of the unit require batteries with a minimum of 12A load to provide stable power for the monitor. The monitor is then powered using the included 3-pin XLR power cable. It is recommended to have battery packs that are equal in capacity and output to operate, such as two Core SWX NEO 9, NEO 150, or HelixMax Gold mount batteries.
- To answer the needs of powering the NEON production monitors, the new AtomX NEON battery system was designed by Core SWX
- This battery module accepts two Gold mount batteries and provides proper voltage and current delivery to power the NEON monitors without the need for AC mains
- Included with the unit is a 6.6' 3-pin XLR cable, specifically designed to be used as an interconnect between the NEON box and NEON monitor
- It is recommended that two equally capacity packs be connected to operate
- Battery packs with a minimum of 12A load should be used, ideally NEO 9/150 or HelixMax, given the maximum 380W output of the device
Items Included
- Atomos AtomX/Core Power Box with 6.6' XLR Cable for NEON Monitor (Gold Mount)
- 3-Pin XLR Power Cable (6.6')
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Atomos CSX-NB19 Specs
| Maximum Load |
380 W, 20 A
|
| Power Output |
XLR 3-Pin Female: 19 VDC at 20 A
|
| Camera Power Method |
Connector
|
| Plate Front / Battery Mount |
Gold Mount
|
| Hot-Swap Support |
No
|
| Power Input |
Gold Mount: 12 VDC at 16.8 A
|
| Maximum Load |
380 W, 20 A
|
| Power Output |
XLR 3-Pin Female: 19 VDC at 20 A
|
| Camera Power Method |
Connector
|
| Inputs/Outputs |
1x XLR 3-Pin Female
|
| Plate Front / Battery Mount |
Gold Mount
|
| Number of Battery Bays |
2
|
| Hot-Swap Support |
No
|
| Material of Construction |
Aluminum
|
| Cable Length |
6.6' / 2 m
|
| Dimensions |
5.3 x 3.9 x 3.4" / 134 x 100 x 87 mm
|
| Weight |
1.7 lb / 771 g
|
| Package Weight |
2.54 lb
|
| Box Dimensions (LxWxH) |
8 x 5.4 x 5.3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
