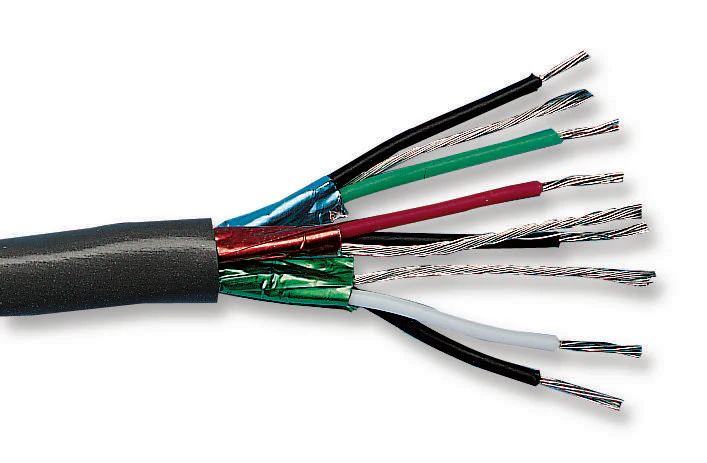

Belden 8778 8778 Multipair Cable Per M Screened 6 Pair 22 AWG 0.325 mm²

The 8778 is a 6-pair CM-rated Multi-conductor Cable with 22AWG stranded (7x30) tinned copper conductor, polypropylene insulation, twisted pairs individually shielded with Beldfoil® aluminium foil-polyester tape (100% coverage) and overall chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.

• CPR: Not Yet Qualified
• 50R Nominal characteristic impedance
• 0.18µH/ft Nominal inductance
• 30pF/ft Conductor to shield nominal capacitance
• 55pF/ft Conductor to other conductor and shield nominal capacitance
• 66% Nominal velocity of propagation
• 15R/1000ft at 20°C Nominal conductor DC resistance
• UL1685 Flame tested

Applications

Industrial

Other details

Brand	BELDEN
Part Number	8778
Quantity	1 Metre
Technical Data Sheet EN
