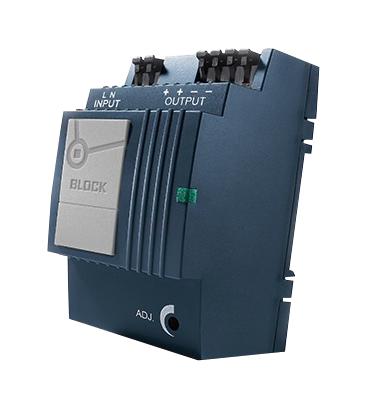

BLOCK PEL 230/24-1,3 AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 34.32 W, 24 VDC, 1.3 A

BLOCK PEL 230/24-1,3 AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 34.32 W, 24 VDC, 1.3 A

BLOCK PEL 230/24-1,3 AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 34.32 W, 24 VDC, 1.3 A

PEL 230/24-1,3 is a PEL 230 series single-phase switched mode power supply. This primary switched mode power supply is concentrated on the core task of voltage and current supply. Flat step profile optimised for installation in control panels in the building automation. Safety standards are EN 61558-2-16, EN 60950-1, EN 61204-3.

Panel installation on mounting rails, stabilised and adjustable output voltage
Input rated voltage is 100 - 240VAC, rated frequency range from 44Hz - 66Hz /0Hz
Output rated voltage is 24VDC, output rated current is 1.30A
LED green power good (DC OK) signalling
Efficiency is 82% typical
Service-friendly spring-loaded connector system
3 years warranty, protection index is IP20
UL/CSA 60950 recognised, UL 508 listed, GL approved
Ambient temperature range from -25°C to +55°C
Dimension is 54mm width x 89mm height x 59mm depth

Product details

Power Supply Applications: ITE

No. of Outputs: 1 Output

Output Power Max: 34.32W

Output Voltage - Output 1: 24VDC

Output Current - Output 1: 1.3A

Output Voltage - Output 2: -

Output Current - Output 2: -

Output Voltage - Output 3: -

Output Current - Output 3: -

Output Voltage - Output 4: -

Output Current - Output 4: -

Input Voltage VAC: 85V AC to 264V AC

Power Supply Output Type: Adjustable, Fixed

Product Range: PEL Series

Other details

Brand	BLOCK
Part Number	PEL 230/24-1,3
Quantity	Each
Technical Data Sheet EN

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

$38.41

Original: $128.05

-70%

BLOCK PEL 230/24-1,3 AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 34.32 W, 24 VDC, 1.3 A—

$128.05

$38.41

More Images

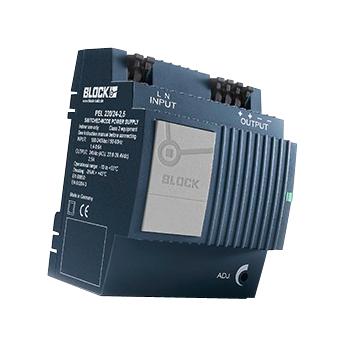

BLOCK PEL 230/24-1,3 AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 34.32 W, 24 VDC, 1.3 A - Image 2
