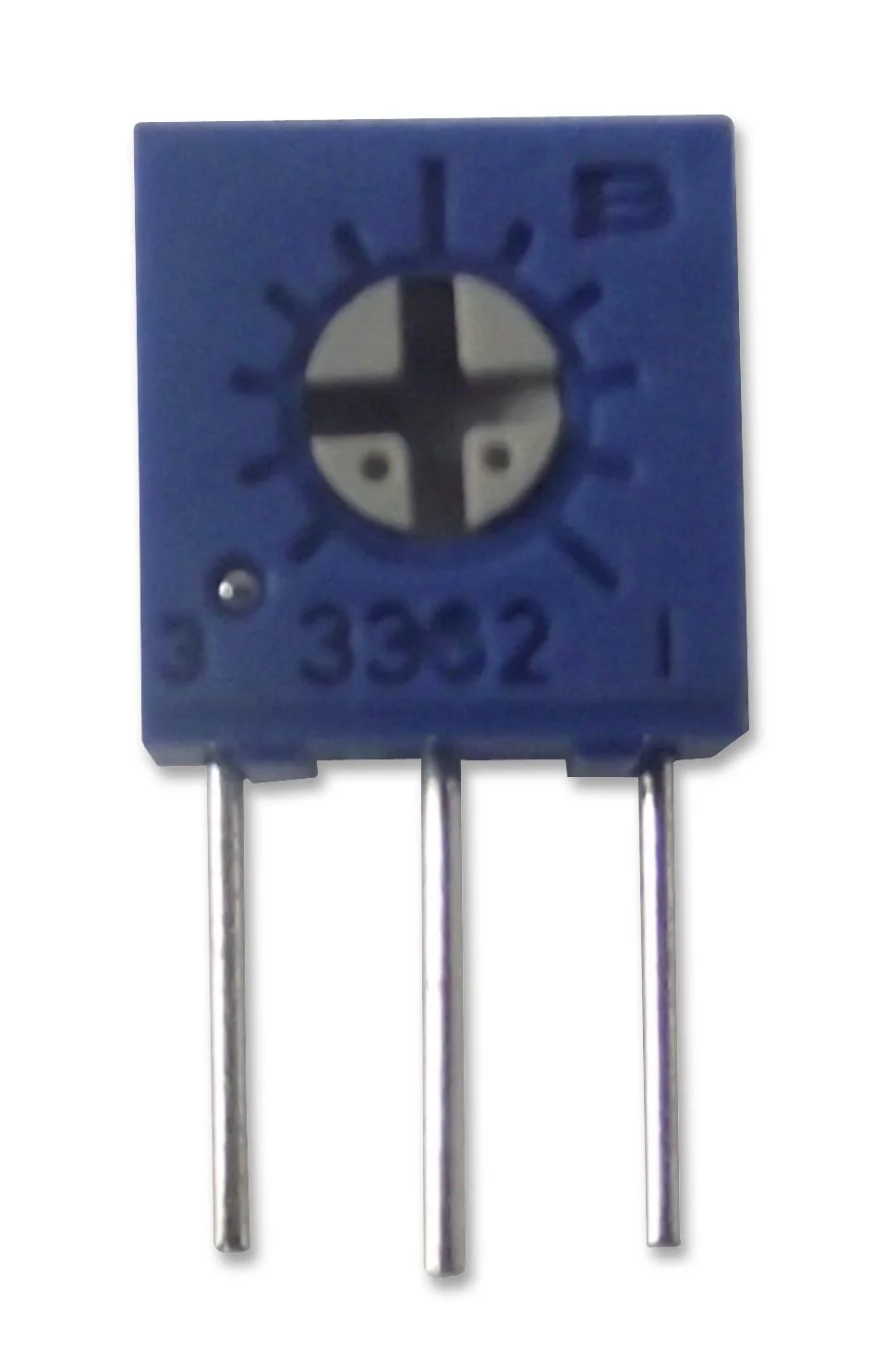

Bourns 3362W-1-202LF Trimpot Single Turn Cermet Side Adjust 2 Kohm Through Hole 1 Turns

The Bourns Trimpot 3362 series are cermet, through hole trimming potentiometers. These potentiometers are single turn which performs a variety of circuit adjustments in all types of electronic equipment.

• 1/4inch square potentiometer
• Side or top adjustment with lead screw
• Resistance value ranges from 20 ohm to 2Mohm
• Temperature coefficient is ±100ppm/°C
• Operating temperature ranges from -55°C to +125°C
• Power rating is 0.5W
• Rotational life of 200 cycles
• Miniature package
• Rotor designed for automatic machine adjust interface
• Withstands harsh environments and immersion cleaning processes

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	BOURNS
Part Number	3362W-1-202LF
Quantity	Each
Technical Data Sheet EN
CAD Multiple Formats EN
3D Product Image EN
