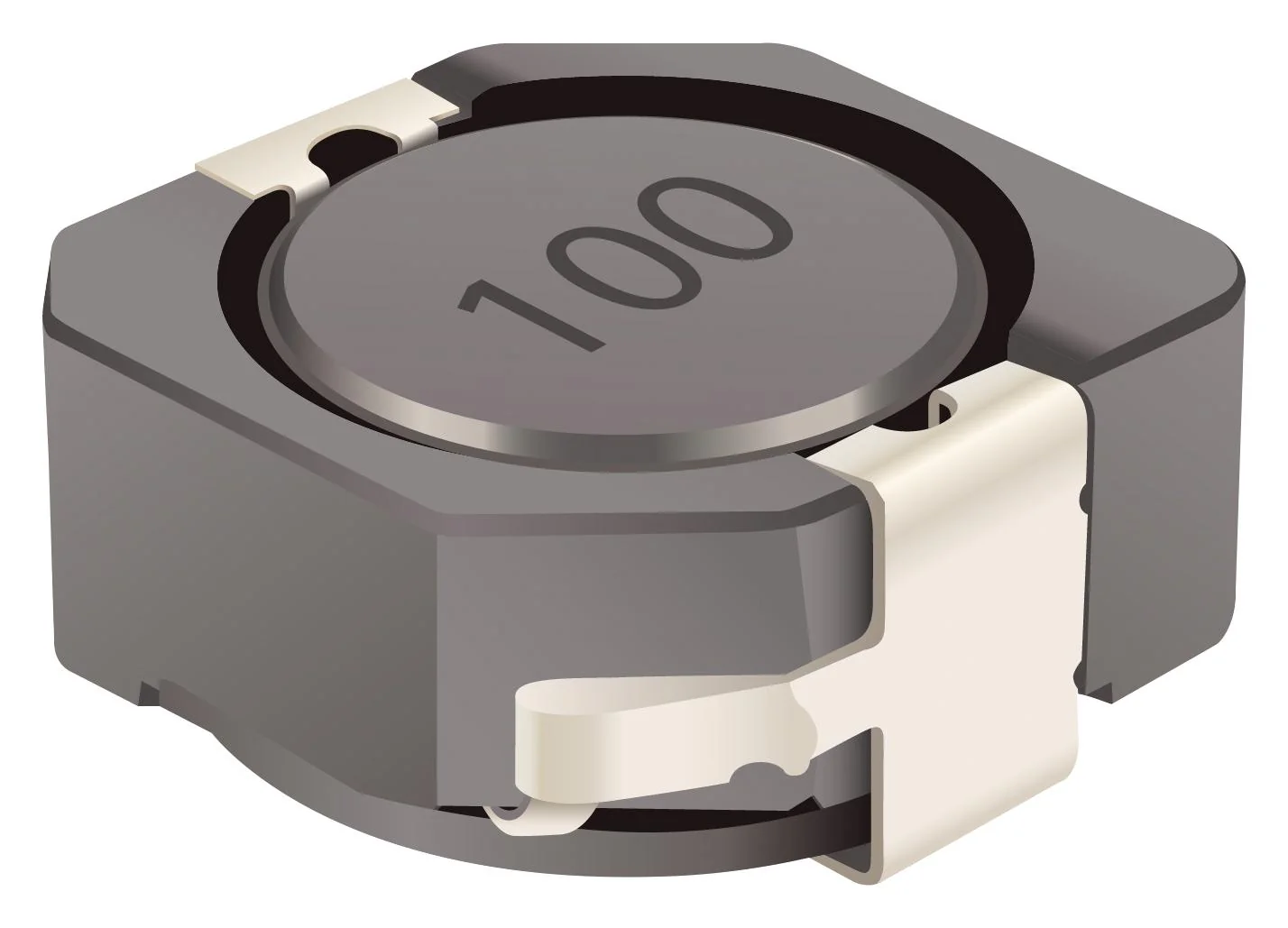

Bourns SRR1050A-470Y Power Inductor (SMD) AEC-Q200 47 µH 2 A Shielded SRR1050A

The SRR1050A-470Y from Bourns is a SRR1050A series SMD shielded power inductor. It is typically used in applications such as driver assistant, infotainment, lighting, DC to DC converters, power supplies.

• Automotive grade AEC-Q200 qualified
• Inductance is 47µH at 1MHz/1V
• Tolerance is ±30%
• DCR (DC resistance of inductor) is 0.094mohm (±20%)
• Maximum RMS current (Irms) is 2A
• Maximum saturation current (Isat) is 2A
• Ferrite core, enamelled copper wire and Sn terminal finish
• Operating temperature range from -40°C to 125°C
• Dimension is 10.2mm x 10mm x 4.8mm

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	BOURNS
Part Number	SRR1050A-470Y
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Enhanced Product Overview EN
3D Product Image EN
