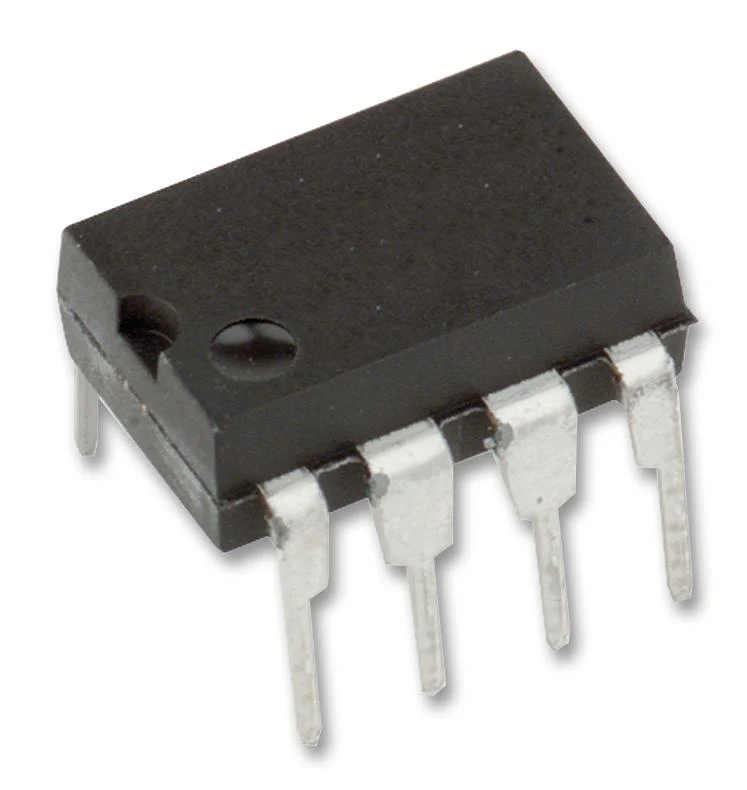

Broadcom HCPL-4661-020E HCPL-4661-020E Optocoupler Digital Output 2 Channel 5 kV 10 Mbaud DIP 8 Pins

The HCPL-4661-020E is a 2-channel 8-pin optically coupled Digital Gate Optocoupler combines a GaAsP light emitting diode and an integrated high gain photodetector. An enable input allows the detector to be strobe. The output of the detector IC is an open collector Schottky-clamped transistor. This unique design provides maximum AC and DC circuit isolation while achieving TTL compatibility. The optocoupler AC and DC operational parameters are guaranteed from -40 to 85°C allowing trouble-free system performance. It is suitable for high speed logic interfacing, input/output buffering, as line receivers in environments that conventional line receivers cannot tolerate and is recommended for use in extremely high ground or induced noise environments.

• 5mA Low input current capability
• 10MBd Typical high speed

Applications

Signal Processing, Computers & Computer Peripherals, Power Management, Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	BROADCOM
Part Number	HCPL-4661-020E
Quantity	Each
Technical Data Sheet EN
