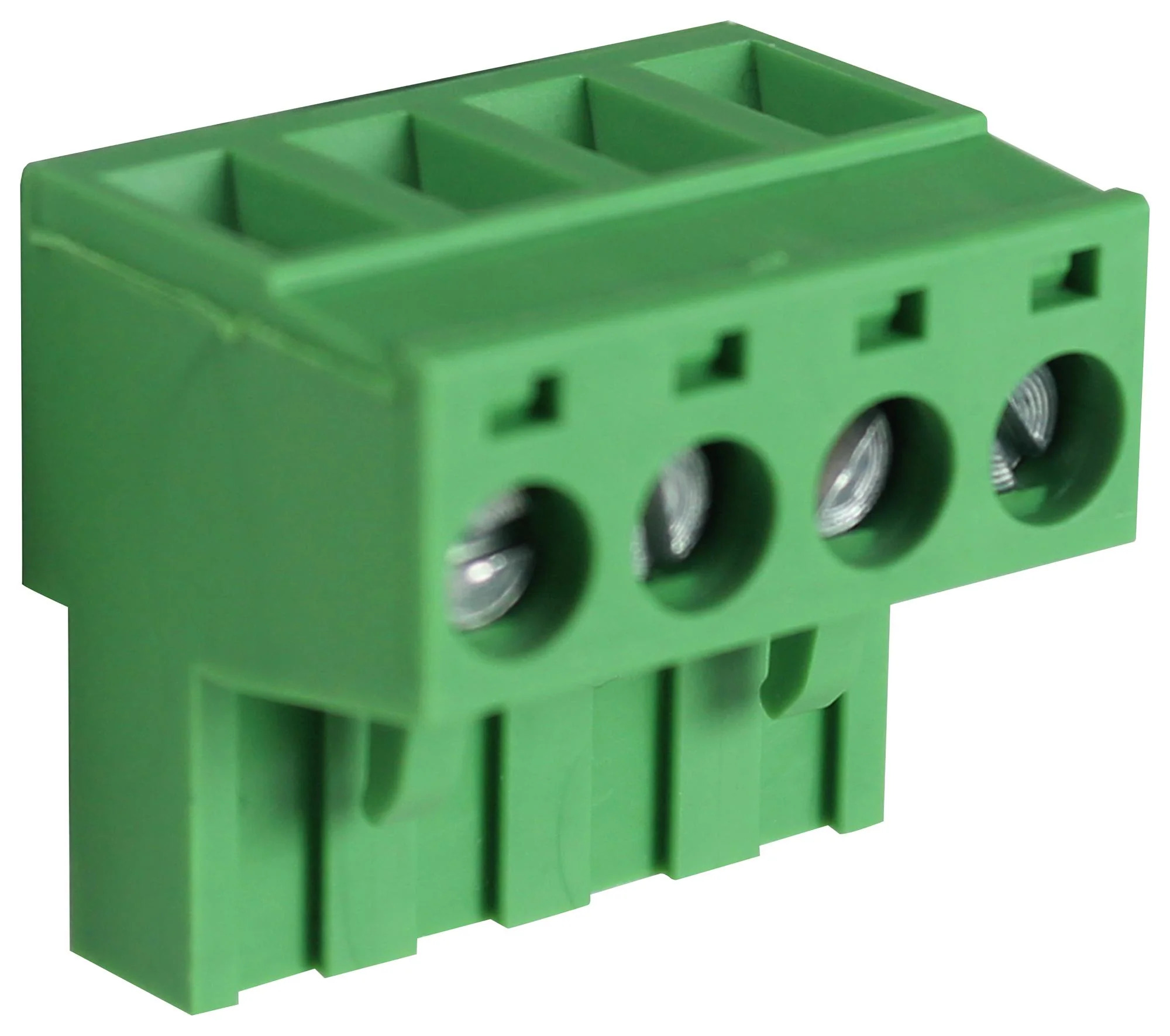

Camdenboss CTB9202/4 CTB9202/4 Pluggable Terminal Block 5 mm 4 Ways 24AWG to 12AWG 3.3 mm² Screw 15 A

The CTB9202/4 from Camdenboss is a 4 pole, female pluggable rising clamp terminal block with 5mm pin spacing. This professional rising clamp terminal block is suitable for wire size ranging from 24AWG to 12AWG.

• Rated voltage of 300V and rated current of 15A
• Dimension is 20mm x 18.10mm x 15mm (L x W x H)
• Polyamide (PA66) moulded material in green colour housing
• Polarised moulding and guided pin alignment
• Tin plated, phosphor bronze wire protector
• Tin plated M3 steel captive screws with 0.4Nm torque
• Working temperature range from -40°C to 105°C
• Horizontal female plug style
• Flammability rating meets UL94 V-0
• cULus approved

Applications

Industrial

Other details

Brand	CAMDENBOSS
Part Number	CTB9202/4
Quantity	Each
Technical Data Sheet EN
