Chief ConnexSys LVSXU Video Wall Landscape Mounting System
- Supports 42 to 80" Displays Up to 150 lb
- 200 x 100 to 700 x 400mm Mount Pattern
- Extends Display 4 to 13.4" from Wall
- -2.5 to 4° of Tilt Adjustment
- Mounts to 1-5/8" Sizes of Channel Strut
- Mounts Display in Landscape Orientation
The Chief ConnexSys LVSXU Video Wall Landscape Mounting System supports 42 to 80" displays up to 150 lb on a single strut channel for quick row-leveling. It can extend your display from 4 to 13.4" from the wall and supports 200 x 100 to 700 x 400 mm mount patterns in either landscape orientation. It provides -2.5 to 4° of tilt adjustment, 1" of height adjustment, and three levels of lateral adjustment. The ConnexSys LVSXU mount installs on a separately sold rail and provides six points of adjustment in one location at the top.
- Speed
-
- Hang units on a single strut channel for quick row-leveling
- Eliminates the need for horizontal spacers
- Vertical measurement is simply the height of the display to the next rail
- Compatible with most 1-5/8" sizes of channel strut
- Reduces installation time - especially for XL and recessed configurations

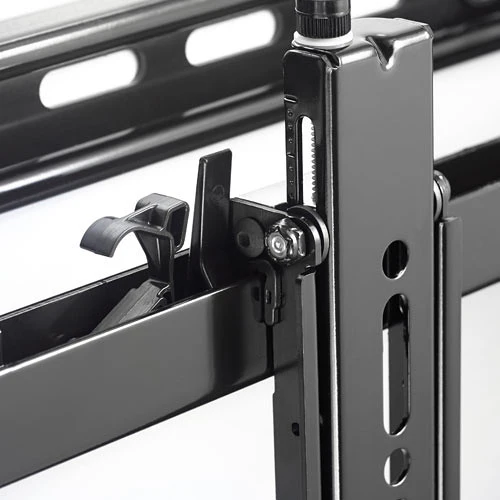

- Tool-free ClickConnect latching secures displays
- PowerZone provides 6 points of adjustment in one location at the top of the mount
- Alignment
-
- Height adjustment of ±1" on each interface
- Tilt adjustment at a single pivot point protects displays from twisting
- Depth can be set between 4 and 7.4" from the wall, providing a range of "home positions", making it suitable for recessed installations
- Both sides adjust independently, compensating for imperfections in the wall
- Walls can be out of alignment by up to 2" horizontally
- Three levels of lateral adjustment: Mount left/right along rail, interface left/right along mount, and lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions
- Serviceability
-

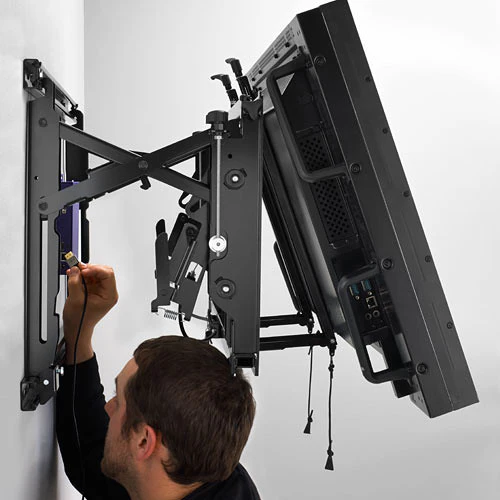

- RapidDraw display release system � cord release system gently and remotely pops any screen out for easy access and can be extended up to 13.4" for service
- Protects displays by not requiring an aggressive push to release/pop-out
- Releases only on demand, preventing accidental pop-outs
- Cord can be set up to pull for release from any 90° angle
- Kickstand provides 20° of bottom tilt access
- Rigidity
-
- Rigid frame keeps displays where you set them, even after extending for service
- Adjustable "home" depth position locks screens in place to maintain alignment despite accidental bumps/pushes
- Additional Features
-
- Accepts padlocks with up to 0.25" shank diameter
- Each mount comes with adjustments set in the same position
UPC: 841872161174
In the Box
Chief ConnexSys LVSXU Video Wall Landscape Mounting System
Chief LVSXU specs
| Compatibility | |
|---|---|
| Supported Screen Sizes | 42 to 80" / 106.7 to 203.2 cm |
| Supported Weight Capacity | 150 lb / 68.2 kg |
| Mounting-Hole Pattern | 200 x 100 to 700 x 400 mm |
| Number of Displays Supported | 1 |
| Adjustments | |
|---|---|
| Tilt Adjustment | -2.5 to +4° |
| Vertical Adjustment | -1.0 to 1.0" / -2.5 to 2.5 cm |
| Orientation | Landscape |
| General | |
|---|---|
| Distance from Mounting Surface | 4.0 to 13.4" / 10.2 to 34.00 cm |
| Dimensions | 35.5 x 21.8 x 4" / 90.3 x 55.4 x 10.2 cm |
| Packaging Info | |
|---|---|
| Package Weight | 35.4 lb |
| Box Dimensions (LxWxH) | 40.0 x 22.5 x 4.0" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
