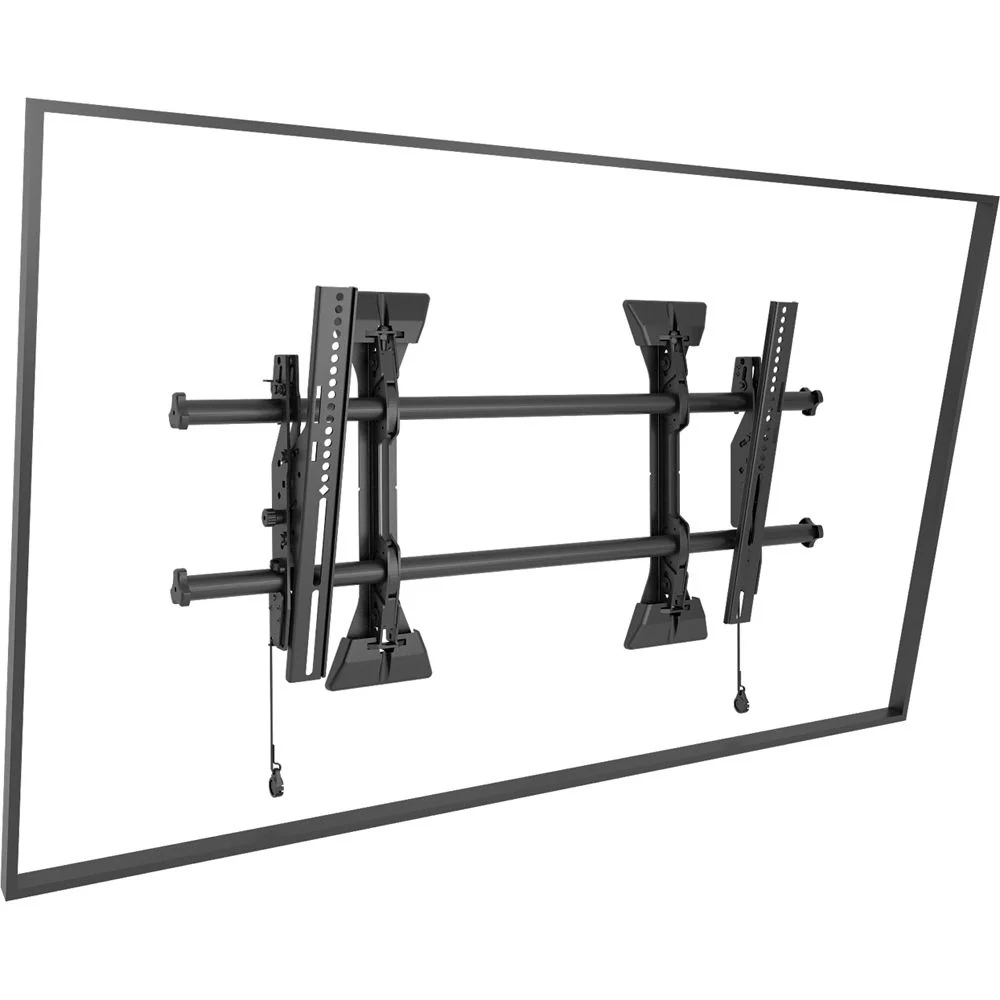

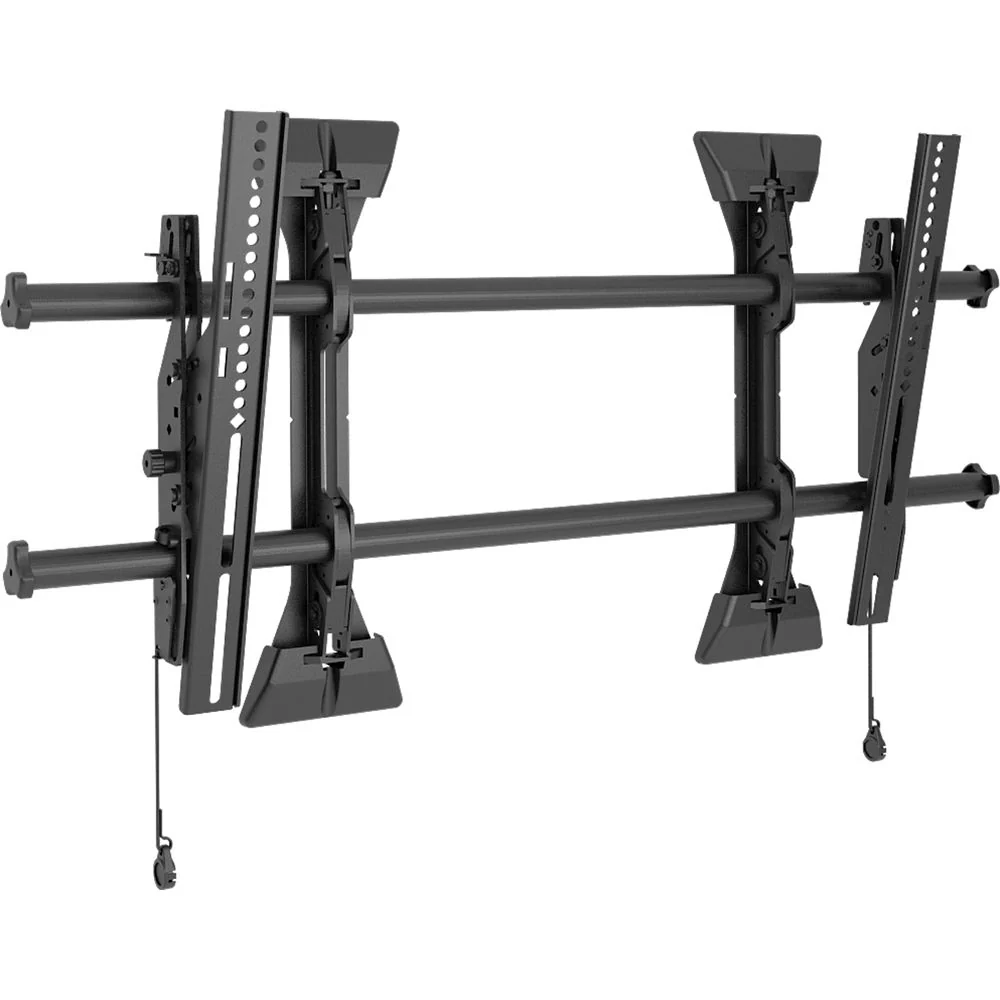

Chief LTM1U Fusion Series Tilting Landscape Wall Mount for 37 to 63" Displays
- For 37 to 63" Displays
- For Displays up to 200 lb
- -12 to 2° Tilt
- 17.4" (44.1 cm) Post-Install L/R Shift
- Post-Installation Height Adjustment
- Post-Installation Level Adjustment
- Kickstand for Easy Cable Access
The Chief LTM1U Fusion Series Tilting Landscape Wall Mount will support TVs and monitors 37 to 63" and up to 200 lb, displayed in landscape mode. It offers the option of post-installation lateral shift up to 17.4" and height and level adjustment. It features a built-in cable stand for easy access under the screen. The LTM1U has ClickConnect, which provides an audible click when the screen is safely engaged with the mount.
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 17.4" of post-installation lateral shift for near limitless centering
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable, and secure throughout the life of the installation
- A full line of accessories can be installed with the mount, and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Included nesting spacers can be stacked to achieve virtually any depth from display to wall
- Quick-store cords use magnets to easily store and access pull cords
- Integrated padlock shackle for adding a lock, up to 5/16" in diameter
- Easy-to-open box with less waste to throw away
UPC: 841872163277
Chief LTM1U specs
| Compatibility | |
|---|---|
| Supported Screen Sizes | 37 to 63" / 94.0 to 160.0 cm |
| Supported Weight Capacity | 200 lb / 90.7 kg |
| Mounting-Hole Pattern | 100 x 100 to 830 x 400 mm |
| Number of Displays Supported | 1 |
| Adjustments | |
|---|---|
| Tilt Adjustment | -12 to +2° |
| Lateral Shift | 17.4" / 44.1 cm |
| Vertical Adjustment | 1.0" / 2.5 cm |
| Orientation | Landscape |
| General | |
|---|---|
| Security | Padlock Supported |
| Stud Distance | 16.0" / 40.6 cm 20.0" / 50.8 cm 24.0" / 61.0 cm 32.0" / 81.3 cm |
| Distance from Mounting Surface | 2.0" / 5.1 cm |
| Dimensions | 17 x 34.75 x 2" / 43.2 x 88.3 x 5.1 cm |
| Packaging Info | |
|---|---|
| Package Weight | 21.0 lb |
| Box Dimensions (LxWxH) | 37.25 x 18.5 x 2.5" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
