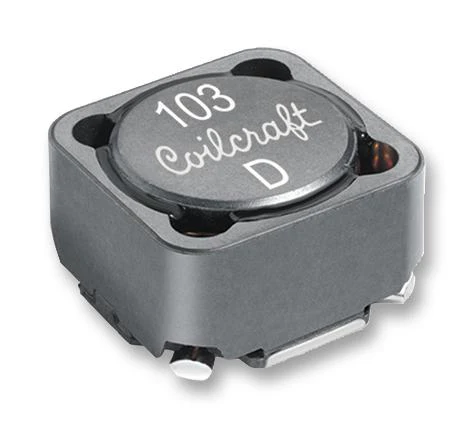

COILCRAFT MSS1583-683MED Power Inductor (SMD), 68 µH, 3.4 A, 4.7 A, MSS1583 Series, 14.8mm x 14.8mm x 8.6mm, Shielded
COILCRAFT MSS1583-683MED Power Inductor (SMD), 68 µH, 3.4 A, 4.7 A, MSS1583 Series, 14.8mm x 14.8mm x 8.6mm, Shielded
Product details
| Inductance | 68µH |
| RMS Current (Irms) | 3.4A |
| Saturation Current (Isat) | 4.7A |
| Product Range | MSS1583 Series |
| Power Inductor Case | 14.8mm x 14.8mm x 8.6mm |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.07ohm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | COILCRAFT |
| Part Number | MSS1583-683MED |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
