Core SWX PD Pro to 4-Pin XLR Cable (24")
Core SWX PDP-4PXLR Overview

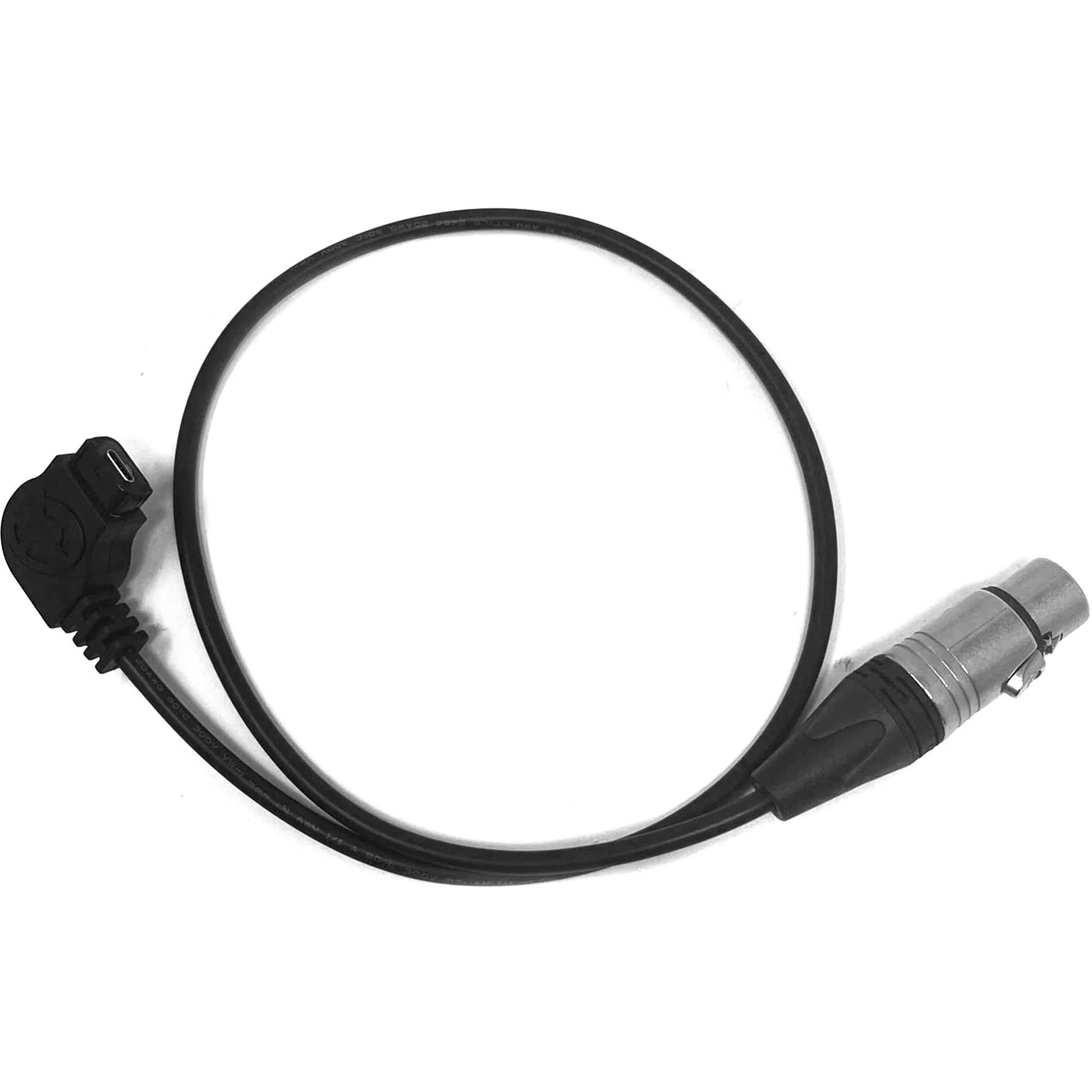

Power your gear using the correct voltage using a powerful pro battery with the PD Pro to 4-Pin XLR Cable from Core SWX. This 24" long cable features a right-angle USB-C PD Pro connector on one end and a straight 4-pin XLR connector on the other end. It facilitates powering your gear with a regulated charge from a PD Pro-enabled battery like the HyperCore G3. The reinforced PD Pro connector allows you to plug in the cable in either direction and can pass up to 100W to your gear.
- Cameras with a 4-pin XLR power input
- Sony 17" monitor
- Small HD 17" monitor
- Small HD 13" monitor
- Panasonic 9 or 8" monitor
- Cages for ALEXA Mini/Mini LF, such as Tilta brand
Continue to check back with Core SWX for future verified compatibility for this cable.
It's important to verify that your devices can handle the fixed voltage provided by this PD Pro cable, similar to how you would with an unregulated P-Tap cable. For example, while unregulated D-Tap cables may output a wide voltage range (11-17 VDC), a PD Pro cable designed for 12V 2-pin LEMO input devices consistently provides a regulated 15V output. This mid-range voltage is carefully calibrated for balance and efficiency, ensuring neither excessively high nor low output, maximizing device stability.
Items Included
- Core SWX PD Pro to 4-Pin XLR Cable (24")
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Core SWX PDP-4PXLR Specs
| Connector 1 |
1x USB-C Male (Right-Angle)
|
| Connector 2 |
1x 4-Pin XLR Male
|
| Voltage Control |
Regulated
|
| Voltage |
11 to 17 VDC
|
| Certifications |
No
|
| LED Indicators |
No
|
| Cable Length |
24" / 61 cm
|
| Package Weight |
0.15 lb
|
| Box Dimensions (LxWxH) |
5.7 x 3.65 x 0.85"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
