Cranborne Audio Carnaby 500 Harmonic EQ Module
HomeStore

Cranborne Audio Carnaby 500 Harmonic EQ Module

Cranborne Audio Carnaby 500 Harmonic EQ Module

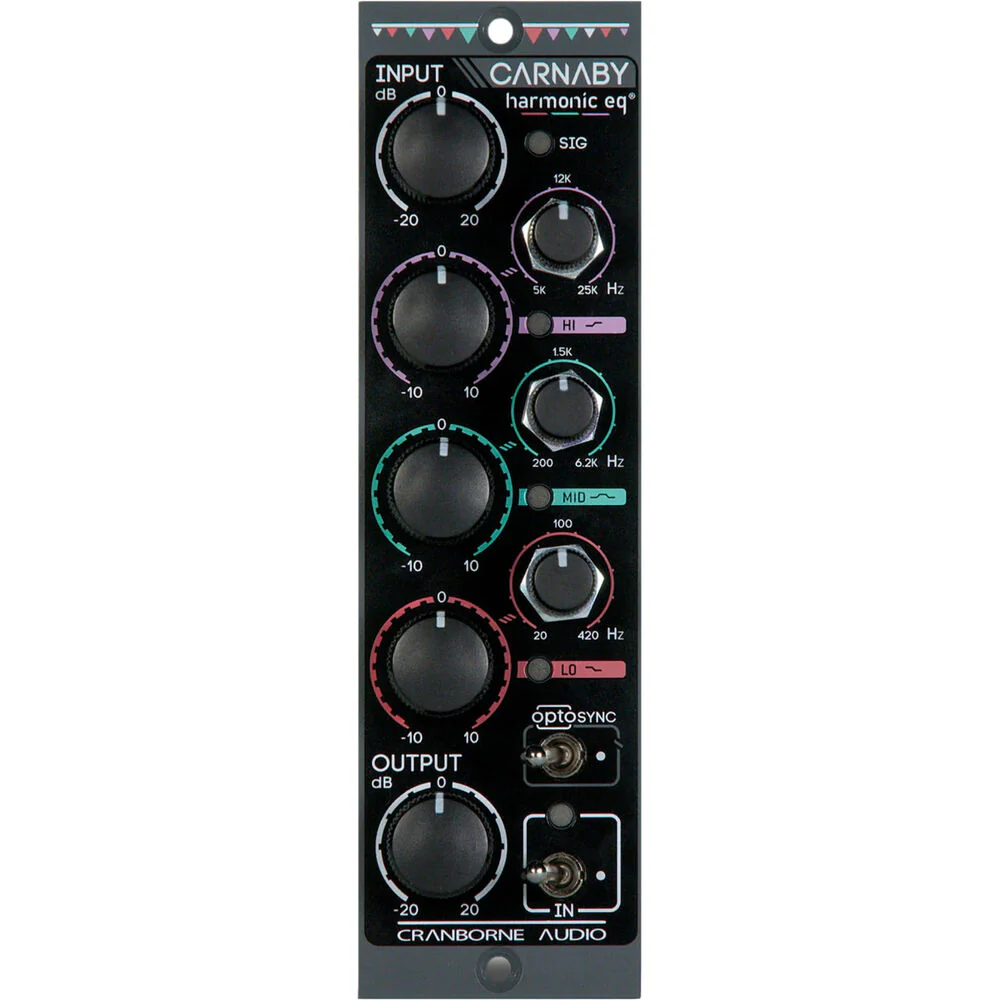

Cranborne Audio CARNABY500 Overview

Providing versatile 3-band parametric EQ, wonderfully warm saturation, and seamless control for multi-module setups, the Carnaby 500 from Cranborne Audio is a 500-series EQ module with a unique Harmonic EQ circuit that uses harmonic saturation to either boost or cut frequencies by ±10 dB. Unlike many other EQ modules, the Carnaby 500 has a highly dynamic and musical response, which increases the amount of harmonics that are boosted or cut as the circuit is driven harder.

The input and output controls offer ±20 dB of gain for perfectly dialing in saturation and distortion levels and all front-panel controls are stepped for easy and efficient recall of settings. The Carnaby 500 is extremely well outfitted for multi-module setups in 500-series racks, with auto-calibrated circuitry for perfect stereo matching, innovative OptoSync technology for wireless stereo linking of modules, and a 3.5mm TRS input for linking of non-adjacent modules.

Hi Band
The Hi band has a frequency range from 5 to 25 kHz and uses smooth saturation to naturally extend high frequencies beyond the audio band for ultimate air and breath on vocals and acoustic instruments.
Lo Band
The Lo band has a frequency range of 420 down to 20 Hz and uses hard-clipping saturation to extend sub-harmonic frequencies into the audible low-end�perfect for subtle low-end warming or extreme sub-harmonic saturation.
Mid Band
The Mid band is a peaking filter with a fixed Q and a wide sweepable frequency range from 200 Hz up to 6.2 kHz. It uses saturation to add harmonic emphasis to the source anywhere in the frequency range.
Stereo Linking via OptoSync
Carnaby 500 not only features a world-first EQ circuit, but it also has an innovative stereo-linking feature called OptoSync, which enables two Carnaby 500 units to work as a perfect stereo pair for mixes and stereo sources. Using OptoSync, all controls are synchronized from the left unit to the right without cables or internal fixings.

Switch OptoSync for all slave units to ON and their control's all synchronize to the master unit wirelessly using LED and optical communication. You can also use OptoSync to link together multiple units for applying the same sonic footprint across entire summing mixers or multi-channel surround mixes.

In the Box

  • Cranborne Audio Carnaby 500 Harmonic EQ Module
  • Limited 2-Year Manufacturer Warranty

Not in the Box

Additional Resources

Guides & Manuals

    Cranborne Audio CARNABY500Specs

    General
    Maximum Input Level
    +26 dBu
    Maximum Output Level
    +26 dBu
    Noise
    <-93 dBu (All Bands Bypassed)
    Input Impedance
    10 Kilohms
    Output Impedance
    150 Ohms
    Wireless
    Wireless
    Proprietary Wireless
    *Built-In
    Power
    Power Source
    Proprietary Interface (Built-In)
    Operating Current
    140 mA (Standby)
    160 mA (Maximum)
    Physical
    Mounting
    Front: 2x 500-Series Rackmount Hole
    Color
    Black
    Material of Construction
    Metal
    Dimensions
    6.6 x 5.2 x 1.2" / 16.8 x 13.2 x 3 cm
    Weight
    0.9 lb / 0.4 kg
    Packaging Info
    Package Weight
    1.815 lb
    Box Dimensions (LxWxH)
    10.5 x 8.5 x 3.8"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $260.41

    Original: $868.04

    -70%
    Cranborne Audio Carnaby 500 Harmonic EQ Module—

    $868.04

    $260.41

    More Images

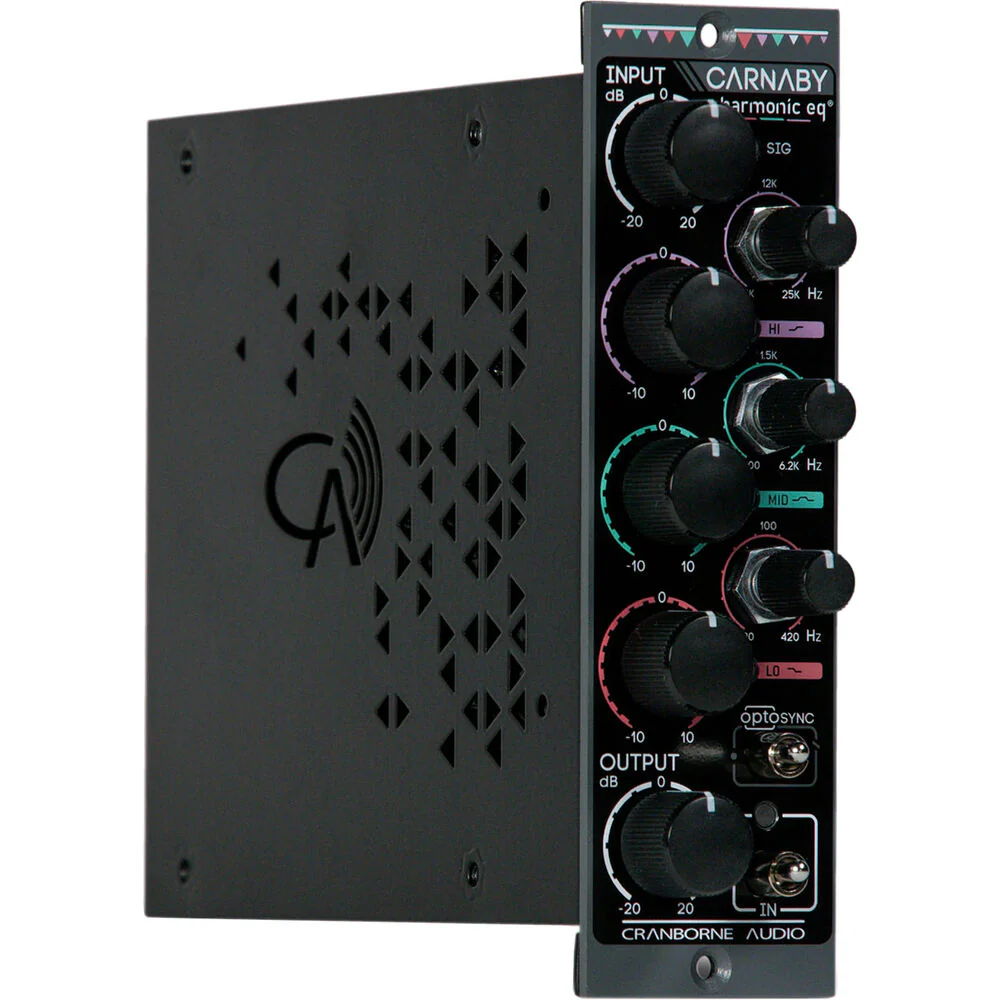

    Cranborne Audio Carnaby 500 Harmonic EQ Module - Image 2

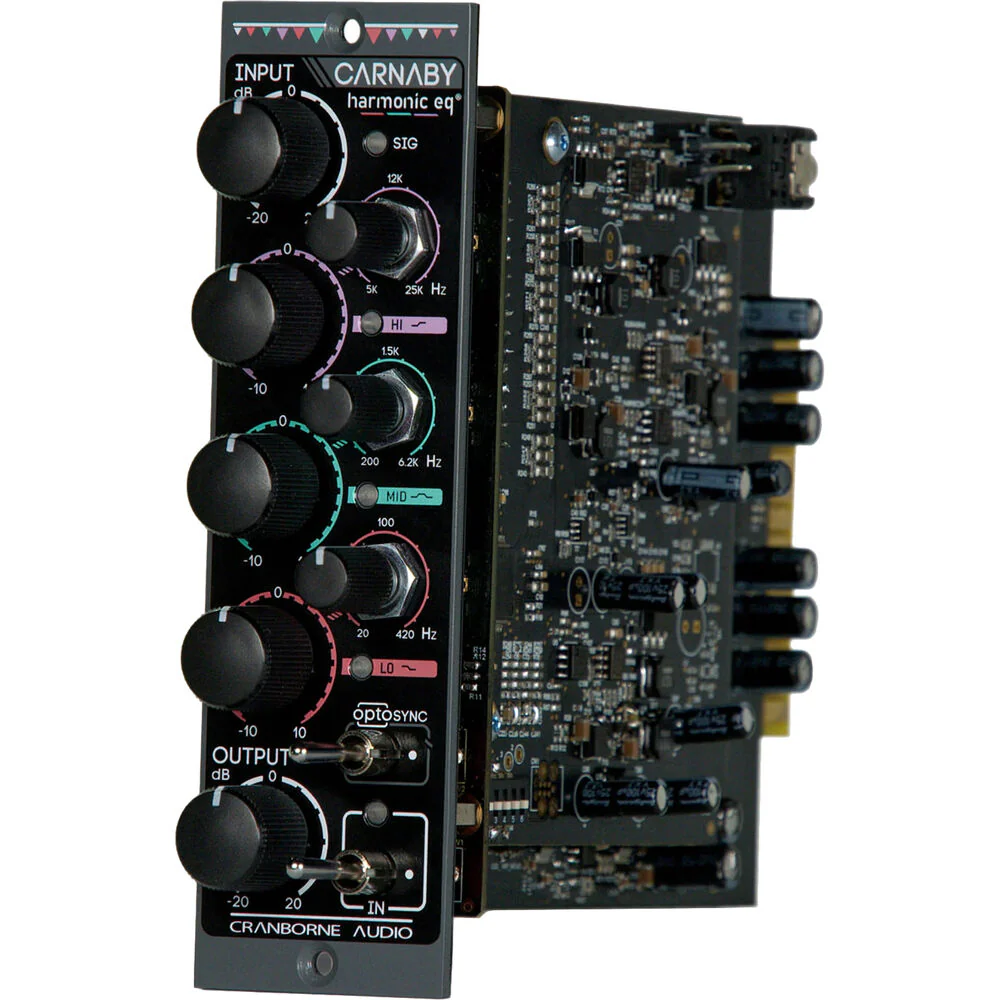

    Cranborne Audio Carnaby 500 Harmonic EQ Module - Image 3
