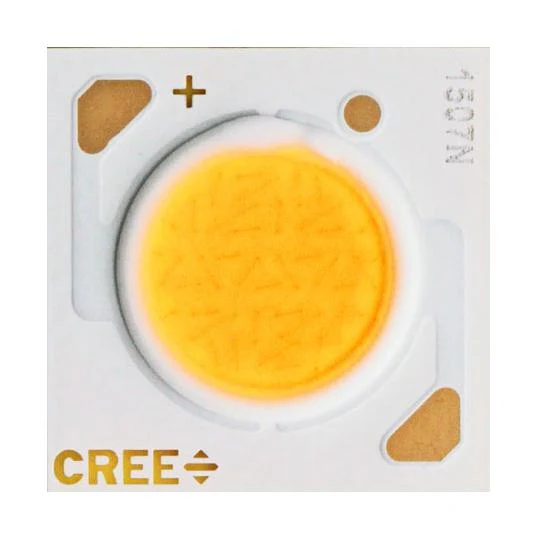

Cree CXA1507-0000-000N0YE230G LED Warm White 95 CRI Rating 14.8W 590lm 200mA 115° 35V 3000K SMD-2 Round Flat Top
Cree CXA1507-0000-000N0YE230G LED Warm White 95 CRI Rating 14.8W 590lm 200mA 115° 35V 3000K SMD-2 Round Flat Top
Product details
| COB Colour | Warm White |
| Color Rendering Index Max | 95 |
| Power Rating | 14.8W |
| Luminous Flux @ Test | 590lm |
| Forward Current @ Test | 200mA |
| Viewing Angle | 115° |
| Forward Voltage VF Typ | 35V |
| Nominal CCT (K) | 3000K |
| COB Length | 15.85mm |
| COB Width | 15.85mm |
| Opto Case Style | SMD-2, No Lead |
| Lumens / Watt @ Current Test | 84.28lm/W |
| Light Emitting Surface | 9mm |
| Lens Type | - |
| Lens Shape | Round with Flat Top |
| Height | 1.7mm |
| Product Range | XLamp EasyWhite CXA1507 Series |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | CREE |
| Part Number | CXA1507-0000-000N0YE230G |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
