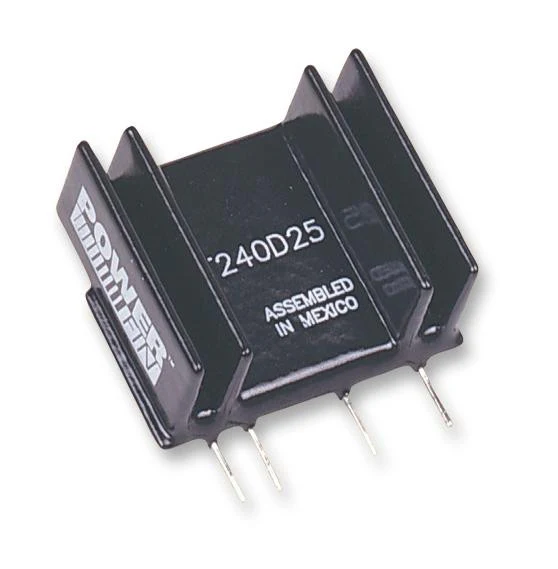

CRYDOM PF240D25 Solid State Relay, PowerFin / PF Series, SIP, SPST-NO, 25 A, 280 VAC, PCB, Through Hole

The PF240D25 is a 1-phase Solid State Relay with thermally conductive epoxy encapsulation, SPST-NO contact, zero crossing switching mode and through hole terminals. This PF-series PCB mount relay features integral heat sink gives a ultra high steady current rating, high blocking voltage and low leakage current.

DC control
SCR output for heavy industrial loads
1.6Vpk Maximum on-state voltage drop
300R Nominal input impedance
4000Vrms Dielectric strength
1/2 cycle ms Turn-on/off maximum time
-30 to 80°C Ambient operating temperature range

Applications

Industrial

Warnings

Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.

Product details

Relay Mounting	PCB
Control Voltage Max	15VDC
Load Current	25A
Control Voltage Min	3VDC
Product Range	PowerFin / PF Series
Relay Terminals	Through Hole
Operating Voltage Min	12VAC
Switching Mode	Zero Crossing
Contact Configuration	SPST-NO
Operating Voltage Max	280VAC

Other details

Brand	CRYDOM
Part Number	PF240D25
Quantity	Each
Technical Data Sheet EN
Drawing EN
