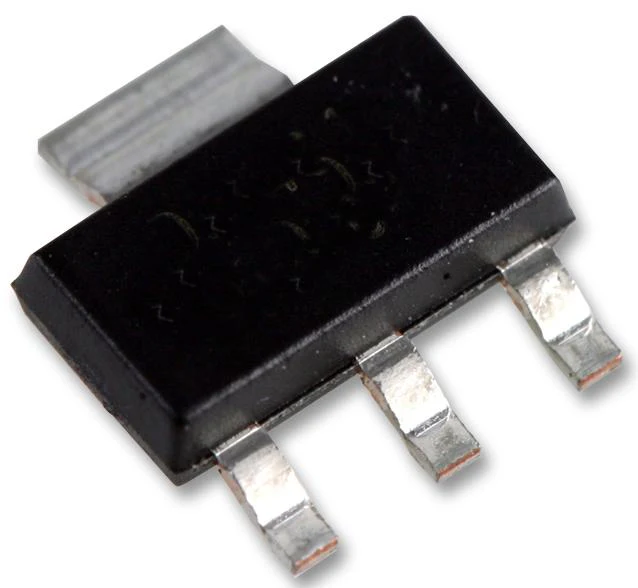

DIODES INC FZT853 Bipolar (BJT) Single Transistor, NPN, 100 V, 130 MHz, 3 W, 6 A, 200 hFE
- High continuous collector current
- Low saturation voltages
- hFE specified up to 10A for a high gain hold-up
- Complementary PNP type FZT953
- AEC-Q101 qualified
- UL94V-0 Flammability rating
Applications
Automotive, Aerospace, Defence, Military
Warnings
Product details
| Power Dissipation Pd | 3W |
| DC Collector Current | 6A |
| Collector Emitter Voltage V(br)ceo | 100V |
| Transition Frequency ft | 130MHz |
| Operating Temperature Max | 150�C |
| Transistor Polarity | NPN |
| DC Current Gain hFE | 200hFE |
| No. of Pins | 4Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Transistor Case Style | SOT-223 |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | DIODES INC |
| Part Number | FZT853 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Application Note EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
