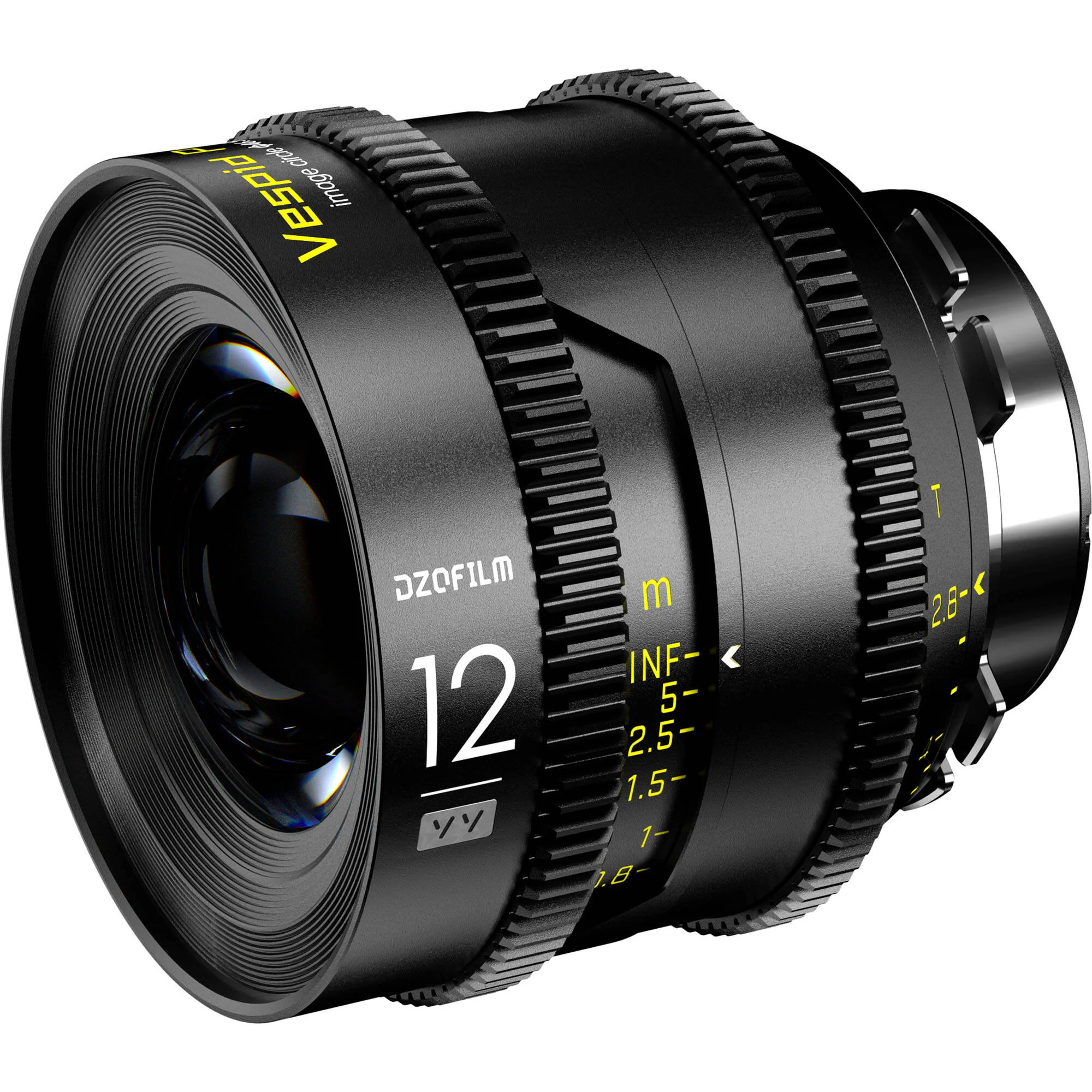

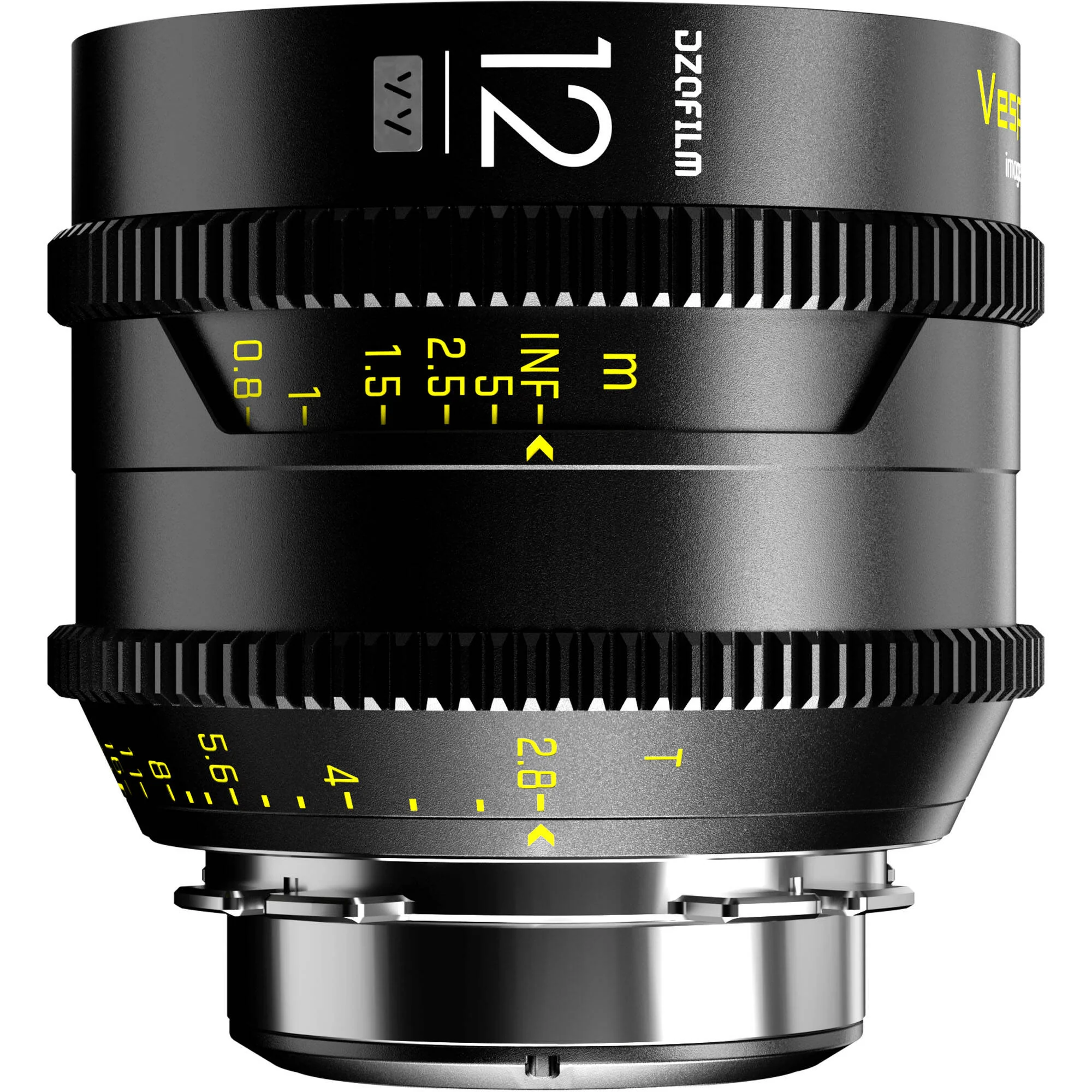

DZOFilm VESPID 12mm T2.8 Cine Lens (ARRI PL & Canon EF)
DZOFilm VESPID 12mm T2.8 Overview
Relatively small and lightweight, the DZOFilm VESPID 12mm T2.8 Lens is part of the VESPID series of lenses from DZOFilm and is well suited for independent and high-end full-frame cinematography. The lens has an 80mm front diameter, allowing it to work with virtually any cine-style matte box. The small size makes this lens an attractive option when working with drones and gimbals, as well as when shooting handheld or run-and-gun. Sporting an interchangeable ARRI PL mount, this fully manual lens works with cameras that have a PL or EF mount with the included Canon EF mount. The full-frame coverage of the lens supports sensors that have an image circle up to 46.5mm for use on cameras with sensors up to full-frame without vignetting.
The 10-blade iris creates round out-of-focus highlights that have a more natural appearance and contribute to the lens's natural-looking bokeh. The focus ring features 270° of rotation for precise focus pulls, and the iris ring has a generous 75° of rotation. The lens has a magnetically attached rear filter for ND filters.
In the Box
- DZOFilm VESPID 12mm T2.8 Cine Lens (ARRI PL & Canon EF)
- EF Mount Tools
- Front Lens Cap
- Rear Lens Cap
- Limited 1-Year Manufacturer Warranty
DZOFilm VESPID 12mm T2.8 Specs
| Focal Length |
12mm
|
| Maximum Aperture |
T2.8
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
Full Frame
|
| Filter Thread |
77 mm
|
| Image Stabilization |
No
|
| Electronic Communication |
No
|
| Maximum Aperture |
T2.8
|
| Minimum Aperture |
T22
|
| Lens Mount |
ARRI PL
|
| Interchangeable Mount |
Yes
|
| Lens Format Coverage |
Full Frame
|
| Image Circle |
46.5 mm
|
| Angle of View |
Not Specified by Manufacturer
|
| Focus Scales |
Metric, Imperial
|
| Optical Design |
15 Elements in 10 Groups
|
| Filter Thread |
77 mm
|
| Minimum Focus Distance |
From Camera Sensor: 7.9" / 0.2 m
|
| Maximum Magnification Ratio |
Not Specified by Manufacturer
|
| Diaphragm Blades |
10
|
| Image Stabilization |
No
|
| Gear Standard |
Not Specified by Manufacturer
|
| Gear Rotation |
Focus 270°
Iris 75° |
| Electronic Communication |
No
|
| Diameter |
3.1" / 80 mm
|
| Length |
2.8" / 72 mm
|
| Weight |
25.6 oz / 725 g
|
| Package Weight |
2.405 lb
|
| Box Dimensions (LxWxH) |
10.1 x 5.2 x 4.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
