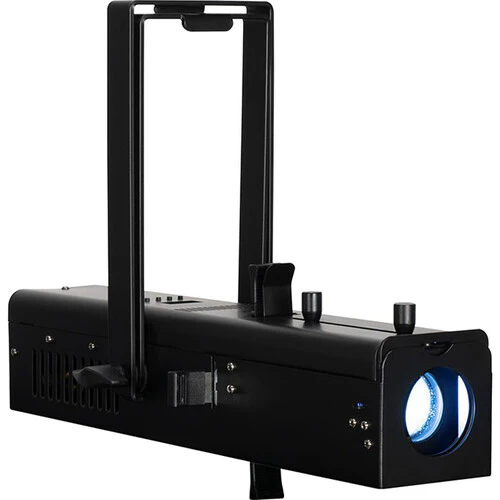

Eliminator Lighting Ikon Profile Plus 40W LED Gobo Projector
Eliminator Lighting Ikon Profile Plus Overview
Add texture to your lighting setup with the American DJ Ikon Profile Plus , a high-output, single GOBO projector that doubles as an effective spotlight and is well suited for houses of worship, nightclubs, bars, stage productions, and event retail outlets. The fixture is powered by a 40W, 9500K white LED engine that uses high-quality optics for crisp and clear projection. The unit's brightness and strobing can be controlled via DMX or via the included UC-IR remote.
The Ikon Profile Plus includes one textured glass gobo and four metal gobos. Users may also easily insert custom gobos in the fixture's gobo slot on the top of the fixture and can control the beam angle (zoom) and focus. The beam angle is adjustable from 15 to 30°, making it versatile for a wide variety of applications. The unit includes powerCON power in/out and 3-pin DMX XLR in/out for daisy chaining data, control signals, and power to several units. The Ikon Profile Plus ships with a power cord, dual-yoke mounting bracket, an UC-IR wireless remote, and a gel filter.
- 40W white LED source (9500K) at 50,000 hours
- High-quality optics�clear powerful output
- Adjustable beam angle: 15-30°
- Manually adjustable focus
- 4 manually adjustable framing shutters
- Drop in gobo slot for metal or glass gobos
- Color frame for color filters
- Run all night�no duty cycle
- Compatible with UC IR wireless remote control (included)
- 2 DMX channel modes (3 Ch, 4 Ch)
- Digital display with 4-button function menu
- RDM (Remote Device Management)
- 0-100% Dimming
- Strobe and pulse effects
- 6 dimmer curves
- Wired Digital Communication Network
- Safety eyelet on rear
- Daisy chain power (up to 14 Ikon Profile Plus at 120V and 24 Ikon Profile Plus at 230V)

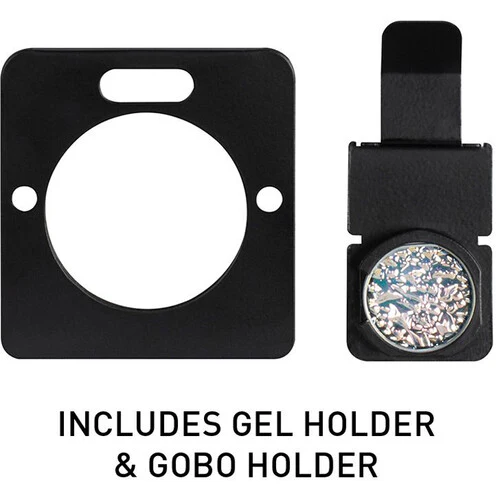

- Includes 1 Glass Gobo, 4 Metal Gobo's and 1 Gobo holder
- Gel filter
- Includes scissor yoke to mount on a wall or hang from trussing
- Locking power cord
In the Box
- Eliminator Lighting Ikon Profile Plus 40W LED Gobo Projector
- Dual-Yoke Bracket
- 4 x Metal Gobos
- Textured Glass Gobo (Installed)
- Gobo Holder
- Gel Filter
- UC-IR Wireless Remote
- Locking Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
Eliminator Lighting Ikon Profile PlusSpecs
| Fixture Type |
Gobo Projector
|
| Light Source |
1x White LED - 40 W
|
| Colors |
White
|
| Beam Angle |
15 to 30°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
44 W
|
| Mounting |
Dual/Scissor Yoke
|
| Fixture Type |
Gobo Projector
|
| Light Source |
1x White LED - 40 W
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
White
|
| Color Temperature |
9500K
|
| Beam Angle |
15 to 30°
|
| Iris |
No
|
| Focus |
Manual
|
| Dimming |
Electronic, 0 to 100% with 6 Dimmer Modes
|
| Operating Modes |
DMX, Standalone
|
| Macros / Programs |
No
|
| Effects |
Strobe (Variable Speed)
Pulse (Variable Speed) |
| Gobos |
1x Removable Glass Gobo
4x Removable Metal Gobo |
| Gobo Size |
Outer Diameter: 1.06" / 26.8 mm
Max Image Size: 0.9" / 22.86 mm |
| Control Protocols |
DMX512
|
| DMX Channel Modes |
2 Mode(s):
3 / 4-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
IR Remote (with Included Equipment)
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
2 x XLR 3-Pin DMX Input/Output
|
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON Plug Type: NEMA 5-15 |
| Power / Current Consumption |
44 W
|
| Power Linking |
14 Units at 120 VAC
24 Units at 230 VAC |
| Environmental Resistance |
No
|
| Mounting |
Dual/Scissor Yoke
|
| Included Accessories |
1x Gel Frame
1x Power Cable 4x Barn Doors |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Certifications |
CE, ETL
|
| Dimensions |
17.75 x 6 x 5" / 450.85 x 152.4 x 127 mm
|
| Weight |
6 lb / 2.7 kg
|
| Package Weight |
7.31 lb
|
| Box Dimensions (LxWxH) |
20.5 x 8.3 x 7.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
