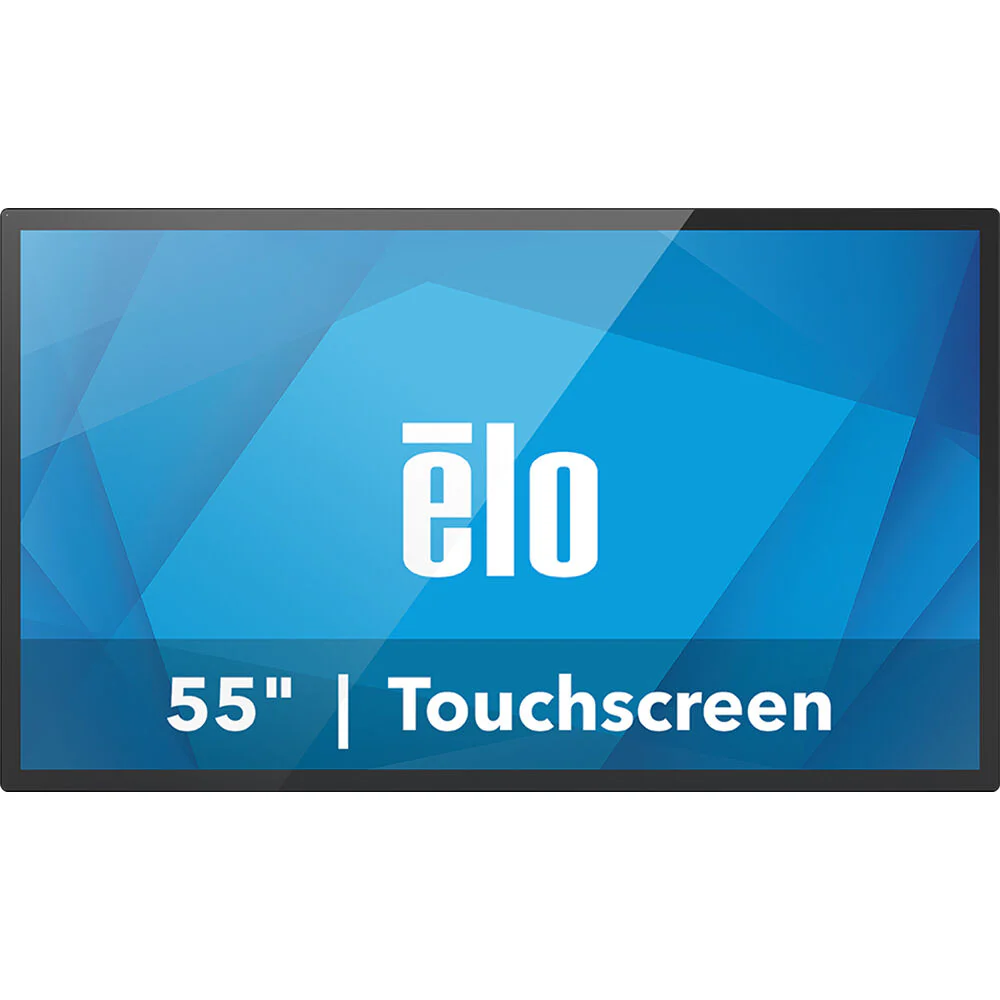

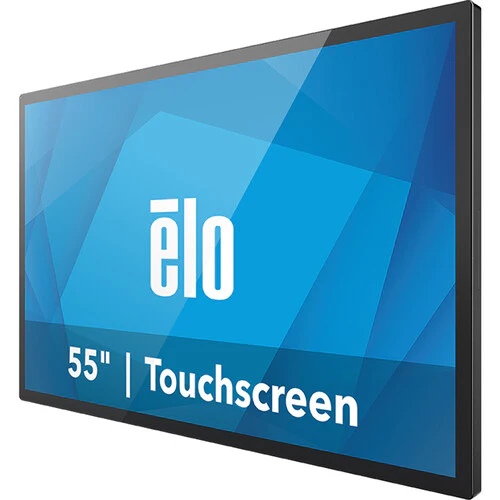

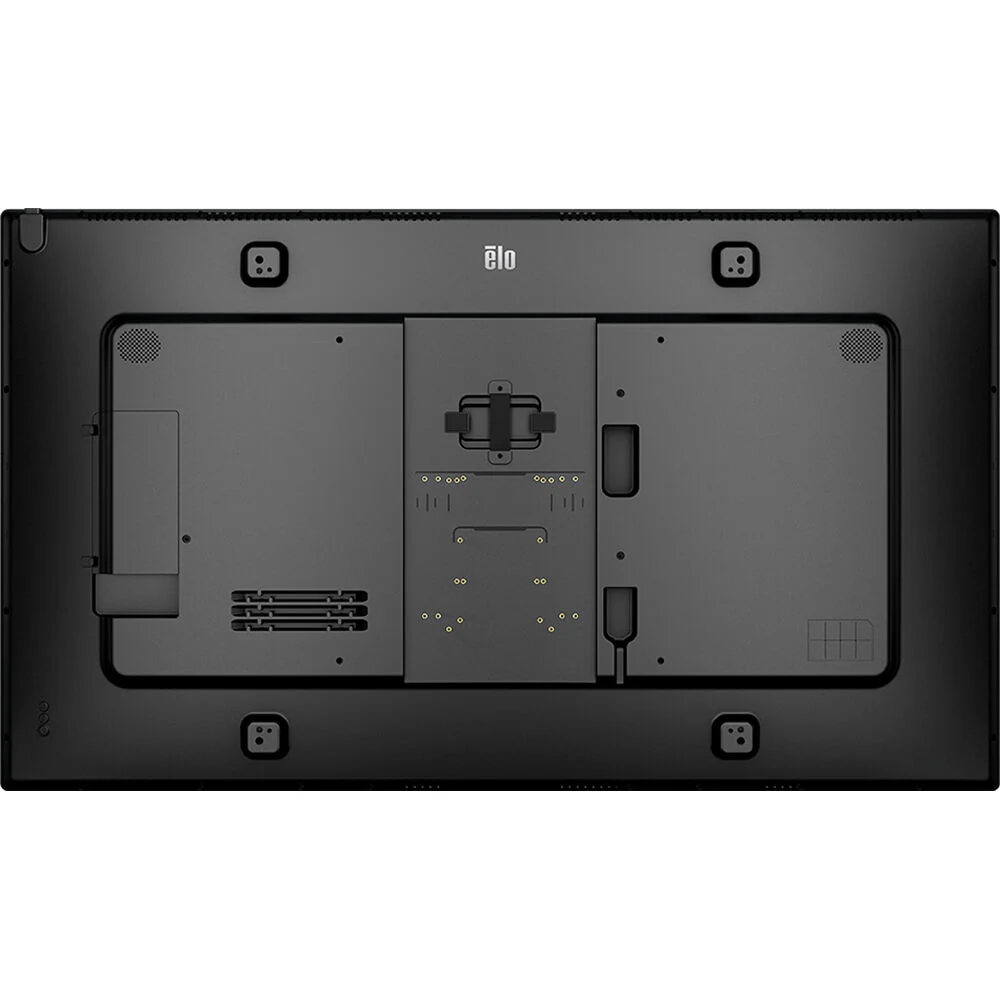

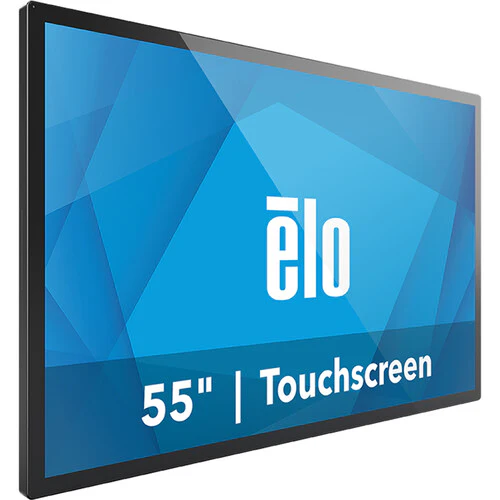

Elo Touch 5554L 55" UHD 4K Commercial Monitor with Infrared Touch & Anti-Glare Screen
Elo Touch 5554L Overview
Experience reliable interactive digital signage with the 5554L 55" UHD 4K Commercial Monitor with Infrared Touch & Anti-Glare Screen from Elo Touch. This display features up to 20 points of simultaneous touch, with 24/7 operation capability, and landscape, portrait, and tabletop orientation support, making it well suited to self-service kiosks, wayfinding, and other interactive applications in shopping malls, hospitals, transportation hubs, and more.
Connect external devices via HDMI 2.0, DisplayPort, and USB-C inputs. Four micro-USB connections are compatible with Elo Edge Connect peripherals, such as the 4K Conference Camera, Fingerprint Scanner, and 2D Barcode Scanner. Featuring a minimalistic design with rear mounting for compact VESA PCs and the included power brick, along with integrated cable management, and external PC power passthrough, the 5554L offers a clean, all-in-one interactive commercial display solution
- Built-in dual 10W speakers
- Ambient light sensor
- Auto wake
- Wake by IoT
- UL-60950 and IK-07 compliance
Items Included
- Elo Touch 5554L 55" UHD 4K Commercial Monitor with Infrared Touch & Anti-Glare Screen
- AC Power Cable
- USB-C Cable (3.2')
- Limited 3-Year Manufacturer Warranty
Additional Resources
Elo Touch 5554L Specs
| Display Size |
55"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
450 nits / cd/m2
|
| Touchscreen Technology |
Infrared (IR)
|
| Inputs |
2x HDMI 2.0
1x DisplayPort 1.4 |
| Outputs |
1x 1/8" / 3.5 mm (Headphone)
|
| Wireless |
Wi-Fi
*Via Optional Adapter |
| USB I/O |
1x USB-C (Unspecified Version) (Audio/Video/Control/Touchscreen Control)
4x Micro-USB 2.0 (Control) 1x USB-A (Unspecified Version) |
| Ethernet I/O |
2RJ45
|
| Other I/O |
1x 1/8" / 3.5 mm Serial (RS-232C) Control Input
|
| Built-In Speakers |
Yes, 2x 10 W
|
| Media Card Reader |
No
|
| Display Size |
55"
|
| Panel Type |
TFT LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Face-Up, Landscape, Portrait
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
450 nits / cd/m2
|
| Contrast Ratio |
1100:1
|
| Response Time |
8 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors
|
| Viewing Angle (H x V) |
178 x 178°
|
| Screen Area |
47.6 x 26.8" / 1209.6 x 680.4 mm
|
| Horizontal Frequency |
30 to 135 kHz
|
| Vertical Frequency |
24 to 64 Hz
|
| Pixels Per Inch (ppi) |
80 ppi
|
| Finish |
Anti-Glare / Matte
|
| Touchscreen Technology |
Infrared (IR)
|
| Multi-Touch Points |
20
|
| TV Tuner |
No
|
| Inputs |
2x HDMI 2.0
1x DisplayPort 1.4 |
| Outputs |
1x 1/8" / 3.5 mm (Headphone)
|
| HDCP Support |
Yes
|
| Wireless |
Wi-Fi
*Via Optional Adapter |
| NFC |
No
|
| USB I/O |
1x USB-C (Unspecified Version) (Audio/Video/Control/Touchscreen Control)
4x Micro-USB 2.0 (Control) 1x USB-A (Unspecified Version) |
| Ethernet I/O |
2RJ45
|
| Other I/O |
1x 1/8" / 3.5 mm Serial (RS-232C) Control Input
|
| Ambient Light Sensor |
Yes
|
| Built-In Speakers |
Yes, 2x 10 W
|
| Speaker Configuration |
2-Channel
|
| Mobile App Compatible |
No
|
| Media Card Reader |
No
|
| Built-In Mic |
No
|
| Supported Languages |
English
French German Italian Japanese Korean Russian Simplified Chinese Spanish Traditional Chinese |
| Power Consumption |
Operational: 110.7 W
Standby: < 2.0 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 95% Humidity
|
| Certifications |
ENERGY STAR 8.0, FCC, CEC, cUL, IC, CB, CE, VCCI, RCM, CCC, RoHS, NOM, UL60950
|
| Mounting-Hole Pattern |
400 x 400 mm, 600 x 600 mm
|
| Lighting Lifespan |
50000 Hours
|
| Impact Resistance |
Impact-Resistant (IK07)
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
50.1 x 29.2 x 2.8" / 1271.8 x 742.6 x 70 mm
|
| Weight |
66.47 lb / 30.15 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Original: $5,386.24
-70%$5,386.24
$1,615.87More Images
