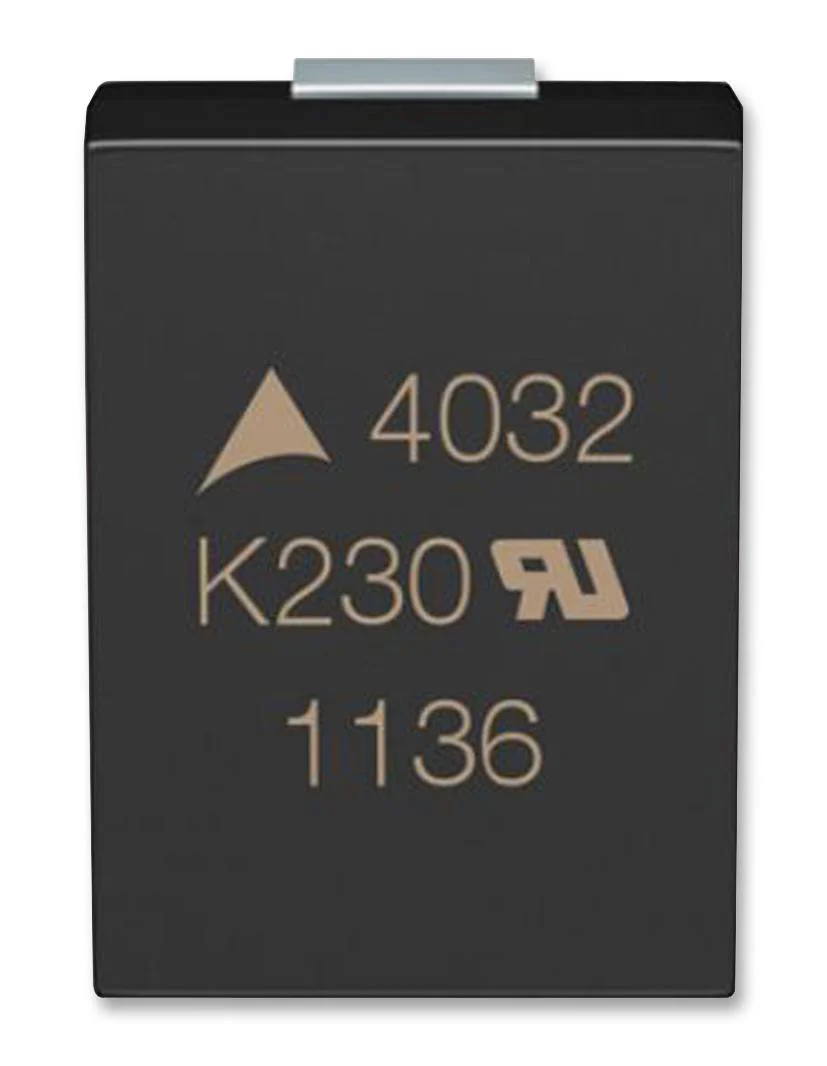

EPCOS B72650M0271K072 TVS Varistor, 275 V, 350 V, B726 Series, 710 V, 3225, Metal Oxide Varistor (MOV)
EPCOS B72650M0271K072 TVS Varistor, 275 V, 350 V, B726 Series, 710 V, 3225, Metal Oxide Varistor (MOV)
The B72650M0271K072 from Epcos is a standard series SMD disk varistor. This device is used for overvoltage protection and transient suppression in control electronics, detectors, sensors, touch screens, plug-in cards and remote controls.
- Electrical equivalents to leaded types SIOV-S05/S07
- Maximum RMS operating voltage of 275V and DC operating voltage of 350V
- Surge current of 400A (8/20µs)
- Maximum energy absorption of 8.6J
- Maximum power dissipation of 100W
- UL and CSA approved
- Encapsulated cylindrical varistor element
- UL 94 V-0 rated flame retardant thermoplastic encapsulation
- Tinned copper alloy termination
- Operating temperature range from -40°C to 85°C
Applications
Industrial, Consumer Electronics, Communications & Networking, Safety
Footnotes
Always connect the device in parallel with electronic circuit to be protected.
Warnings
The surface temperature of an operating varistor can be higher. Ensure that adjacent components are placed at sufficient distance from this device to allow proper cooling.
Product details
| Operating Temperature Min | -40°C |
| Clamping Voltage Vc Max | 710V |
| Peak Surge Current @ 8/20µs | 400A |
| Voltage Rating V DC | 350V |
| Operating Temperature Max | 85°C |
| Varistor Case Style | 3225 |
| Product Range | B726 Series |
| Automotive Qualification Standard | - |
| Varistor Type | Metal Oxide Varistor (MOV) |
| Peak Energy (10/1000uS) | 8.6J |
| Voltage Rating V AC | 275V |
Other details
| Brand | EPCOS |
| Part Number | B72650M0271K072 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
