Erica Synths MIDI DISPATCH (THRU BOX II) 1x8 MIDI Splitter and Interface
HomeStore

Erica Synths MIDI DISPATCH (THRU BOX II) 1x8 MIDI Splitter and Interface

Erica Synths MIDI DISPATCH (THRU BOX II) 1x8 MIDI Splitter and Interface

Erica Synths midi dispatch Overview

Control up to 8 devices from a master keyboard controller or sequencer with the erica synths MIDI Dispatch, the successor to the original MIDI Thru Box. The MIDI Dispatch is an ultra-low latency splitter delivering one input to eight outputs with advanced MIDI filtering options. It allows for connecting up to eight instruments to your MIDI keyboard, sequencer, or directly to your laptop via USB-C. The easy-to-use web-based configuration interface allows you to adjust each output separately, allowing for high flexibility in any studio or live setting.

  • Successor to the original MIDI THRU BOX
  • Ultra-low latency MIDI signal splitting
  • USB-C port for computer connection (MIDI over USB)
  • Per-output MIDI filtering and routing
  • Easy-to-use web-based configuration interface
  • Powered via USB-C or 12 VDC input
  • 8 independent MIDI outputs

Items Included

  • Erica Synths MIDI DISPATCH (THRU BOX II) 1x8 MIDI Splitter and Interface
  • 12 VDC Power Supply
  • USB-A to USB-C Cable
  • Limited 2-Year Manufacturer Warranty

Additional Resources

    Erica Synths midi dispatch Specs

    Key Specs
    Interface Type
    USB MIDI Interface
    MIDI I/O
    1x DIN 5-Pin Input
    8x DIN 5-Pin Output
    USB
    1x USB-C 3.0 / 3.1/3.2 Gen 1
    Other I/O
    No
    System Connection / USB
    1x USB-C
    Power Requirements
    AC/DC Power Adapter (Included), USB Bus Power
    Standalone Operation
    Yes: Splitter
    Activity Indicators
    1x Power LED
    1x MIDI In/Out LED
    Connectivity
    MIDI I/O
    1x DIN 5-Pin Input
    8x DIN 5-Pin Output
    USB
    1x USB-C 3.0 / 3.1/3.2 Gen 1
    Other I/O
    No
    System Connection / USB
    1x USB-C
    Daisy Chain/Multi-Unit Support
    No
    Wireless
    No
    Sync Sources
    No
    Power
    Power Requirements
    AC/DC Power Adapter (Included), USB Bus Power
    AC Input Power
    110 to 220 VAC, 50/60 Hz
    Power Supply Output
    12 VDC
    Current Consumption
    100 mA
    Physical
    Dimensions
    8.7 x 1.9 x 1.4" / 222 x 48 x 35 mm
    Weight
    1.1 lb / 0.5 kg
    Packaging Info
    Package Weight
    0.725 lb
    Box Dimensions (LxWxH)
    10.05 x 3.05 x 2.1"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $82.60

    Original: $275.33

    -70%
    Erica Synths MIDI DISPATCH (THRU BOX II) 1x8 MIDI Splitter and Interface—

    $275.33

    $82.60

    More Images

    Erica Synths MIDI DISPATCH (THRU BOX II) 1x8 MIDI Splitter and Interface - Image 2

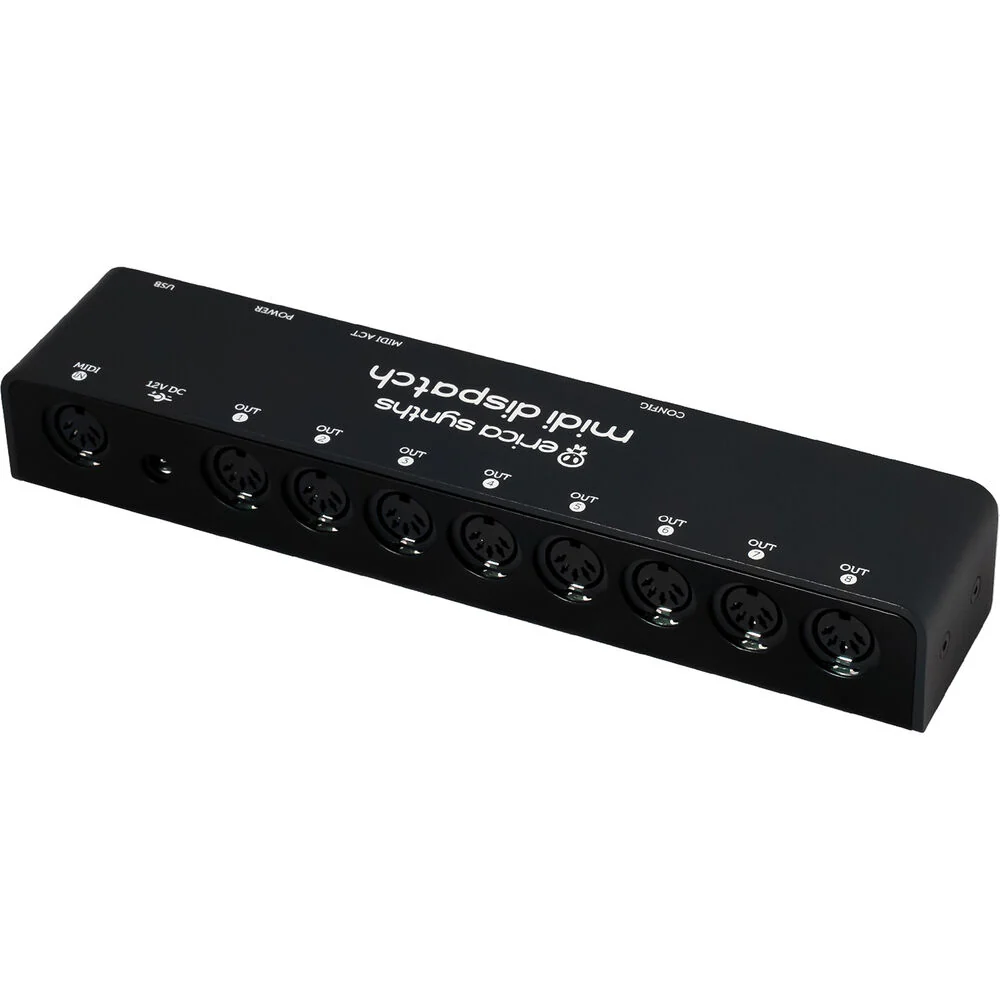

    Erica Synths MIDI DISPATCH (THRU BOX II) 1x8 MIDI Splitter and Interface - Image 3

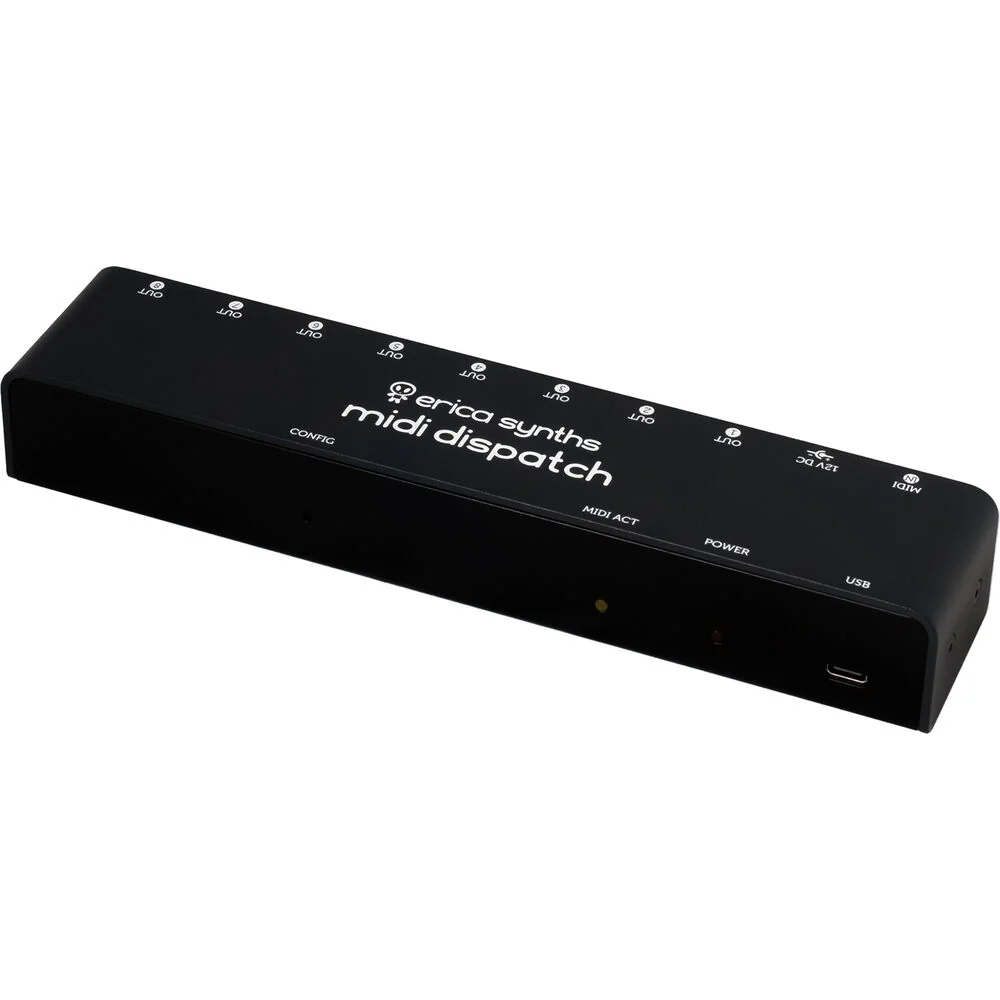

    Erica Synths MIDI DISPATCH (THRU BOX II) 1x8 MIDI Splitter and Interface
