Flock Audio PATCH LT 32-Channel Digital/Analog Patch System

Flock Audio PATCH LT 32-Channel Digital/Analog Patch System

Flock Audio PATCH LT Overview

Route and digitally control 16 analog audio inputs and 16 outputs with the PATCH LT 32-Channel Digital/Analog Patch System from Flock Audio. This 32-channel rackmount patching system offers a Neutrik XLR/TRS combo jack input and a Neutrik XLR male output, along with standard Tascam 25 pinout wiring format using four DB-25 / D-Sub connectors. and USB host connectivity. A USB-B host connector provides vast compatibility with a wide range of control devices while a blue LED indicator provides the power status device.

Employing the PATCH APP software application, which is compatible with both Windows and Mac operating systems, the unit facilitates the control and routing of analog audio signals without the need of manual patch cables. The use of digital technology over analog audio is a unique feature that singles out the PATCH LT as an essential centerpiece hub of any audio processing setup. The package includes a 24 VDC power supply with a dedicated power IEC cord and a 10' USB-A to USB-C cable.

Front Panel Inputs and Outputs
The PATCH LT hardware allows users to redirect 16 input and/or 16 outputs from the rear side of the system to the front panel for easy access and integration of external analog audio equipment.
Multiple Unit Analog Connections
When connecting multiple hardware units together for multi-PATCH system configurations, choose which connections you want to configure in order to send and/or receive analog audio signals between multiple PATCH hardware units.
Windows and Mac Compatible

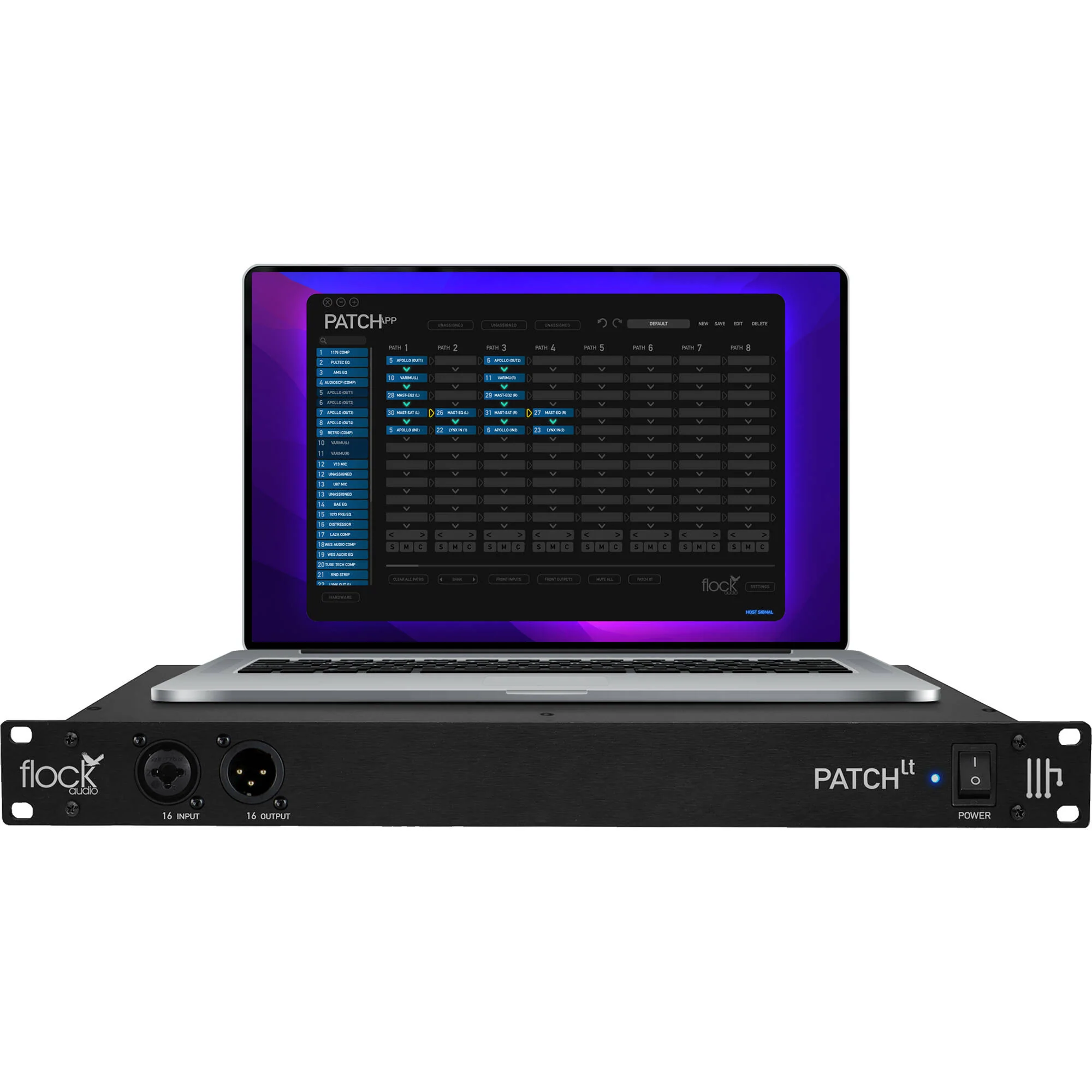

The PATCH APP software application is compatible with Windows and Mac operating systems.The app shows audio signal flows from top to bottom. Signal flows are divided into single vertical columns, allowing you to drag and drop available analog audio equipment connected to the PATCH hardware component.

Items Included

  • Flock Audio PATCH LT 32-Channel Digital/Analog Patch System
  • 24 VDC Power Adapter
  • IEC Power Cord
  • USB-A to USB-C Cable (10')
  • Limited 1-Year Manufacturer Warranty

Additional Resources

    Flock Audio PATCH LT Specs

    General
    Compatibility
    Flock Audio EcoSystem
    Inputs/Outputs
    USB I/O
    1 x USB-B Integrated Male Input
    Audio I/O
    1x Combo XLR-1/4" 3-Pin Input (16-Channel)
    1x Combo XLR-1/4" 3-Pin Output (16-Channel)
    Other I/O
    1 x DB-25/D-Sub Input (Channels 1-8)
    1 x DB-25/D-Sub Input (Channels 9-16)
    1 x DB-25/D-Sub Output (Channels 1-8)
    1 x DB-25/D-Sub Output (Channels 9-16)
    Power
    Power Source
    AC Adapter with Power Brick (Included)
    AC Input Power
    110 to 220 VAC, 50 / 60 Hz
    DC Input Power
    24 VDC at 4 A
    Physical
    Mounting
    4x Rack Screw
    Color
    Black
    Certifications
    CE, FCC, RoHS
    Dimensions
    19 x 9 x 1.7" / 482 x 227.4 x 43.8 mm
    Weight
    6.6 lb / 3 kg
    Packaging Info
    Package Weight
    11.51 lb
    Box Dimensions (LxWxH)
    27.6 x 12.3 x 5.1"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
