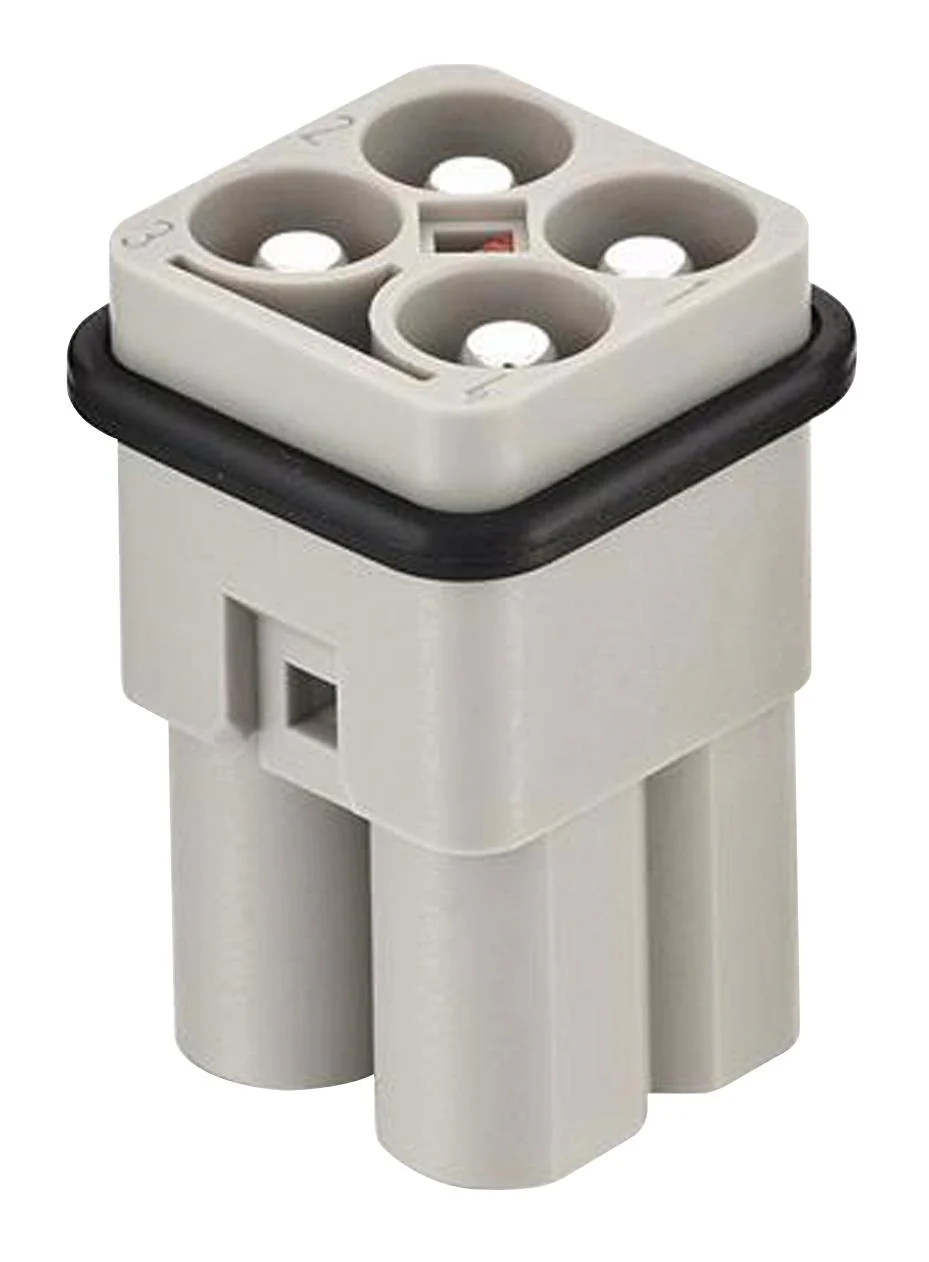

Harting 09120043051 Heavy Duty Connector Han Q Insert 4 Contacts 3A Plug Crimp Pin - Not Supplied
Harting 09120043051 Heavy Duty Connector Han Q Insert 4 Contacts 3A Plug Crimp Pin - Not Supplied
- Han® Q 4/0 crimp termination
- 4 contact, 3A size
- 1.5 to 10mm² conductor cross-section
- Voltage rating is 830V, current rating is 40A
- Contact resistance is <=1mohm
- Limiting temperature range from -40 to +125°C
- Mating cycles is >=500
- RAL 7032 (pebble grey) polycarbonate insert
Other details
| Brand | HARTING |
| Part Number | 09120043051 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $22.11
-70%$22.11
$6.63Harting 09120043051 Heavy Duty Connector Han Q Insert 4 Contacts 3A Plug Crimp Pin - Not Supplied
- Han® Q 4/0 crimp termination
- 4 contact, 3A size
- 1.5 to 10mm² conductor cross-section
- Voltage rating is 830V, current rating is 40A
- Contact resistance is <=1mohm
- Limiting temperature range from -40 to +125°C
- Mating cycles is >=500
- RAL 7032 (pebble grey) polycarbonate insert
Other details
| Brand | HARTING |
| Part Number | 09120043051 |
| Quantity | Each |
| Technical Data Sheet EN | |
| CAD Multiple Formats EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
