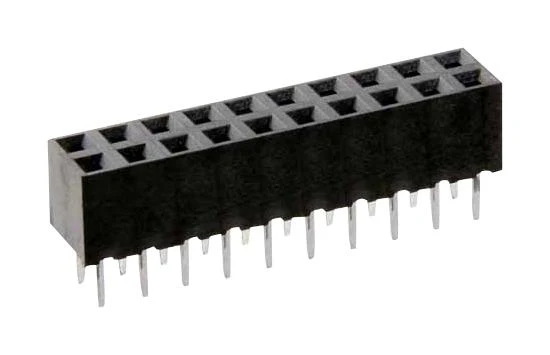

Harwin M22-7141042 M22-7141042 PCB Receptacle Board-to-Board 2 mm Rows 20 Contacts Through Hole Mount M22

The M22-7141042 is a 20-contact 2mm female DIL Board-to-board Socket with gold plated phosphor bronze contacts, 100% tin over nickel plated termination and black UL94V-0 LCP housing. The M22 series receptacle has solder tails, vertical connector orientation, PC tail/through board connection type and top entry style. It is suitable for use with 0.5mm square mating pin size. Suitable for interconnecting board to board.

• 2A AC/DC Current rating
• 20mR Maximum contact resistance
• 5000MR Minimum insulation resistance
• 500V AC for one minute Dielectric withstand

Applications

Commercial, Industrial

Other details

Brand	HARWIN
Part Number	M22-7141042
Quantity	Each
Product Change Notice EN
3D Product Image EN
Drawing EN
Manufacturer Catalogue EN
