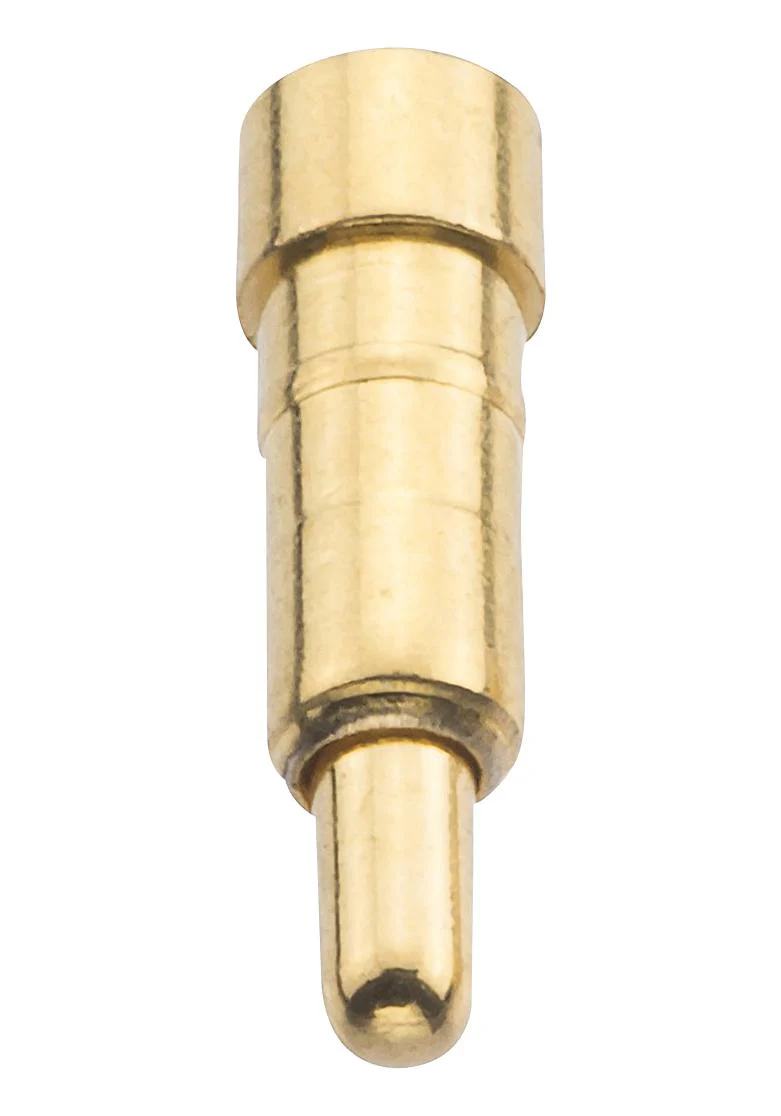

Harwin P70-1100045R P70-1100045R Contact Connector SMT Spring Loaded Pin Point 2 A 6.3 mm

The P70-1100045R from Harwin is a surface mount single spring loaded contact. It can also refer as pogo pins and it is used for individual contacts or irregular layout requirements. This spring loaded contact mates with any contact surface or S70 series SMT contact pads. It has gold finish for improved wear resistance.

• 6.3mm free height
• Contact gender is female/spring contact
• Vertical connector orientation
• Spring force of 1.23N ±0.34N at 5mm working height
• Current rating of 2A
• Operating temperature range from -40°C to +85°C
• Maximum soldering temperature of 260°C for 10seconds

Product details

Connector Type	Spring Loaded Pin
Centreline Spacing	-
Connector Tip Style	Point
Current Rating	2A
Overall Length	6.3mm
Spring Force Initial	-
Spring Force Working Travel	-
Product Range	-

Other details

Brand	HARWIN
Part Number	P70-1100045R
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
