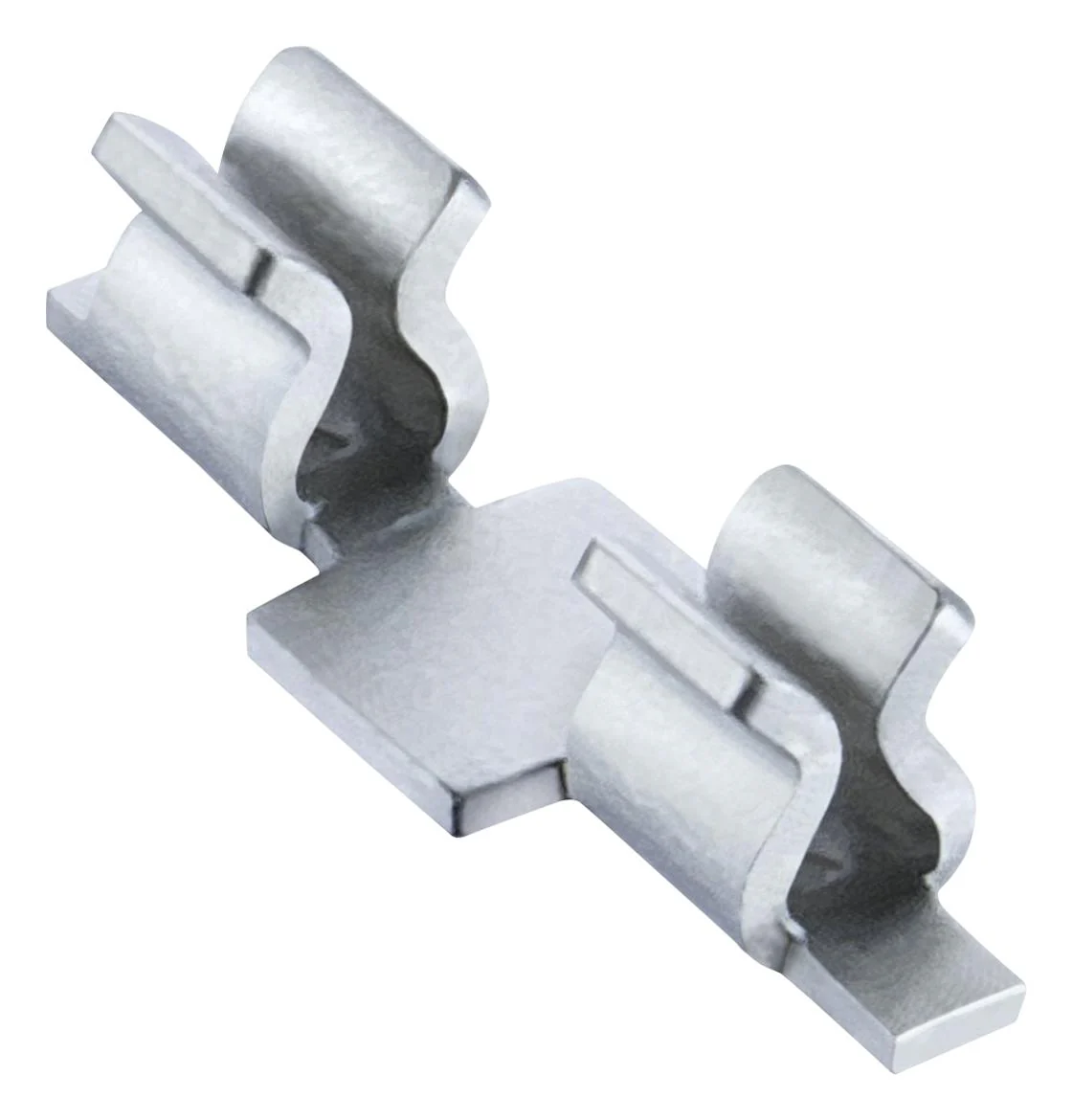

Harwin S0941-46R S0941-46R Shield Clip RFI Micro Stainless Steel Surface Mount 4mm x 1mm Size
Harwin S0941-46R S0941-46R Shield Clip RFI Micro Stainless Steel Surface Mount 4mm x 1mm Size
- SMT RFI shield clip for EMI/RFI shields, micro
- Micro size (3.6mm long, 1mm high), for shield thickness 0.135-0.16mm
- Tin finish on contact area and termination
- Recommended for use with S03-10100300, S03-15100300 or S03-30100300 shield cans
- Top entry
- Operating temperature range from -40°C to +85°C
- Vertical connector orientation
- Stainless steel base material of contact
- 3.9mm x 1.1mm x 1mm overall dimension (L x W x D)
Product details
| Clip Type | RFI Shield Clip |
| Clip Diameter | - |
| Mounting Hole Dia | - |
| Product Range | - |
Other details
| Brand | HARWIN |
| Part Number | S0941-46R |
| Quantity | Each |
| Drawing EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $0.15
-73%$0.15
$0.04Harwin S0941-46R S0941-46R Shield Clip RFI Micro Stainless Steel Surface Mount 4mm x 1mm Size
- SMT RFI shield clip for EMI/RFI shields, micro
- Micro size (3.6mm long, 1mm high), for shield thickness 0.135-0.16mm
- Tin finish on contact area and termination
- Recommended for use with S03-10100300, S03-15100300 or S03-30100300 shield cans
- Top entry
- Operating temperature range from -40°C to +85°C
- Vertical connector orientation
- Stainless steel base material of contact
- 3.9mm x 1.1mm x 1mm overall dimension (L x W x D)
Product details
| Clip Type | RFI Shield Clip |
| Clip Diameter | - |
| Mounting Hole Dia | - |
| Product Range | - |
Other details
| Brand | HARWIN |
| Part Number | S0941-46R |
| Quantity | Each |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
