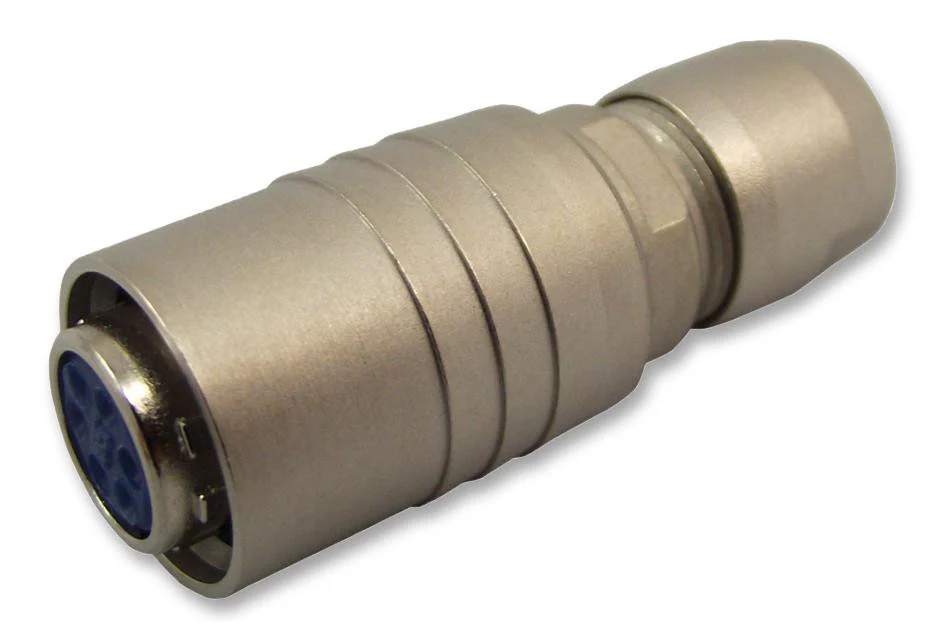

HIROSE(HRS) HR10-10P-12S(73) Circular Connector, HR10 Series, Cable Mount Plug, 12 Contacts, Solder Socket
HIROSE(HRS) HR10-10P-12S(73) Circular Connector, HR10 Series, Cable Mount Plug, 12 Contacts, Solder Socket
The HR10-10P-12S(73) is a 12-position female high performance miniature Circular Connector with polyamide resin and PBT resin insulator, gold plated copper alloy contacts. The HR10 series socket has through hole mounting style, straight connector orientation, soldering wire termination method and push-pull locking style. Although small in size, full featured with a well integrated design. Easy to operate, the single-action push-pull lock structure allows for quick and efficient locking and unlocking. It is recommended for use with 26AWG wire.
- Simple, yet highly reliable design for compact, high density applications
- Extremely easy mating/unmating operations
- 7mm Cable outer diameter
- 2A Rated current
- 100VAC, 140VDC Rated voltage
- 10mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- 300VAC for one minute Withstanding voltage
- 1000 Mating/unmating cycles
Applications
Industrial
Product details
| Connector Body Plating | - |
| No. of Contacts | 12Contacts |
| Contact Plating | Gold |
| Coupling Style | - |
| Circular Connector Shell Style | Cable Mount Plug |
| Product Range | HR10 Series |
| Contact Material | - |
| Circular Contact Type | Solder Socket |
| Connector Body Material | Brass Zinc Alloy Body |
Other details
| Brand | HIROSE(HRS) |
| Part Number | HR10-10P-12S(73) |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
