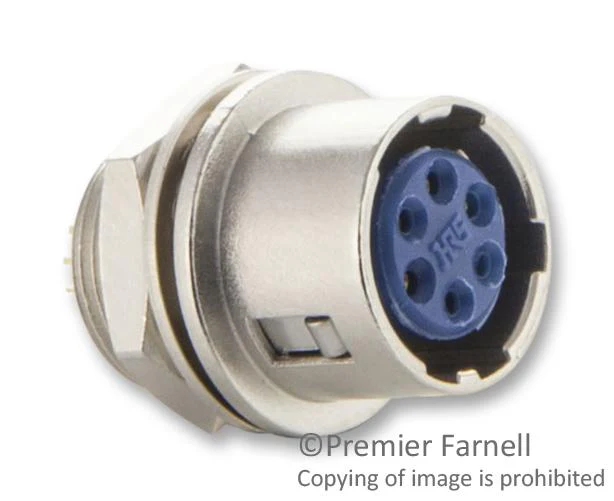

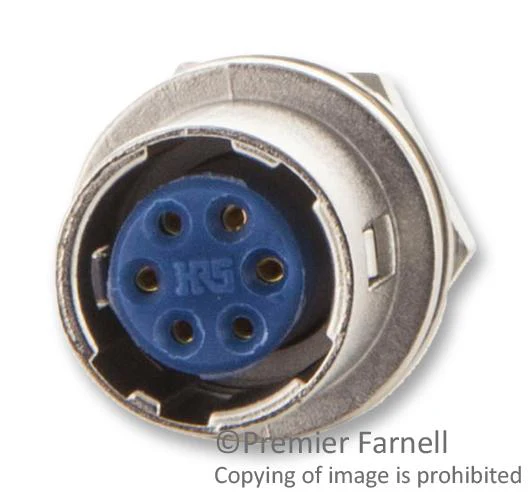

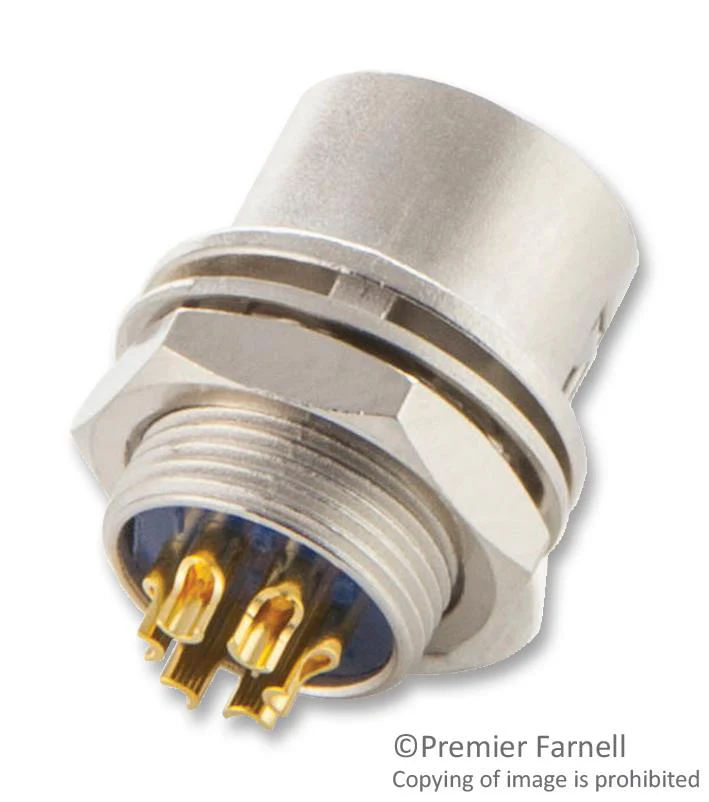

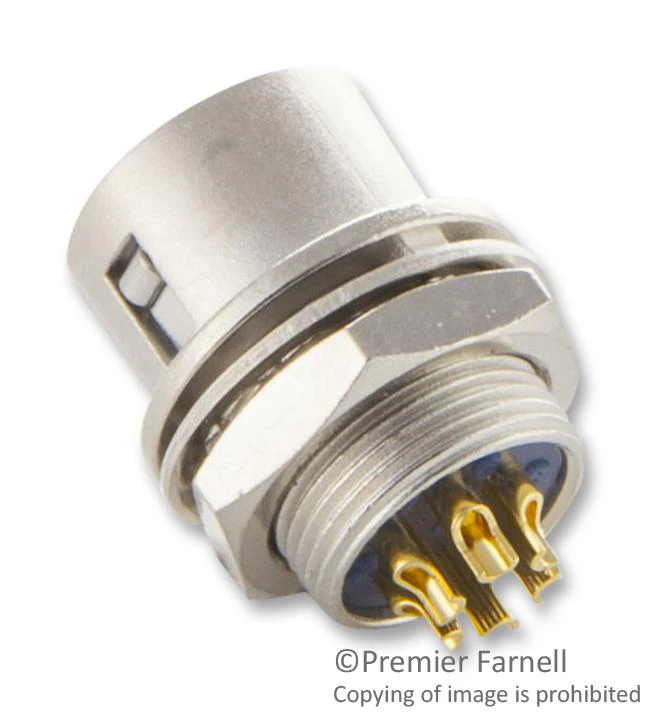

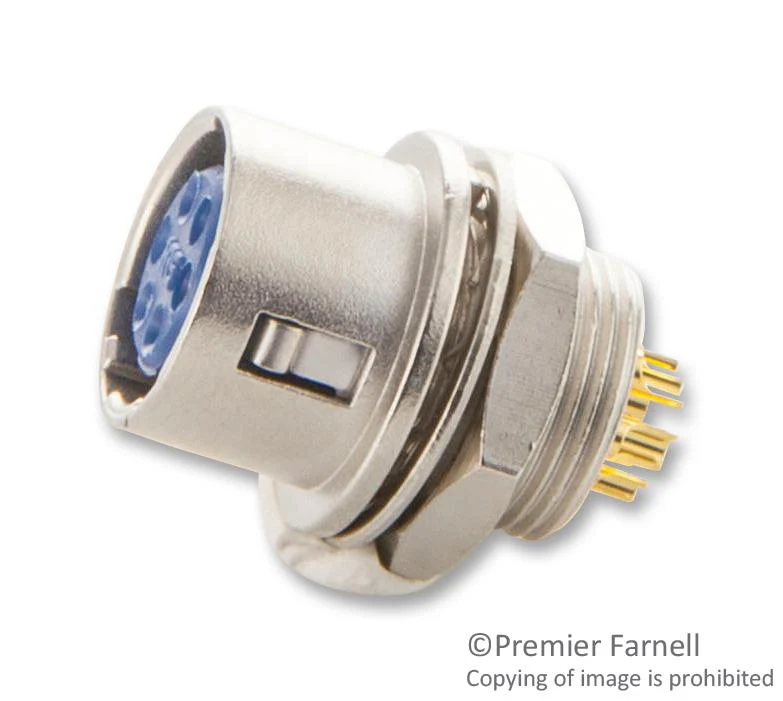

HIROSE(HRS) HR10-7R-6S(73) HR10-7R-6S(73) Circular Connector HR10 Series Panel Mount Receptacle 6 Contacts Solder Socket

The HR10-7R-6S(73) is a 6-position female high performance miniature Circular Connector with polyamide resin and PBT resin insulator, gold plated copper alloy contacts. The HR10 series receptacle has through hole mounting style, straight connector orientation, soldering wire termination method and push-pull locking style. It is recommended for use with 26AWG wire. Although small in size, full featured with a well integrated design. Easy to operate, the single-action push-pull lock structure allows for quick and efficient locking and unlocking.

• Simple, yet highly reliable design for compact, high density applications
• Extremely easy mating/unmating operations
• 2A Rated current
• 100VAC, 140VDC Rated voltage
• 10mR Maximum contact resistance
• 1000MR Minimum insulation resistance
• 300VAC Maximum withstanding voltage
• 1000 Mating/unmating cycles

Applications

Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	HIROSE(HRS)
Part Number	HR10-7R-6S(73)
Quantity	Each
Technical Data Sheet EN
Drawing EN
CAD Multiple Formats EN
