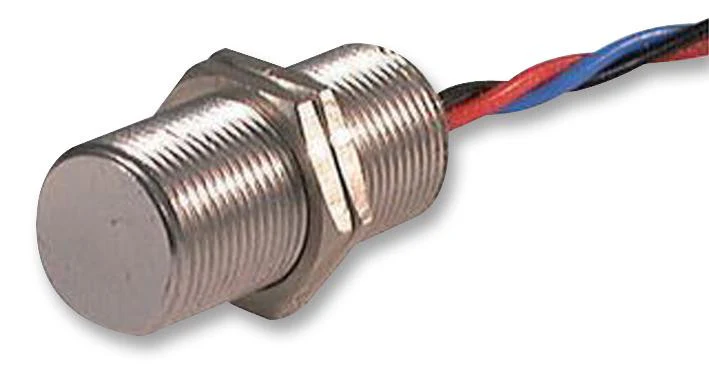

HONEYWELL 103SR13A-1 Hall Effect Sensor, Position, 103SR Series, Sink Output, 400 mV out, Cylindrical, 4.5 to 24 Vdc
HONEYWELL 103SR13A-1 Hall Effect Sensor, Position, 103SR Series, Sink Output, 400 mV out, Cylindrical, 4.5 to 24 Vdc
The 103SR13A-1 is an unipolar hall-effect digital Position Sensor with 15/32-32 UNS-2A cylindrical aluminium threaded housing and 152mm (6-inch) 24-gauge stranded lead wires, irradiated polyethylene insulated termination. Meet NEMA 3, 3R, 3S, 4, 4X (stainless-steel housing), 12 and 13 requirements. They respond to the magnetic field from permanent magnets or electromagnets. This rugged non-contact sensing product use versatile, reliable Hall-effect sensor ICs that are operated by a magnetic field and are designed to respond to alternating North and South Poles or to South Pole only. The hall-effect position sensor includes latching and linear magnetic types. The standard open-collector sinking output (digital devices) or push-pull output (linear device) of the hall-effect position sensor can be easily interfaced with common electronic circuitry such as microprocessors, integrated logic, discrete transistors and SCRs with compatible voltage specifications.
- Solid state reliability
- Adjustable mounting
- -40 to 100°C operating temperature
- 0.4VDC maximum (operated) output voltage
- 10mA (maximum at 25°C) supply current
- 20mA maximum output current
- 20µA leakage current
- Static sensitive
Applications
Industrial, Logistics, Medical, Robotics, Motor Drive & Control
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Output Voltage Min | 400mV |
| Switching Speed | 1.5µs |
| Sensor Housing | Cylindrical |
| Sensor Terminals | Wire Leads |
| Supply Voltage DC Max | 24V |
| Output Configuration | Sink |
| Product Range | 103SR Series |
| Supply Voltage DC Min | 4.5V |
Other details
| Brand | HONEYWELL |
| Part Number | 103SR13A-1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$62.15
