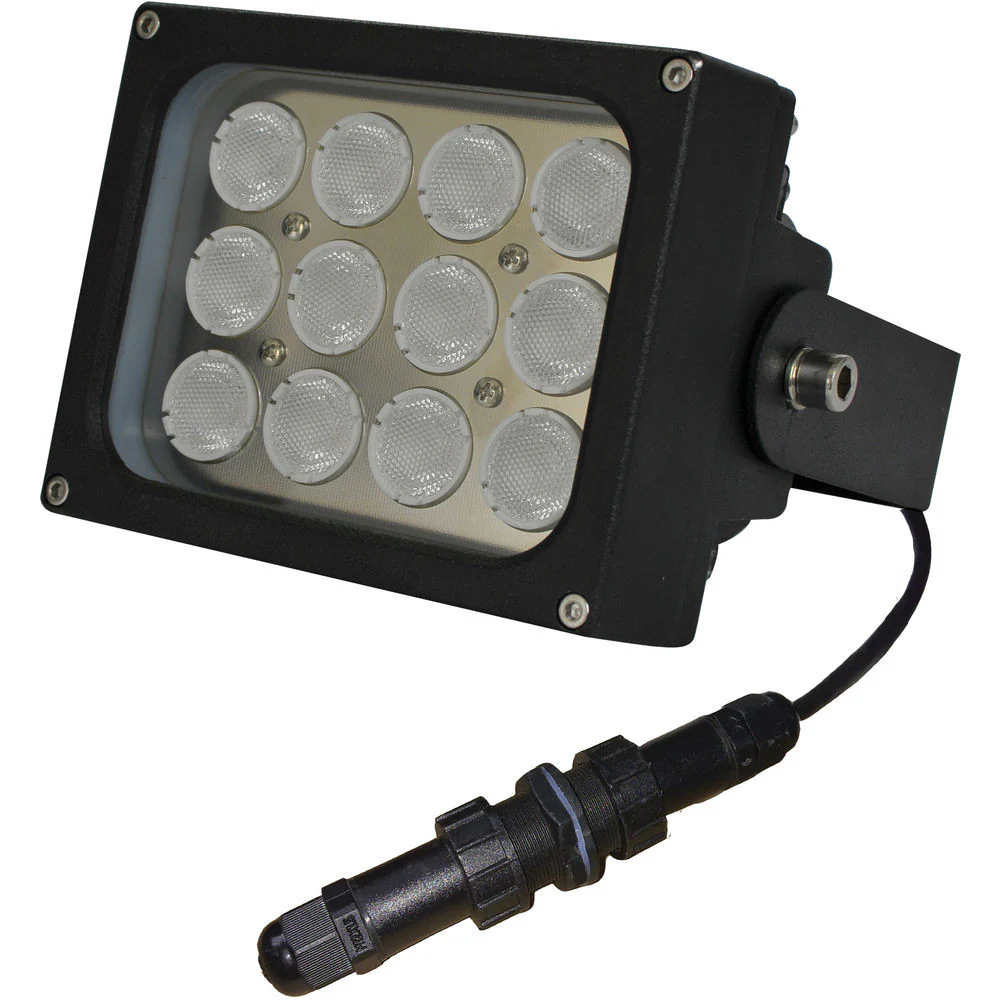

Iluminar WLC150-PoE Series Medium-Range White Light Illuminator (150', 15°, Black)
The black powder coated WLC150-PoE Series Medium-Range White Light Illuminator from Iluminar is designed to provide visible lighting for color network cameras via PoE (Power over Ethernet)-enabled network infrastructure. It employs 12 SMT (Surface Mount Technology) white LEDs that provide illumination up to 150' (45m). This IP66-rated illuminator is vandal-resistant and can be installed both indoors and outdoors. Its die-cast aluminum housing and tempered glass panel provide protection from harsh weather conditions and rapid temperature variations ranging from -40 to 122�F (-40 to 50�C). The illuminator features dual power input (12 VDC or 24 VAC) and automatic light on/off via built-in photocell.
- Medium-range white light illuminator for color CCTV cameras
- Illumination distance up to 150' (45m) and illumination angle of 15�
- PoE+ powered (IEEE802.3at compliant)
- IP66-rated weatherproof
- Automatic light on/off via built-in photocell
- Even illumination
- Black powder coated stainless steel wall mount
- M6 Allen Key
- Limited 2-Year Warranty
| White LEDs | |
|---|---|
| Number of LEDs | 12 |
| Type | SMT (Surface Mount Technology) white LEDs |
| Color Temperature | 6000 K |
| Luminous Flux | 1440 lumens |
| Illumination Angle | 15� |
| Illumination Distance | Up to 150' (45 m) Tested using Sony 1/3" CCD camera with 0.01 lux. Distance may vary due to camera and lens specifications. |
| Electrical | |
|---|---|
| Input Voltage | High Power over Ethernet (PoE+); IEEE.802.3at standard |
| Power Consumption | 24 W |
| Certifications | |
|---|---|
| Safety | Electrical Safety: EN60598:2004 Laser Eye Safety EN60825-1 |
| IP Rating | IP66 in accordance with EN60529:1992 |
| EMC | EN61000, FCC part 15.107, 15.108 class B |
| Others | WEEE 202/96/EC, RoHS 202/95/EC |
| General | |
|---|---|
| Construction | Die-cast aluminum |
| Front Window | Tempered glass panel |
| Power Input Connection | IP66 rated RJ45 jack and CAT5e cable |
| Mount | Stainless steel wall mount adjustable via M6 Allen key (included) |
| Temperature | -40 to 122�F (-40 to 50�C) |
| Dimensions | 5.4 x 4.4 x 3.5" (13.7 x 11.1 x 8.9 cm) |
| Weight | 2.9 lb (1.3 kg) |
