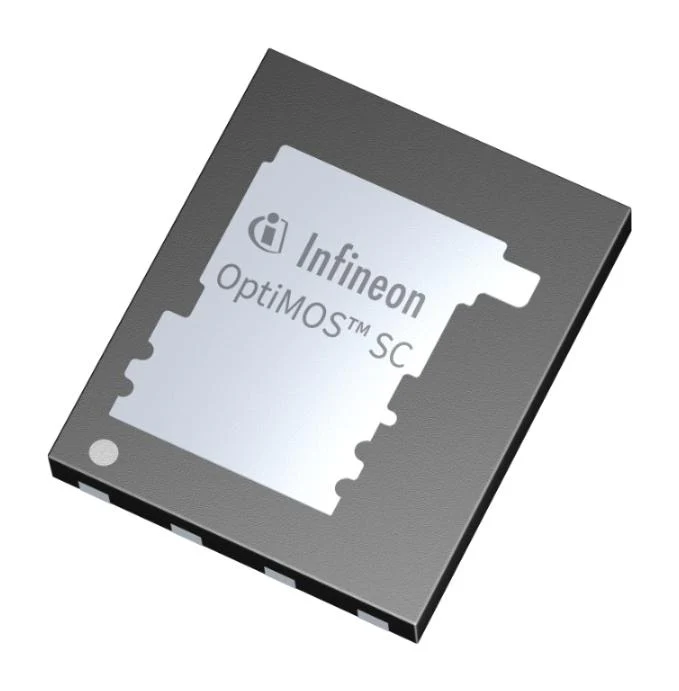

INFINEON BSC009N04LSSCATMA1 Power MOSFET, N Channel, 40 V, 301 A, 940 µohm, WSON, Surface Mount

INFINEON BSC009N04LSSCATMA1 Power MOSFET, N Channel, 40 V, 301 A, 940 µohm, WSON, Surface Mount

INFINEON BSC009N04LSSCATMA1 Power MOSFET, N Channel, 40 V, 301 A, 940 µohm, WSON, Surface Mount

Product details

Technical Specifications

Channel Type

N Channel

Continuous Drain Current Id

301A

Transistor Case Style

WSON

Rds(on) Test Voltage

10V

Power Dissipation

167W

Operating Temperature Max

175°C

Qualification

-

Drain Source Voltage Vds

40V

Drain Source On State Resistance

940µohm

Transistor Mounting

Surface Mount

Gate Source Threshold Voltage Max

2V

No. of Pins

8Pins

Product Range

OptiMOS Series

SVHC

No SVHC (21-Jan-2025)

Other details

Brand	INFINEON
Part Number	BSC009N04LSSCATMA1
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

$5.41

INFINEON BSC009N04LSSCATMA1 Power MOSFET, N Channel, 40 V, 301 A, 940 µohm, WSON, Surface Mount—

$5.41

More Images

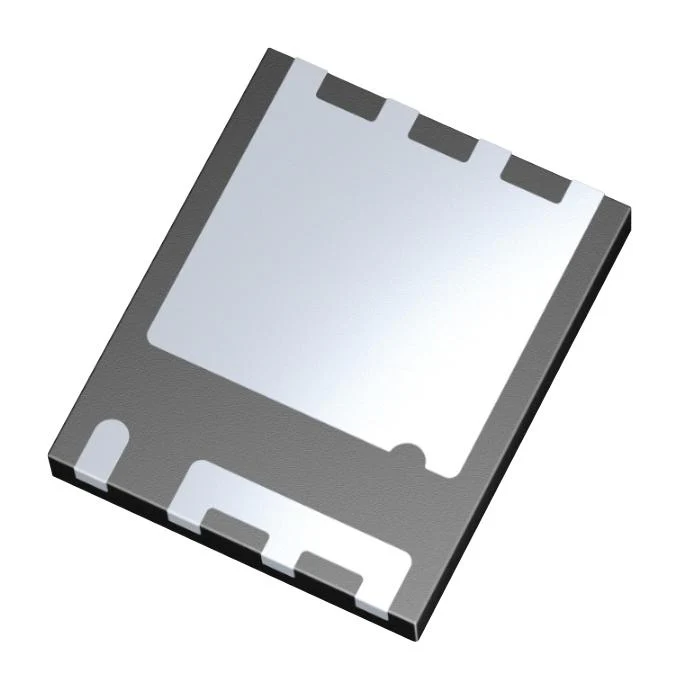

INFINEON BSC009N04LSSCATMA1 Power MOSFET, N Channel, 40 V, 301 A, 940 µohm, WSON, Surface Mount - Image 2
