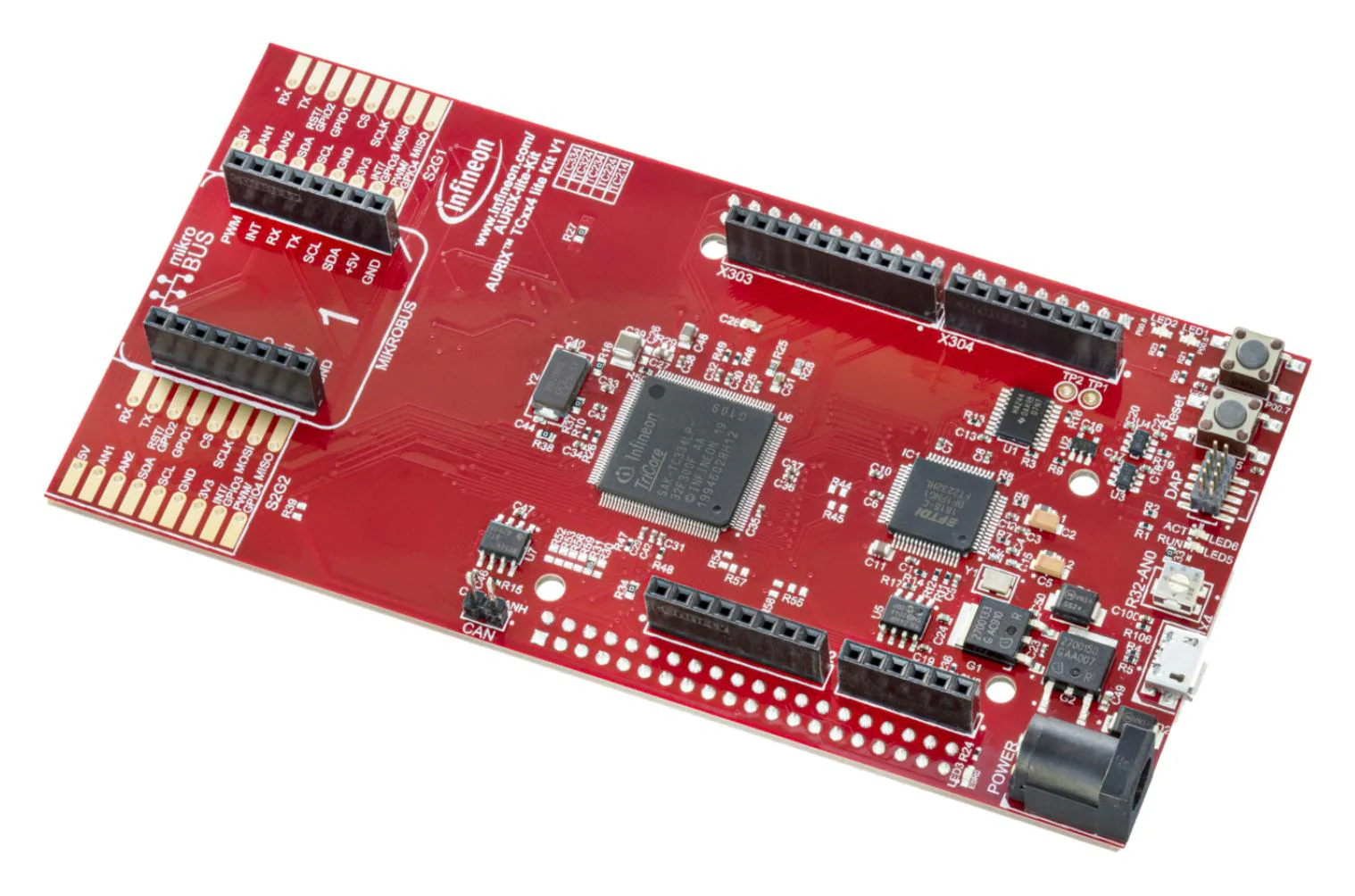

Infineon KITA2GTC334LITETOBO1 Evaluation Board Lite Kit TC334 32bit Aurix Family Tricore
KITA2GTC334LITETOBO1 is a AURIX� TCxx4 lite kit equipped with a 32bit single-chip AURIX TriCore based-microcontroller AURIX TC334. It can be used with a range of development tools including AURIXTM Development Studio, Infineon's free of charge Eclipse-based IDE or the Eclipse-based "FreeEntryToolchain" from Hightec/PLS/Infineon.
- On-board miniWiggler Micro-AB USB interface
- External powering 5V to 40 V (recommended 7 V4 V)
- Most AURIX� pins available on expansion connectors (X1, X2)
- Two Infineon Shield2Go connectors
- Arduino compatible connectors for 3.3V, mikroBUS� connector
- Micro-USB connector, DAP Debug connector, CAN connector
- CAN transceiver TLE9251VSJ from Infineon
- 1 user push-button, 3 user LEDs
- Reset push-button
- Potentiometer (10k0hm) for variable analogue input
Product details
| Silicon Manufacturer | Infineon |
| No. of Bits | 32bit |
| Silicon Family Name | AURIX |
| Core Architecture | TriCore |
| Core Sub-Architecture | - |
| Silicon Core Number | TC334 |
| Kit Contents | Lite Kit TC334 |
| Product Range | - |
Other details
| Brand | INFINEON |
| Part Number | KITA2GTC334LITETOBO1 |
| Quantity | Each |
| User Manual EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
