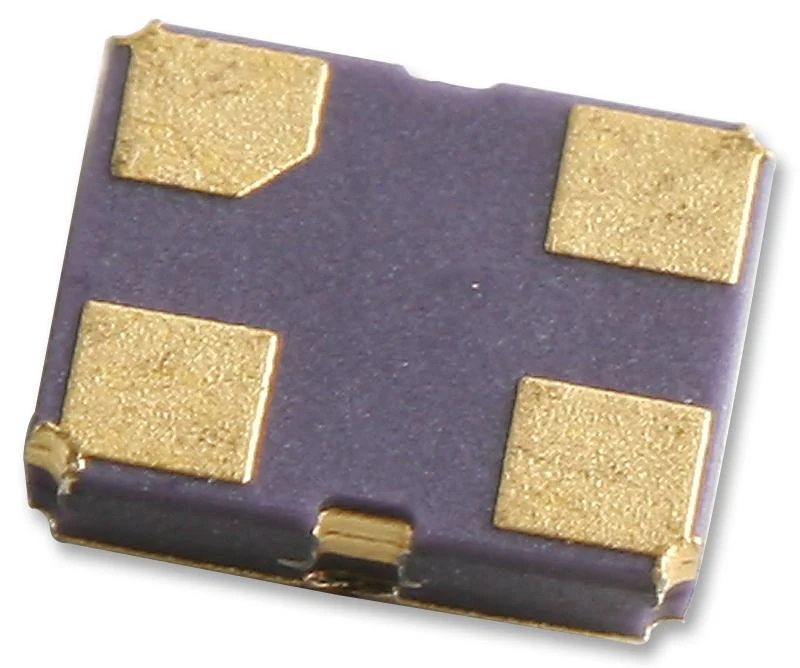

IQD Frequency Products LFSPXO025019 LFSPXO025019 Oscillator Crystal 32 MHz 50 ppm SMD 3.2mm x 2.5mm 3.3 V CFPS-39 Series

The CFPS-39IB 32.0MHZ is a 3.2 x 2.5mm 3.3V 50ppm Crystal Clock Oscillator with ceramic and a seam sealed metal lid, hermetically sealed. The CFPS-39 series oscillator with logic-1 to pad-1 enables oscillator output, logic-0 to pad-1 disables oscillator output, when disabled the oscillator output goes to the high impedance state. No connection to pad-1 enables oscillator output.

• CMOS output compatibility
• 15pF Maximum drive capability
• 5ns Rise and fall time
• 45 to 55% Duty cycle

Applications

Clock & Timing

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	IQD FREQUENCY PRODUCTS
Part Number	LFSPXO025019
Quantity	Each
Technical Data Sheet EN
