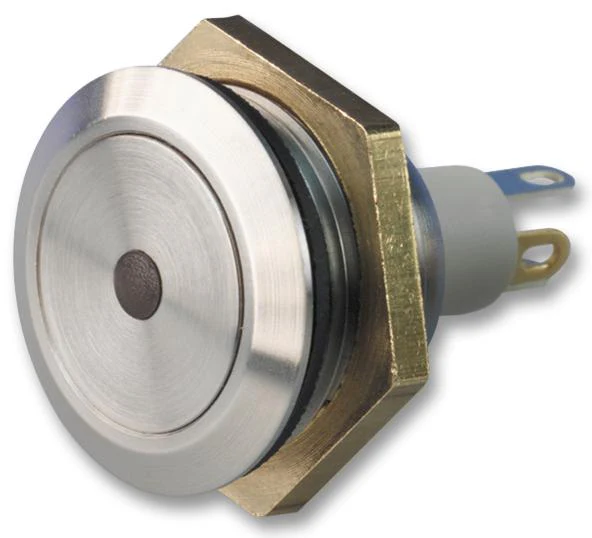

ITW Switches 76-5910G 76-5910G Vandal Resistant Switch 76-59 19.3 mm SPST-NO-DB Momentary Round Natural

The 76-5910G is a double-pole single-throw (DPST) 19mm green LED extra tough vandal resistant sealed Pushbutton Switch with solder terminals, gold plated contacts, flush button style and front panel mounting 15mm button. The 76-59 series of pushbutton switches are extremely rugged making them particularly suited to applications in which vandal resistance is a necessity. The switch body and buttons are machined from hard-wearing stainless steel and come in a front mounting style. The 76-59 series all provide momentary action and are based on our proven series 59 push buttons. Connections are made via the solder terminal at the rear of the switch. The 76-59 series mounts from the front into a 19.25 mm diameter panel cut out. Panel sealing is achieved by means of a sealer washer which is fitted to the switch body before it is inserted into the panel hole. The switch is then held in place by a lock-nut screwed on from the rear.

• Non-rotating button
• M19 Thread body diameter
• Wide temperature range from -30 to +105°C
• IP67 Protection rating (ingress, panel sealing)

Applications

Industrial, Automation & Process Control, Security, Medical

Other details

Brand	ITW SWITCHES
Part Number	76-5910G
Quantity	Each
Technical Data Sheet EN
