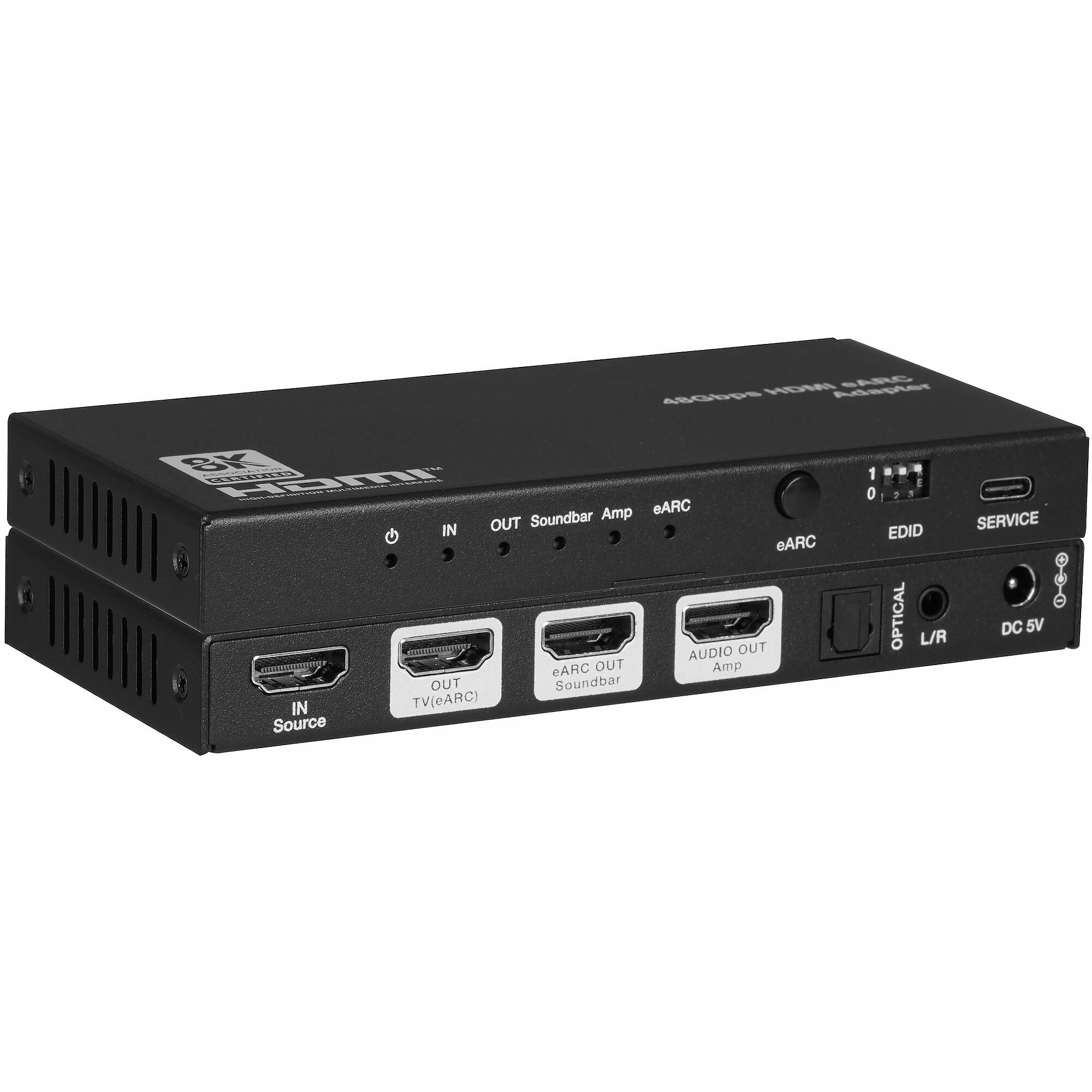

KanexPro HDMI 8K eARC Audio Adapter to Soundbar/TV/Amplifier
KanexPro AUD-EARC Overview
Use the HDMI 8K eARC Audio Adapter from KanexPro to extract audio from an HDMI source or TV with ARC/eARC for output to your audio amplifier, soundbar, and/or television. This adapter supports multiple audio formats, 8K60 video, HDMI 2.1, HDCP 2.3, EDID management, and CEC control.
Multiple Audio Formats
This adapter supports multiple audio formats for HDMI input and HDMI, eARC, and amplifier output:
- LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos
- DTS, DSD DTS-EX, DTS-96/24, DTS High Res
- DTS-HD Master Audio, DTS:X
UPC: 813982023895
Items Included
- KanexPro HDMI 8K eARC Audio Adapter to Soundbar/TV/Amplifier
- 5 VDC, 1A International Power Supply
- Limited 3-Year Manufacturer Warranty
Additional Resources
KanexPro AUD-EARC Specs
Inputs/Outputs
| USB I/O |
1 x USB-C Female Input
|
| Video I/O |
1x HDMI 2.1 Input
3x HDMI Output ( eARC Audio ) |
| Audio I/O |
1x TOSLINK S/PDIF Output
2x 1/8" / 3.5 mm Output |
| Media/Memory Card Slot |
Yes
|
| Internal Storage |
Yes
|
Power
| Power Source |
AC Adapter with Power Brick (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
5 VDC at 1 A
|
| Power Consumption |
5.2 W
|
Physical
| Color |
Black
|
| Material of Construction |
Metal
|
| Certifications |
CE, FCC, UL
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 20 to 90% Humidity
|
| Dimensions |
5.7 x 2.7 x 0.7" / 145 x 68 x 18 mm
|
| Weight |
9.2 oz / 262 g
|
Packaging Info
| Package Weight |
1.21 lb
|
| Box Dimensions (LxWxH) |
8.5 x 5.4 x 2.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
