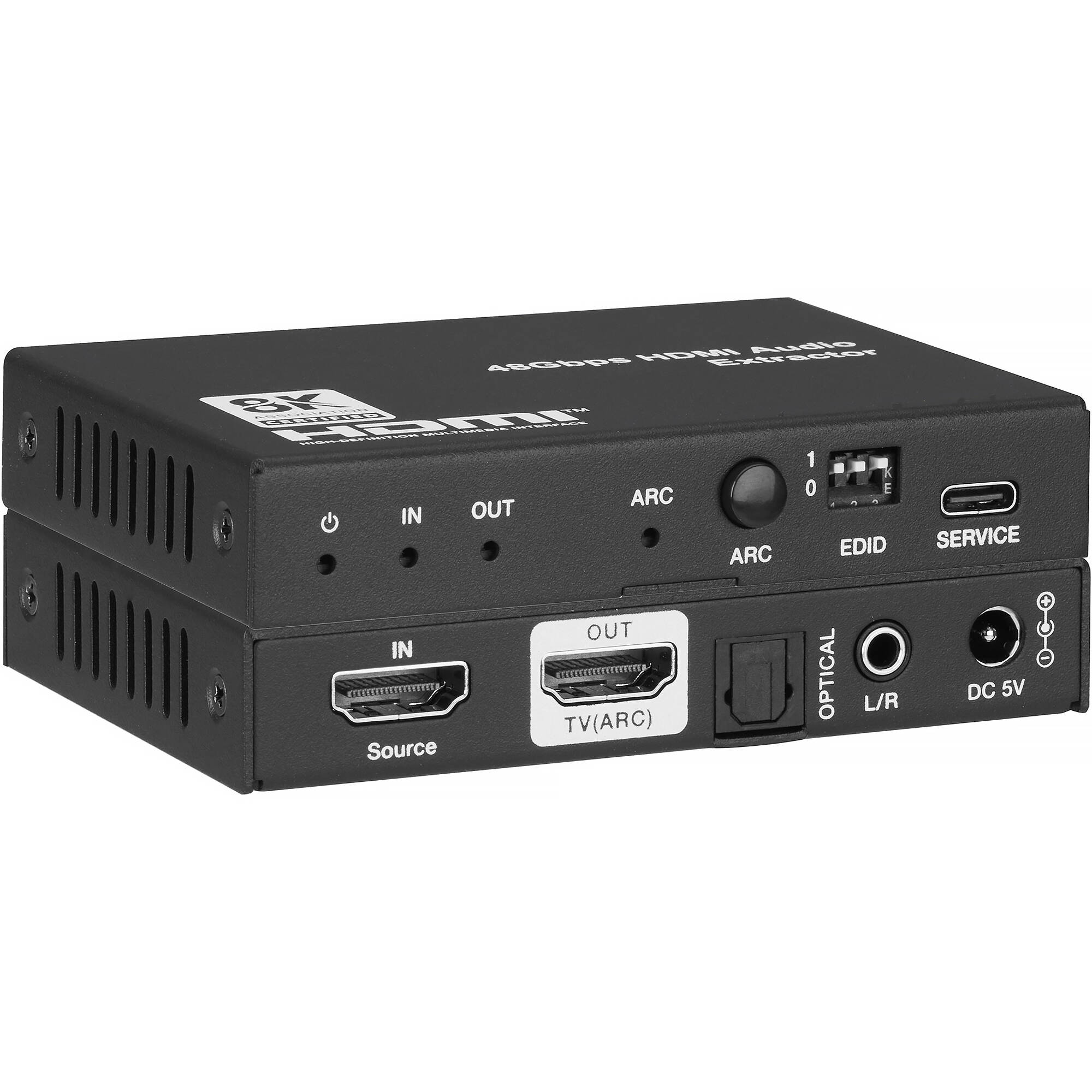

KanexPro HDMI UHD 8K Audio De-Embedder with ARC Output
KanexPro AUD-DEBED-8K Overview
The HDMI UHD 8K Audio De-Embedder with ARC Output from KanexPro lets you extract audio from an HDMI source or TV with ARC for output to your stereo or surround sound system. This adapter supports multiple audio formats, 8K60 video, HDMI 2.1, HDCP 2.3, EDID management, and CEC control.
Multiple Audio Formats
This adapter supports multiple audio formats for HDMI input and HDMI, ARC, and amplifier output:
- LPCM 7.1, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos
- Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res
- DTS-HD Master Audio
UPC: 813982023550
Items Included
- KanexPro HDMI UHD 8K Audio De-Embedder with ARC Output
- 5 VDC, 1A International Power Supply
- Limited 3-Year Manufacturer Warranty
Additional Resources
KanexPro AUD-DEBED-8K Specs
General
| Video Resolution |
Up to:
UHD 8K60 12-Bit, 4:2:0 UHD 4K120 12-Bit, 4:4:4 |
| Dynamic Range |
Dolby Vision
HDR10, HDR10+ HLG |
| Compliance |
HDCP 2.3
|
| Audio Format |
Dolby Atmos, Digital/EX/Plus, Dolby TrueHD
DTS, DTS-EX, DTS-96/24, DTS-HD High Resolution DTS-HD Master Audio, DSD LPCM 7.1 |
Inputs/Outputs
| Connector 1 |
1x HDMI 2.1 Input Female
1x USB-C Update Input Female |
| Connector 2 |
1x TV ARC HDMI 2.1 Output Female
1x Optical S/PDIF Output Female 2x 3.5mm Stereo TRS Output Female |
| Audio Outputs |
Optical Out: PCM 2.0 Ch, Dolby, DTS 5.1 Ch
Left/Right Out: PCM 2.0 Ch |
| Cable Length |
UHD 8K60: Ultra HDMI Cable: 2.1 6.6 to 9.8' / 2 to 3 m
UHD 4K60: HDMI 2.0 Cable: 33' / 10 m 1080p: HDMI Cable: 49' / 15 m |
| Maximum Power Consumption |
4 W
|
Physical
| Color |
Black
|
| Material of Construction |
Metal
|
| Certifications |
CE, FCC, UL
|
| Dimensions |
3.7 x 2.7 x 0.7" / 95 x 68 x 18 mm
|
| Weight |
6.3 oz / 178 g
|
Packaging Info
| Package Weight |
0.925 lb
|
| Box Dimensions (LxWxH) |
6.7 x 4.4 x 2.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
